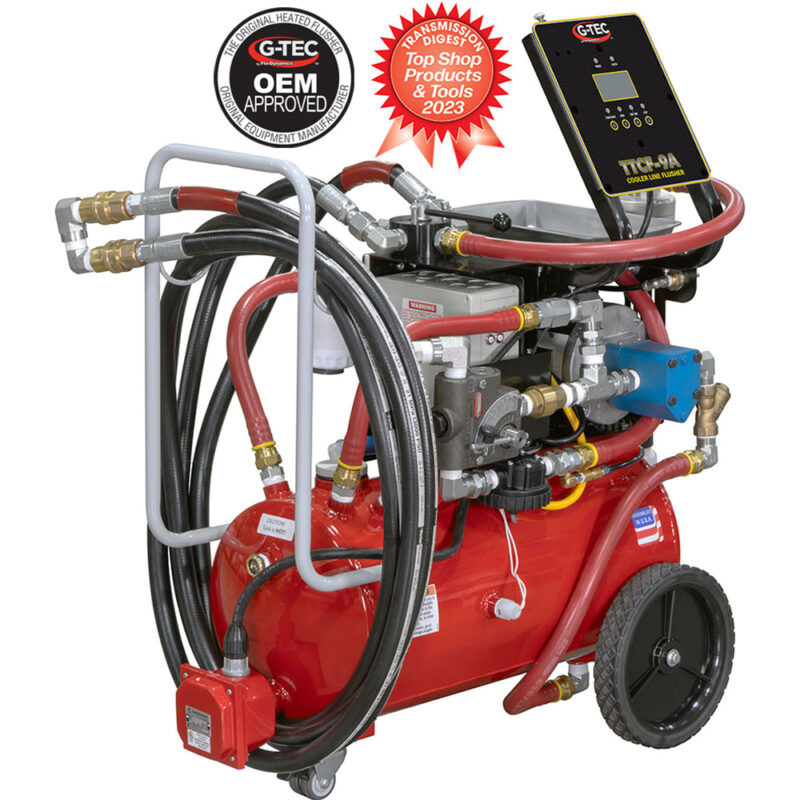

G-TEC TTCF-9A : Heavy Duty Heated Cooler Line Flusher w/ Variable Speed

Product Description

Key Product Features:

• Variable 1–8 GPM flow rate: Allows the technician to adjust fluid output for different component sizes and system requirements, including high-flow heavy-duty transmission cooling systems.
• Broad application range: Suitable for cleaning automotive transmission coolers and lines as well as compatible heavy-duty hydraulic systems and components.
• Heavy-duty 3/4 HP motor: Delivers the power needed to circulate fluid through larger cooling systems, long lines, and more restrictive hydraulic components.
• Heated flushing process: Uses heated system-compatible fluid to soften varnish, sludge, and hardened deposits so they can be circulated out of the connected component.
• Fast heating circulation mode: The manufacturer states that the system can heat fluid to its preset temperature of approximately 140°F in about 45 minutes under specified operating conditions.
• Uses system-compatible hydraulic fluid: The machine can use the same type of hydraulic or transmission fluid required by the system being cleaned, helping avoid incompatible cleaning chemicals.
• Preprogrammed flush cycles: Provides selectable automated cleaning programs that simplify setup and help technicians maintain consistent flushing procedures.
• Selectable 15-to-120-minute flush times: Allows the operator to choose an appropriate timed cycle based on system capacity, contamination level, and service requirements.
• Continuous flushing option: Supports extended operation when additional cleaning time is needed beyond the programmed cycles.
• Automatic cycle completion: Stops the machine and provides an alert when the selected flush cycle has ended.
• Flush-cycle results display: Provides operating information at the end of the cycle to help technicians document and evaluate the completed service.
• GPM-dependent air-injection patterns: Two automatically selected flushing patterns introduce an optimized amount of air based on the operating flow rate.
• Agitating air-scrub action: Controlled air injection increases turbulence inside cooler passages and hydraulic lines to help dislodge trapped debris and solidified varnish.
• Manual air purge: Allows technicians to force remaining fluid from the connected component and service hoses after flushing.
• Manual flow-reversing valve: Changes fluid direction without requiring the service hoses to be removed and reconnected.
• Bidirectional cleaning: Reversing the flow helps attack contamination from both directions and improves cleaning of restricted passages.
• 60-micron cleanable screen filter: The reusable filter screen captures visible debris and allows technicians to verify system cleanliness during or after the flush.
• T-handle filter access: Simplifies removal and inspection of the reusable screen filter.
• Dual magnetic spin-on filters: Two non-bypass replaceable filters help capture fine debris and metallic contamination circulating through the machine.
• Filter-usage timer: Displays the operating hours accumulated on the spin-on filters to support timely replacement and preventive maintenance.
• Flow monitoring: The control panel displays system flow so technicians can adjust pump speed and identify restricted cooling circuits or hydraulic components.
• Pressure monitoring: Displays system pressure during the flush, helping the operator identify restrictions and avoid unsuitable operating conditions.
• Temperature monitoring: Shows fluid temperature so the technician can confirm that the machine has reached an effective heated-cleaning range.
• Total-hours meter: Tracks cumulative machine operating time to support shop maintenance schedules and equipment-use records.
• Low-fluid safety sensor: Automatically shuts off the heater and pump when the reservoir fluid level becomes too low, helping protect major operating components.
• 10-gallon fluid capacity: Provides sufficient working-fluid volume for automotive and heavy-duty component flushing while maintaining a mobile shop footprint.
• Easy-to-read tank sight glass: Allows technicians to check reservoir fluid level without opening the tank.
• Heavy-duty 13-foot service hoses: Long 3/4-inch hoses provide the flow capacity and reach required for large vehicles and heavy-duty components.
• Dedicated electrical supply: Requires a dedicated 20-amp circuit or two separate 15-amp circuits, according to available product specifications.
• Manufacturer part number: 40400060.
• Professional applications: Ideal for heavy-duty truck service centers, transmission rebuilders, fleet maintenance operations, construction equipment facilities, agricultural equipment shops, hydraulic repair centers, and automotive dealerships.
