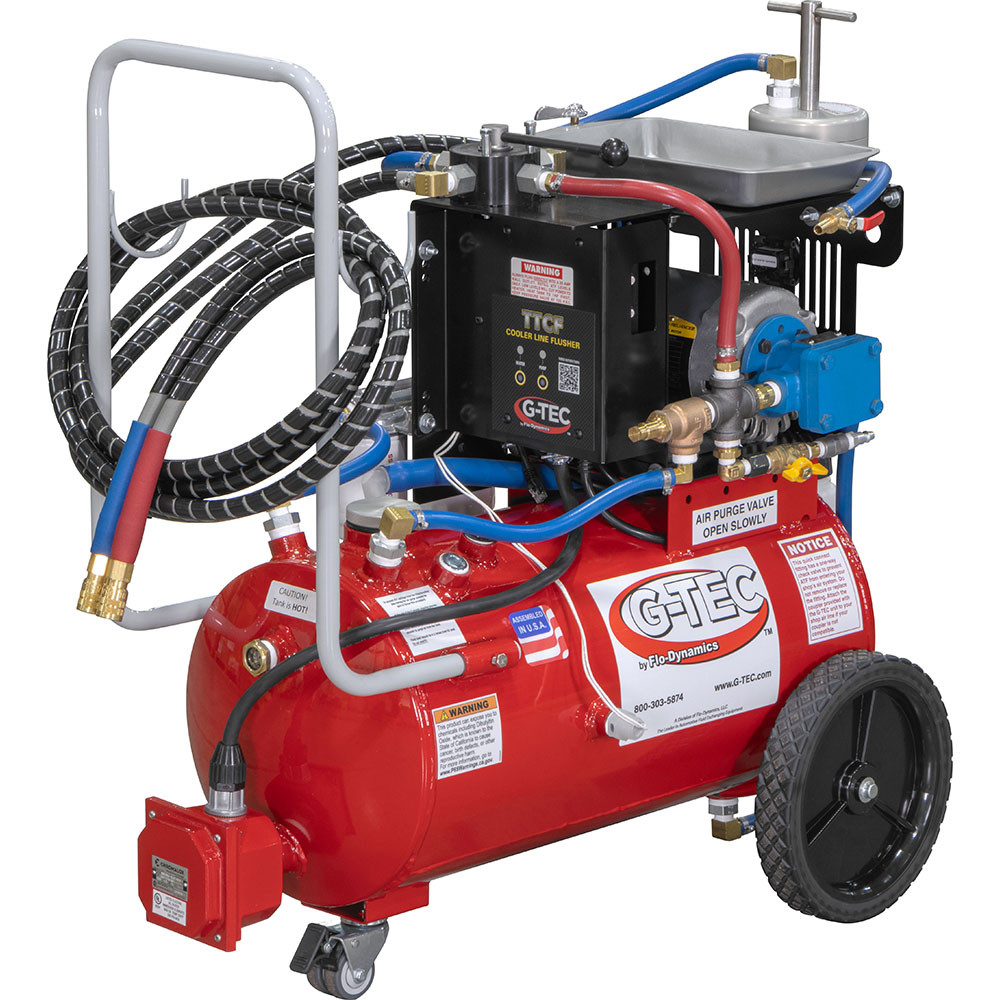

G-TEC TTCF-8 : Heated Flusher

Product Description

Key Product Features:

• Deluxe heated flushing system: Cleans transmission cooler lines, heat exchangers, and related components before the installation of a rebuilt or new transmission.
• Heated pulsating cleaning action: Combines heat and fluid pulsation to soften hardened ATF varnish and dislodge contamination trapped inside narrow cooler passages.
• Helps prevent repeat repairs: Removes residual debris that could contaminate and damage a replacement transmission after installation.
• Cleans multiple contaminant types: Helps remove metallic particles, clutch material, sludge, degraded fluid deposits, and waxy varnish from the transmission cooling system.
• 10-gallon all-steel tank: Provides durable fluid storage for professional transmission service and rebuilding environments.
• Immersion heating system: Heats the flushing fluid inside the reservoir to improve varnish removal and cooler-passage cleaning.
• Commercial-grade motor: Uses a heavy-duty motor designed for repeated operation in automotive and transmission service facilities.
• 1/3 HP motor: Provides dependable pump performance for professional cooler-line flushing applications.
• 1,750-pulse-per-minute pump: Produces pulsating fluid movement to agitate and remove contamination from the connected cooling circuit.
• 3.2 GPM flow rate: Delivers consistent fluid circulation through automotive transmission cooler systems.
• 5 GPM flowmeter: Allows technicians to observe fluid movement and evaluate whether the cooler or lines may be restricted.
• Manual flow-reversing valve: Reverses flushing direction without requiring the technician to disconnect and switch the service hoses.
• Bidirectional cooler flushing: Attacks debris from both directions to improve cleaning inside restricted passages and heat exchangers.
• Initial fluid purge valve: Removes the first amount of heavily contaminated fluid before it enters the main reservoir, helping extend filter and flushing-fluid life.
• Air purge system: Uses shop air to remove residual fluid from the cooler system and service hoses after the flush.
• Air-injection scrubbing: Allows air to be introduced during cleaning for added agitation against difficult deposits.
• Cleanable screen filter: Includes a reusable screen filter with a T-handle that simplifies inspection and verification of system cleanliness. The current G-TEC catalog lists it as a 60-micron screen.
• Visual contaminant verification: The accessible screen filter lets technicians examine material removed from the transmission cooling circuit.
• Dual spin-on filters: Two non-bypass filters capture debris removed during the heated flushing process.
• Magnetically charged filtration: Helps capture metallic particles produced by internal transmission wear or component failure.
• Total-hours run meter: Tracks cumulative operating time to help shops plan filter changes, fluid replacement, and routine equipment maintenance.
• Temperature gauge: Allows technicians to monitor flushing-fluid temperature throughout the heating and cleaning process.
• Low-fluid heater protection: The G-TEC platform uses fluid-level protection to prevent heater operation when the reservoir level becomes too low.
• Eight-foot service hoses: Includes 5/8-inch hoses that provide practical reach between the machine and transmission cooler connections.
• Extensive included adapter coverage: Includes Domestic, Banjo, Honda, SDA, P1, P2, P3, P4, Honda/Acura Puck P6, and Audi/VW/Nissan adapter sets.
• Supports broad vehicle coverage: The included adapter assortment helps shops service many domestic, European, and Asian transmission cooler configurations.
• Additional optional adapters available: P5-series, P7, and RVW adapters are identified by the manufacturer as optional rather than standard TTCF-8 equipment.
• Integrated tool tray: Provides convenient storage for adapters, fittings, and frequently used service tools.
• Vent tower: Supports the machine’s air-purge and fluid-management functions.
• Protected pump and motor assembly: The enclosed design helps protect primary operating components and supports organized hose storage.
• Serviceable professional construction: Replaceable filters, hoses, fittings, heater components, and adapters support continued equipment operation.
• Routine maintenance guidance: Manufacturer instructions recommend replacing the spin-on filters approximately every 100 flushes and periodically replacing the flushing ATF based on condition and usage.
• Manufacturer part number: 40400038.
• Professional applications: Ideal for transmission rebuilders, automotive dealerships, independent repair facilities, fleet maintenance departments, remanufacturing operations, and technical training centers.
