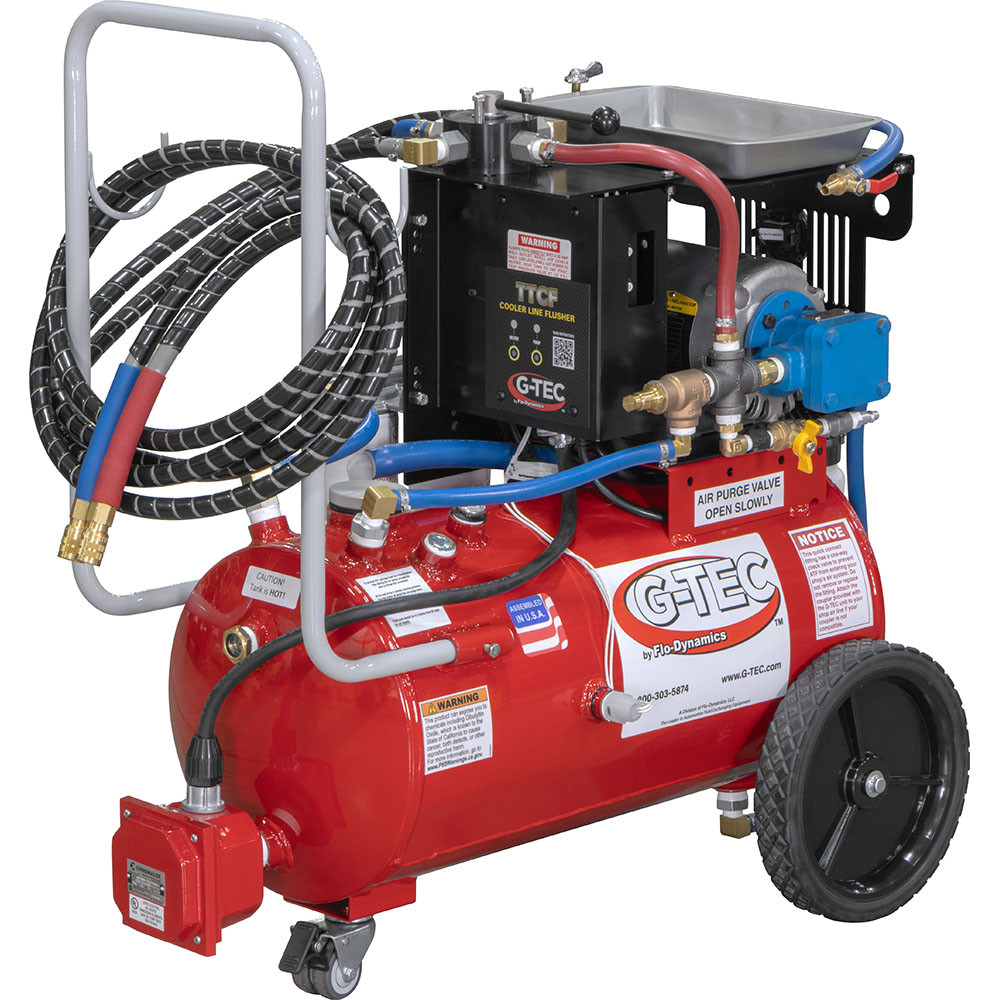

G-TEC TTCF-7AR : Heated Cooler Line Flusher (Premium)

Product Description

The G-TEC TTCF-7AR Premium Heated Cooler Line Flusher is designed to clean transmission cooler lines, heat exchangers, and related components before installing a rebuilt or replacement transmission. It circulates heated, pulsating automatic transmission fluid through the cooling system to melt waxy varnish from burnt ATF and purge metal particles, clutch material, and other contaminants that may contribute to repeat transmission failures.

Key Product Features:

• Professional heated cooler-line cleaning: Uses heated ATF to loosen varnish, sludge, clutch material, metal particles, and contamination trapped inside transmission cooler circuits.
• Helps protect replacement transmissions: Cleans cooler lines and the heat exchanger before transmission installation, reducing the risk of old contamination entering a new or rebuilt unit.
• Heated pulsating flush action: Combines elevated fluid temperature with pulsating circulation to help dislodge contamination from narrow cooler passages and connecting lines.
• 10-gallon all-steel tank: Provides durable fluid storage in a low-profile, powder-coated reservoir built for regular professional use.
• Immersion heating system: Heats the flushing fluid directly inside the reservoir so the system can reach an effective cleaning temperature.
• Automatic 1,500-watt heater control: Maintains the flushing fluid at a suitable operating temperature for transmission cooling-system cleaning.
• Temperature monitoring gauge: A dedicated gauge allows technicians to monitor fluid temperature before and during the cleaning process.
• Low-fluid heater protection: A float switch cuts power to the heater when fluid drops below a safe level and activates a red warning indicator.
• Recommended heated operation: Manufacturer instructions specify that the fluid should reach approximately 150°F to 160°F before the flushing motor is engaged.
• Pulsating commercial-grade pump: Uses a 1,750-pulse-per-minute pump system to agitate contamination and circulate heated fluid through the cooler assembly.
• Heavy-duty pump motor: Equipped with a commercial-grade motor designed for demanding transmission service applications. Current manufacturer specifications list a 1/3 HP service factor.
• Pressure-relief protection: The pump assembly incorporates a relief valve to help protect the motor, pump, hoses, and connected components from excessive pressure.
• 5 GPM flowmeter: Displays fluid flow through the connected cooler system, helping technicians identify restrictions, blockages, or insufficient circulation.
• Manual reversing valve: Allows the operator to reverse the direction of fluid flow without removing and reconnecting the service hoses.
• Bidirectional flushing: Alternating the flow direction helps attack contamination from both sides of the cooler passages for more complete cleaning.
• Air purge system: Uses shop air to clear fluid and loosen debris from the cooler system and service hoses.
• Additional air scrubbing: Short air injections can be introduced during flushing to increase agitation and help remove stubborn contamination.
• Post-flush line clearing: The air purge feature helps remove residual fluid and dry the cooler lines after the cleaning procedure.
• Initial fluid purge valve: Allows technicians to purge the connected system before the main flush, helping extend the service life of the filters and fluid inside the machine.
• Dual spin-on filtration: Two replaceable spin-on filters capture particles and contaminants removed from the transmission cooling circuit.
• Magnetic non-bypass filtration: Magnetic spin-on filters help capture metallic debris while preventing contaminated fluid from bypassing the filter media.
• Eight-foot service hoses: Two long hoses with quick-disconnect fittings provide convenient access to vehicle cooler-line connections.
• Expanded adapter coverage: Includes Domestic, Banjo, and Honda adapter sets for broader transmission cooler-line compatibility.
• Integrated tool tray: Keeps adapters, fittings, and frequently used service tools organized and within easy reach.
• Vent tower: Supports the air purge and fluid-management system while helping technicians complete controlled flushing procedures.
• Pump and motor shroud: Protects major operating components while helping reduce noise and providing convenient hose storage.
• Sealed operating switches: Heavy-duty switches with green indicator lights provide clear operating status in professional shop environments.
• Large tank drain: A one-inch drain plug supports faster tank draining and easier reservoir cleaning.
• Mobile shop design: Semi-pneumatic rubber wheels and an extended handle make the unit easier to position near vehicles and move between service bays.
• 110V AC operation: Requires a 110V AC, 20-amp electrical supply.
• Machine dimensions: Approximately 30.75 inches long, 16.5 inches wide, and 33.5 inches high.
• Machine weight: Approximately 130 pounds.
• Manufacturer part number: 40400037.
• Professional applications: Ideal for transmission rebuilders, automotive dealerships, fleet maintenance departments, independent repair facilities, remanufacturing shops, and vocational training centers.
