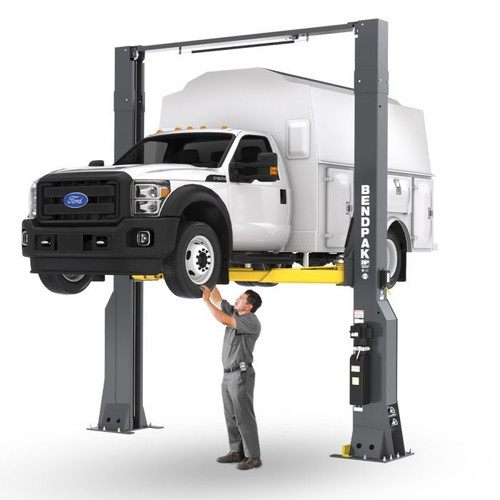

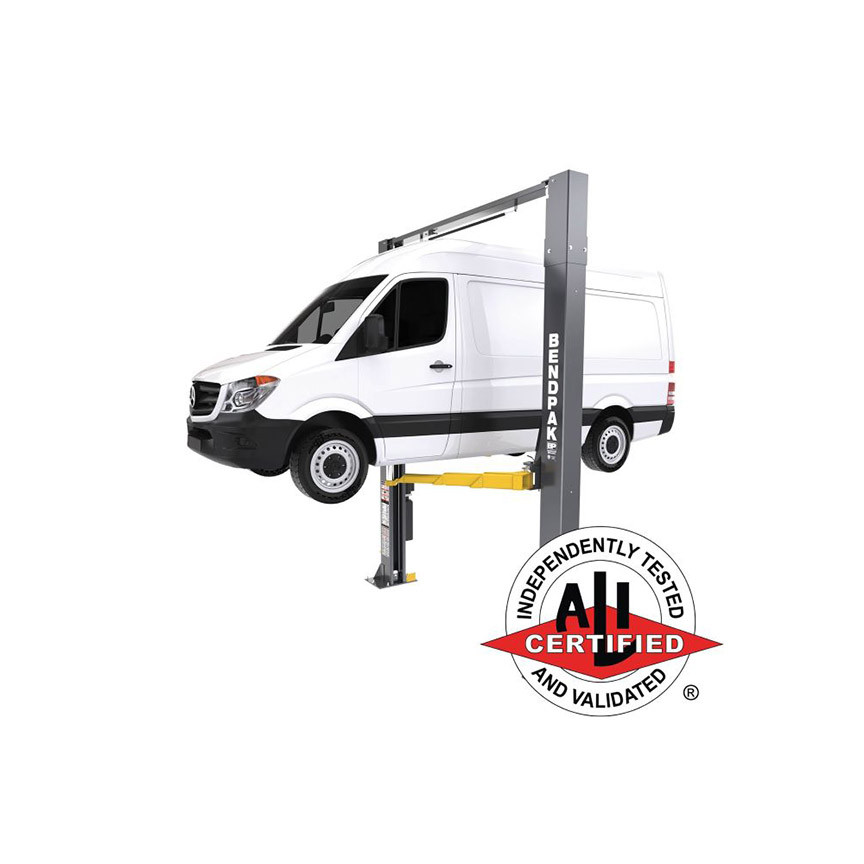

Model 12APX-192
SKU
5175557
Max. Lifting capacity
12,000 lbs. / 5,443 kg
A – Max. Rise
75.75 in. / 1,922 mm
B – Lifting Height w/Pad down
78.50 in. / 1,992.3 mm
C – Max. Lifting Height w/ Pad up
82.5 in. / 2,095 mm
D – Min. Height w/ Pad
4 in. / 101.2 mm
E – Overall Height
193 in. / 4,904 mm
F – Overall Width
156 in. / 3,959 mm
G – Width, Outside Posts
143 in. / 3,238 mm
H – Width, Inside Posts
120 in. / 3,047 mm
I – Width, Drive-Thru
103 in. / 2,616 mm
J – Floor to Top Switch
186.50 in. / 4,738.5 mm
K – Front Arm Reach (min)
55.25 in. / 1,404.2 mm (max)
L – Rear Arm Reach
60 in. / 1,524.4 mm (max)
Max. load per Lift Arm
3,000 lbs. / 1,361 kg
Pad Adapters Total Height
7.50 in. / 188 mm
Time to Full Rise
≈ 45 seconds
Motor
220 VAC, 60 Hz, 1 Phase
Sound
<70 dB
Specifications
Capacity 12000
Style Clearfloor
Design 2-Post Lift
Colors Gray
Overall Height 193"
Overall Width 156"
Inside Columns 120"
Country of Origin Asia
Configuration Symmetric
