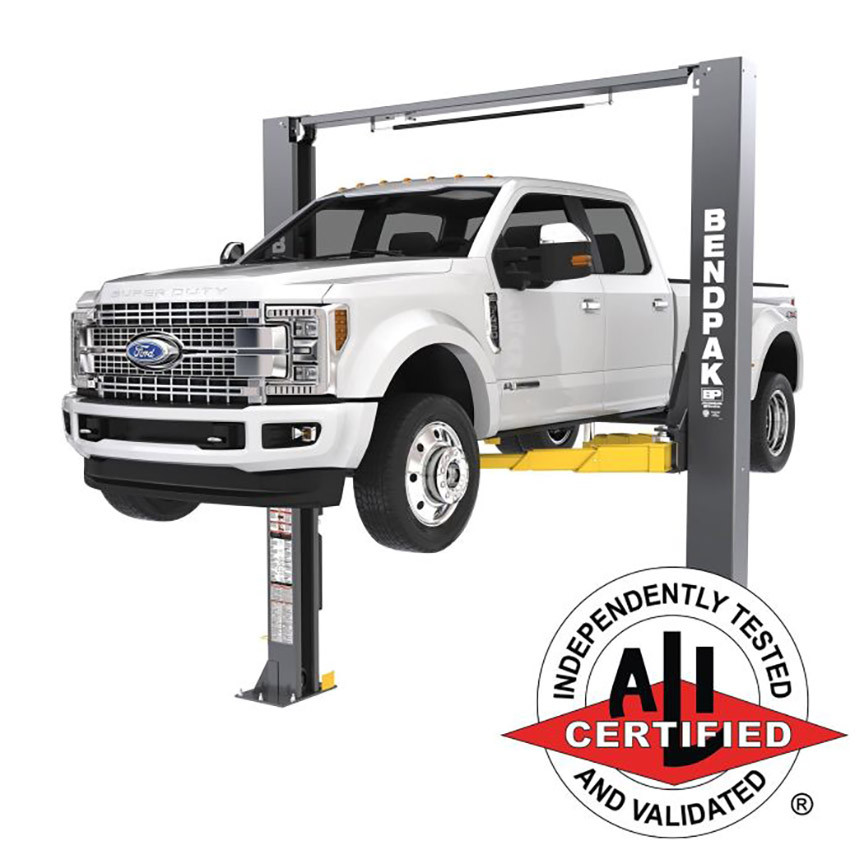

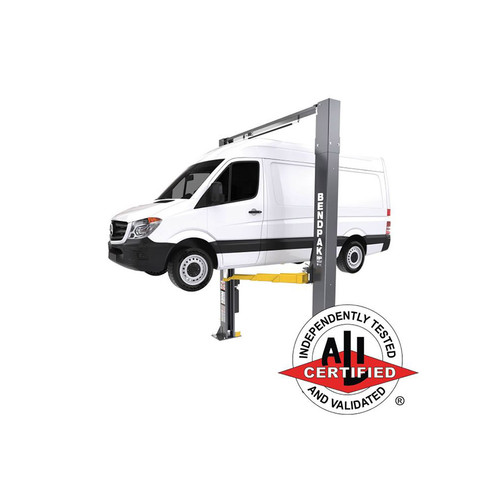

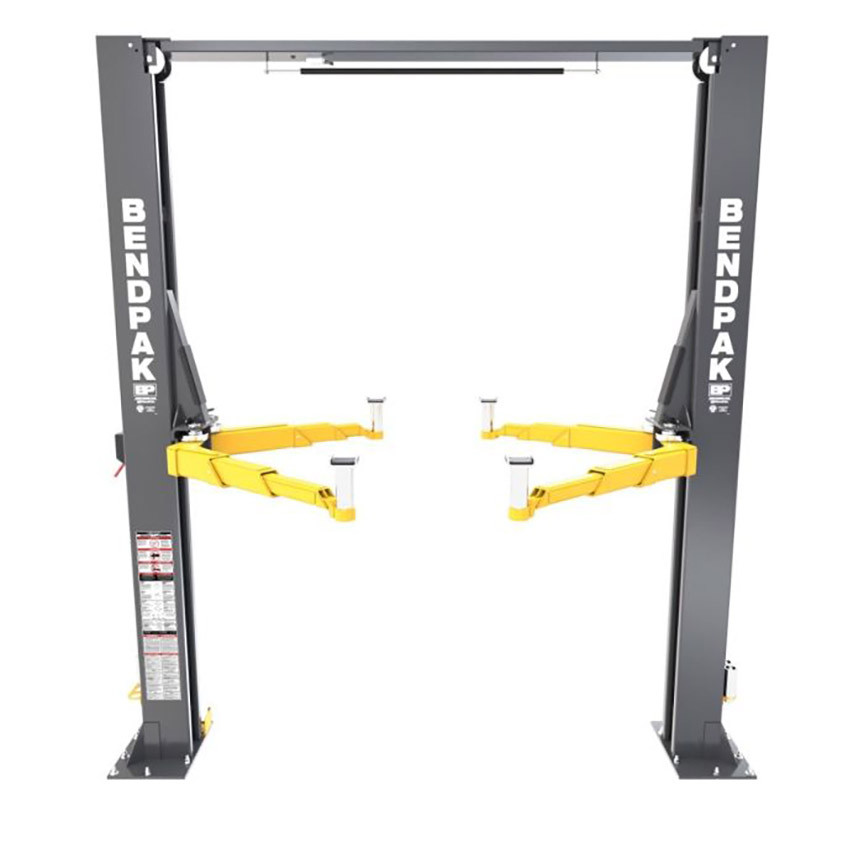

Model 12APX
Lifting Capacity
12,000 lbs. / 5,443 kg
Max. Capacity — Front Axle
6,000 lbs. / 2,722 kg
Max. Capacity — Rear Axle
6,000 lbs. / 2,722 kg
Max. Load per Lift Arm
3,000 lbs. / 2,268 kg
A – Max. Lifting Height w/ Pad (Top Lock)*
79.25 in. / 2,015 mm
B – Max. Lifting Height w/ Adapters**
87.75 in. / 2,229 mm
C – Max. Rise (No lock engaged)
76 in. / 1,932 mm
D – Min. Height w/ Pad
4.25 in. / 108 mm
E – Overall Height
169 in. / 4,294 mm
F – Width Overall
156 in. / 3,959 mm
G – Outside Posts
143 in. / 3,633 mm
H – Inside Posts
120 in. / 3,047 mm
I – Drive-Thru Width
103 in. / 2,619 mm
J – Floor to Top Switch
163.5 in. / 4,154 mm
K – Rear Arm Reach (min. – max.)***
29.25 in. – 60 in. / 745 mm – 1,524 mm
L – Front Arm Reach (min. – max.)***
26 in. – 55.25 in. / 660 mm – 1,404 mm
M – Base Plate Width
25 in. / 634 mm
Operating Pressure at Maximum Load
2,220 psi
Time to Full Rise
≈ 68 seconds
Motor****
230 VAC, 50/60 Hz, 1 Ph, 5 HP, approx. 19.5 Amps
Hydraulic Fluid Required
3.6 gallons / 13.6 Liters
Operating Temperature
41° to 104° F / 5° to 40°C
Sound Pressure
81 dB peak level
Specifications
Capacity 12000
Design Two-Post
Overall Height 169''
Overall Width 156''
Configuration Symmetric
