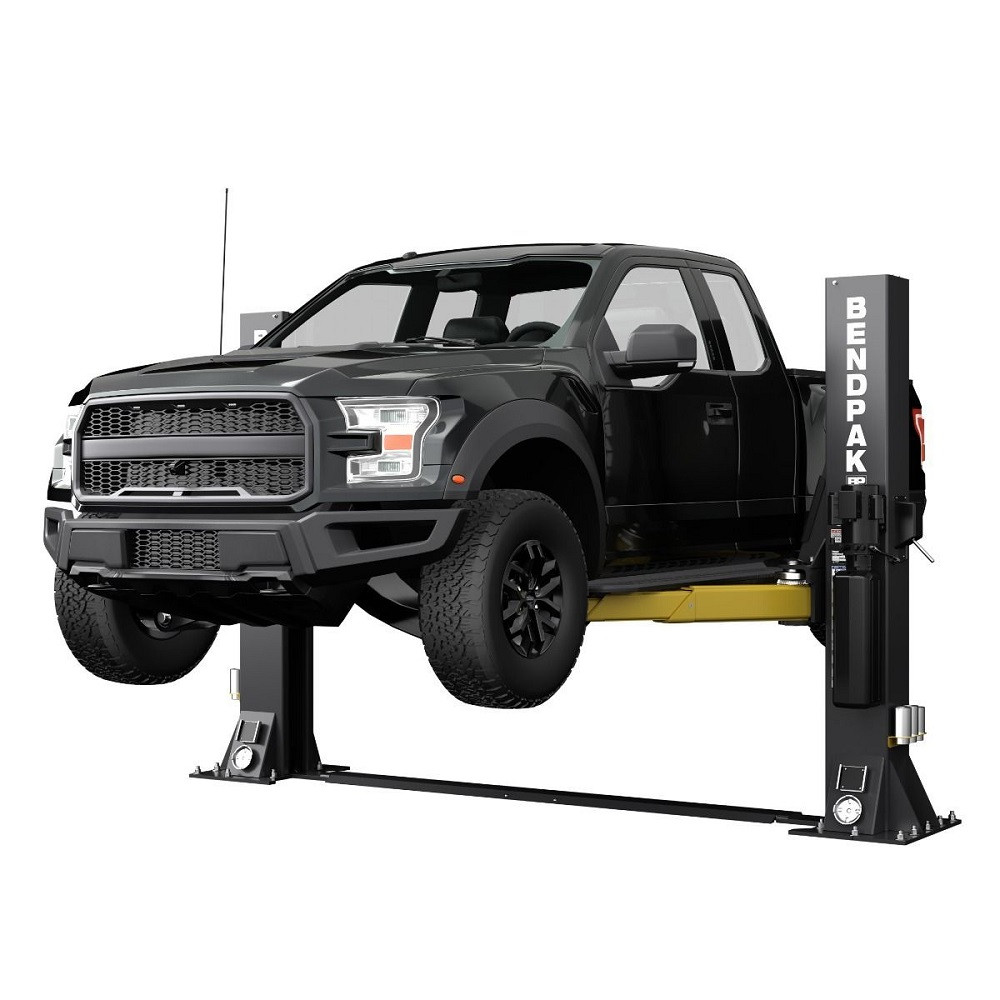

Capacity
Lifting Capacity
12,000 lbs. (5,443 kg)
Max Capacity / Front Axle
6,000 lbs. (2,721.5 kg)
Max Capacity / Rear Axle
6,000 lbs. (2,721.5 kg)
Maximum Capacity per Lift Arm
3,000 lbs. (1,360 kg)
Dimensions
A – Width Overall:
155 in. (3,937 mm)
B – Base Plate Width:
26.5 in. (674 mm)
C – Post Height:
93.5 in. (2,377 mm)
D – Drive-Thru:
102.25 in. (2,598 mm)
E – Inside Posts:
119 in. (3,026 mm)
F – Outside Posts:
142 in. (3,606 mm)
G – Minimum Height with Pad:
4.25 in. (105 mm)
H – Max. Lifting Height:
46 in. (1,168 mm)
I – Max. Rise:
42.75 in. (1,089 mm)
J – Min. Height with Adapters (5 in + 2.5 in):
11.75 in. (298 mm)
K – Floor Plate Height:
1.5 in. (36 mm)
L – Floor Plate Width:
9.5 in. (240 mm)

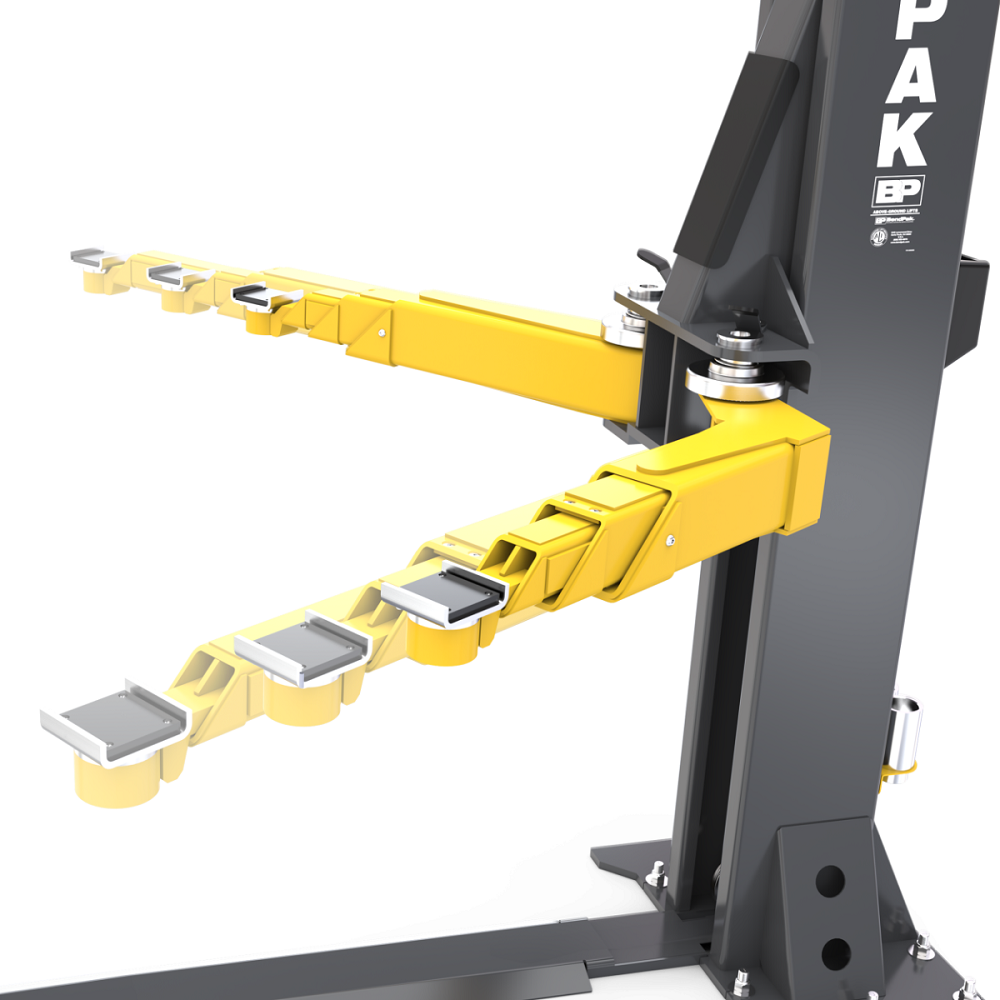

Arms & Pads
M – Front Arm Reach (Measured from the Lift Arm Pivot to the Cradle Pad Center Pin):
26 in. min – 55.25 in. max. (659 mm min. – 1,403 mm max.)
N – Rear Arm Reach (Measured from the Lift Arm Pivot to the Cradle Pad Center Pin):
29.25 in. min. – 60 in. max. (745 mm – 1,525 mm max.)
Safety
Safety Lock Positions:
8
Power Unit
Standard Motor:
208-230 VAC, 50/60 Hz, 1 Phase, 5 HP, 23 Amps
Time to Full Rise:
≈45 seconds
Sound Pressure:
Lift produces less than 85dB when in operation.
Operating Hydraulic Pressure under Max. Load:
2,170 psi
Special voltages available upon request.
Specifications
Capacity 12000
Design Two-Post
Type Heavy Duty
Configuration Symmetric
Configuration Asymmetric
Overall Height 93"
Overall Width 142"
Inside Columns 119"
