capacity
- Lifting Capacity
- 10,000 lbs. (4,536 kg)
Rise
- A.Rise
- 75.5" (1,918 mm)
- B.Rise + Pad
- 79.5" (2,007 mm)
- D.Min Height + Pad
- 4" (102 mm)
- Time to Full Rise
- 45 Seconds
outside dimensions
- E.Height Overall
- 181" (4,597 mm)
- F.Width Overall
- 135" (3,431 mm) or 145" (3,683 mm)
- G.Outside Columns
- 127.5" (3,238 mm) or 137.5" (3,492 mm)
Inside dimensions
- H.Inside Columns
- 108.5" (2,756 mm) or 118.5" (3,010 mm)
- I.Drive-Thru Clearance
- 92" (2,338 mm) or 102" (2,592 mm)
- J.Floor to overhead switch
- 175.75" (4,464 mm)

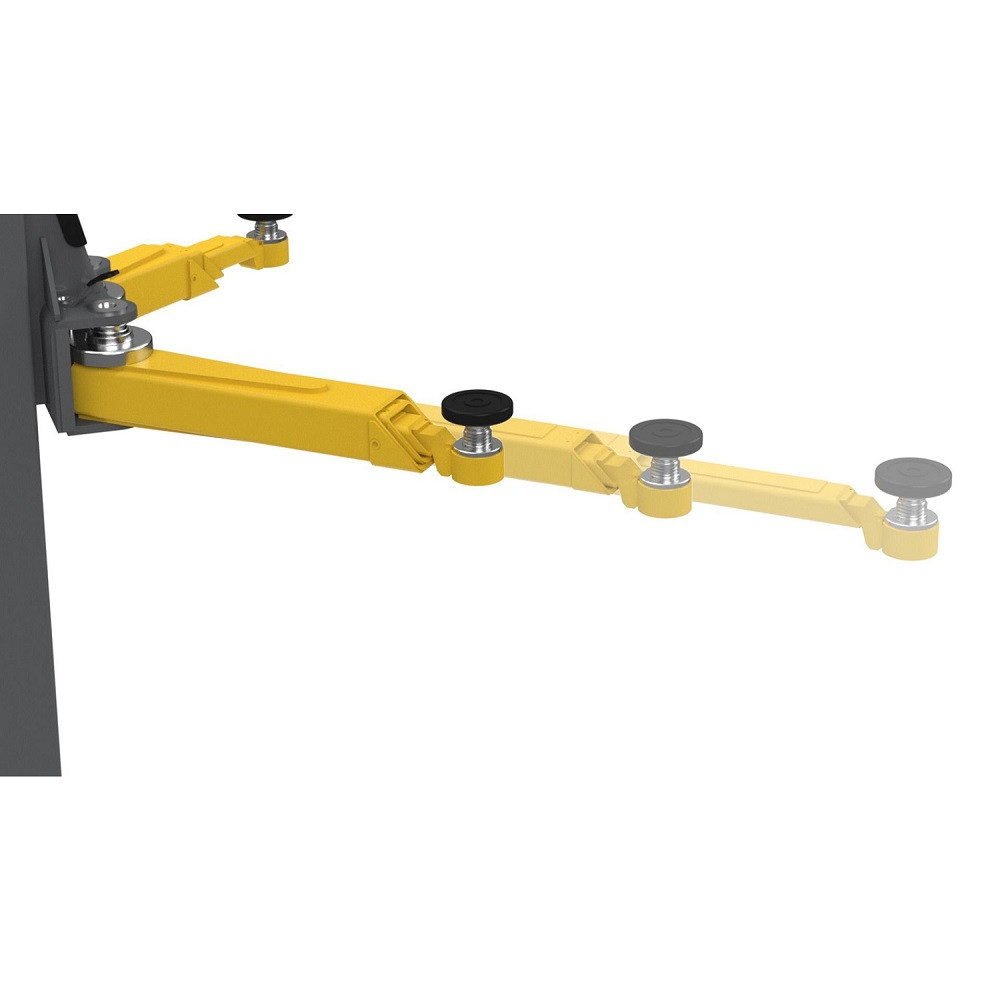

Arms & pads
- K.Front arm reach (MIN)
- 24.5" (622 mm)
- K.Front arm reach (MAX)
- 50" (1,270 mm)
- L.Rear arm reach (MIN)
- 32" (812 mm)
- L.Rear arm reach (MAX)
- 59.25" (1,504 mm)
- max load per arm
- 2500 lbs (1,134 kg)
- noise
- <70 dB
shipping
- Shipping Dimensions
- 162" x 24" x 30" (4,115mm x 610mm x 762mm )
- Weight
- 1902.00
Specifications
Capacity 10000
Design Two-Post
Configuration Symmetric
Configuration Asymmetric
Overall Height 181"
Overall Width 145"
Inside Columns 118"
