| CAPACITY | |
| Lifting Capacity | 10,000 lbs. (4,536 kg) |
| RISE | |
| A. Rise | 69" (1,753 mm) |
| B. Rise + Pad | 73" (1,854 mm) |
| D. Min Height + Pad | 4" (102 mm) |
| Time to Full Rise | 45 Seconds |
| OUTSIDE DIMENSIONS | |
| E. Height Overall | 168" (4,267 mm) |
| F. Width Overall | 135" (3,431 mm) or 145" (3,683 mm) |
| G. Outside Columns | 127.5" (3,238 mm) or 137.5" (3,492 mm) |
| INSIDE DIMENSIONS | |
| H. Inside Columns | 108.5" (2,756 mm) or 118.5" (3,010 mm) |
| I. Drive-Thru Clearance | 92" (2,338 mm) or 102" (2,592 mm) |
| J. Floor to Overhead Switch | 163.5" (4,155 mm) |

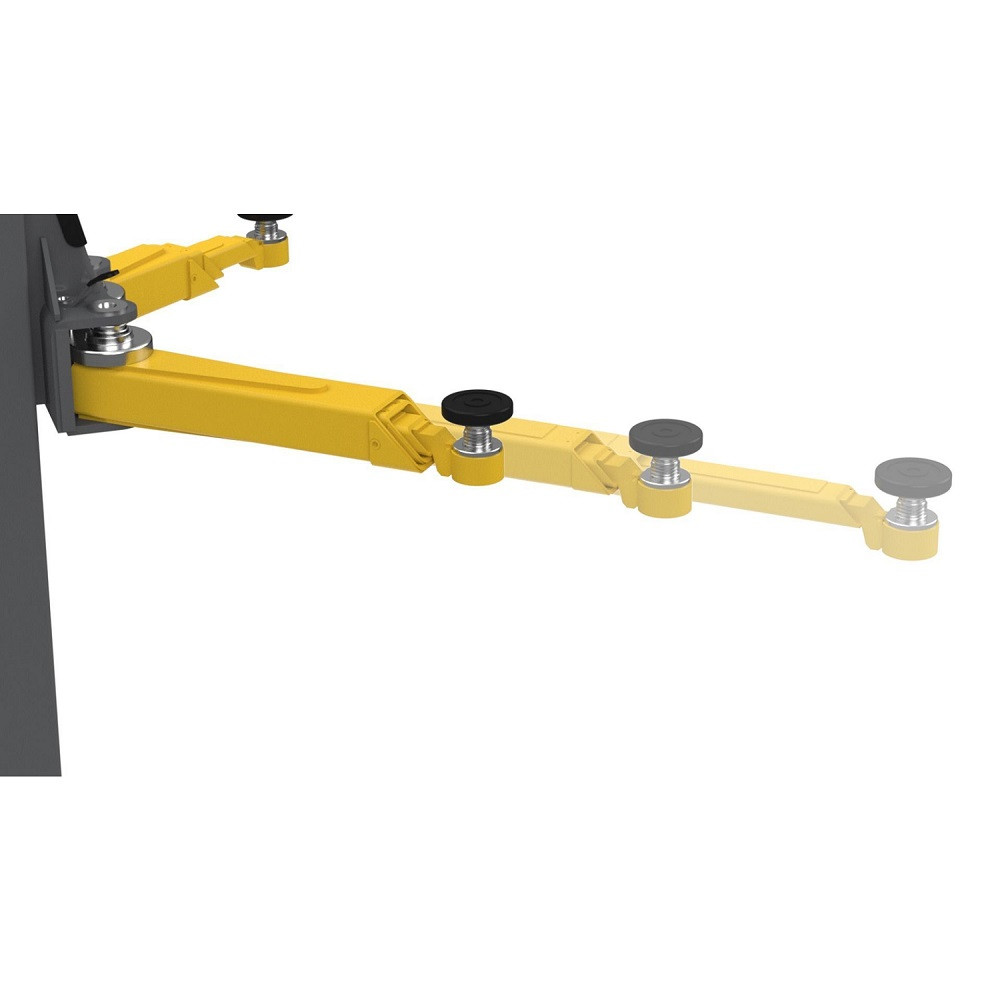

| ARMS & PADS | |
| K. Front Arm Reach (MIN) | 24.5" (622 mm) |
| K. Front Arm Reach (MAX) | 50" (1,270 mm) |
| L. Rear Arm Reach (MIN) | 32" (812 mm) |
| L. Rear Arm Reach (MAX) | 59.25" (1,504 mm) |
| MAX LOAD PER ARM | |
| Maximum Load Per Arm | 2,500 lbs. (1,134 kg) |
| NOISE | |
| Noise Level | <70 dB |
| SHIPPING | |
| Shipping Dimensions | 150" x 24" x 30" (3,810 mm x 610 mm x 762 mm) |
| Weight | 1840.00 lbs. |
Specifications
Capacity 10000
Design Two-Post
Configuration Symmetric
Overall Height 168"
Overall Width 135"
Inside Columns 108"
