Capacity
Lifting Capacity*
10,000 lbs. (4,536 kg)
*Max Capacity / Front Axle
5,000 lbs. (2,268 kg)
*Max Capacity / Rear Axle
5,000 lbs. (2,268 kg)
Rise
A - Rise:
75.5" (1,918 mm)
B - Rise + Pad Only:
79.5" (2,007 mm)
C - Rise + Pad + 63 mm Adapter:
89" (2,261 mm)
D - Min. Height + Pad:
4" (102 mm)
Time to Full Rise:
45 seconds
Outside Dimensions
E - Height Overall:
157" (3,988 mm)
F - Width Overall:
135" (3,431 mm) or 145" (3,683 mm)
G - Outside Columns:
127.5" (3,238 mm) or 137.5" (3,492 mm)
Inside Dimensions
H - Inside Columns:
108.5" (2,756 mm) or 118.5" (3,010 mm)
I - Drive-Thru Clearance:
92" (2,338 mm) or 102" (2,592 mm)

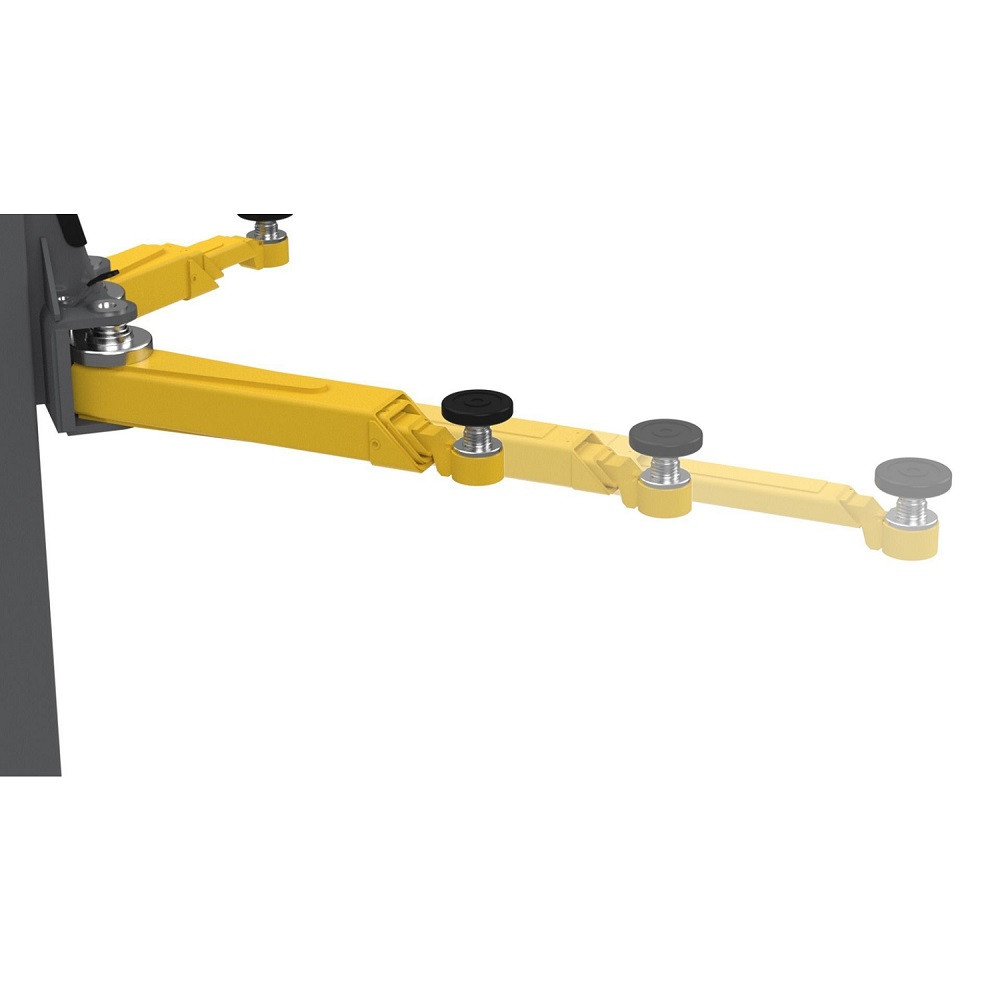

Arms & Pads
K - Front Arm Reach: (MIN)
24.5" (622 mm)
K - Front Arm Reach: (MAX)
50" (1,270 mm)
L - Rear Arm Reach: (MIN)
32" (812 mm)
L - Rear Arm Reach: (MAX)
59.25" (1,504 mm)
Screw Pad Adjustment:
2" (51 mm)
Max Load Per Arm
2,500 lbs. (1,134 kg)
Power Unit
Motor:
220 VAC, 60 Hz, 1 Phase
Noise:
<70 dB
Specifications
Capacity 10000
Design Two-Post
Configuration Symmetric
Configuration Asymmetric
Overall Height 157"
Overall Width 145"
Inside Columns 118"
