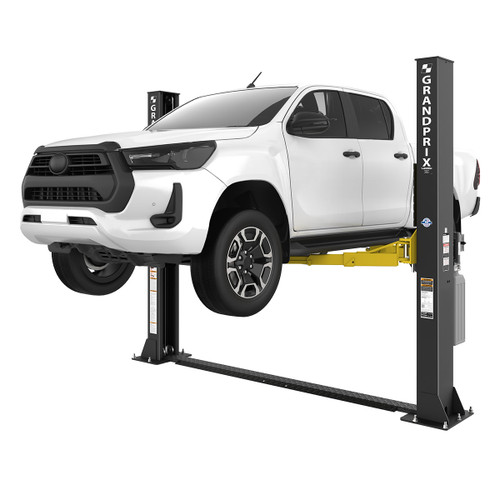

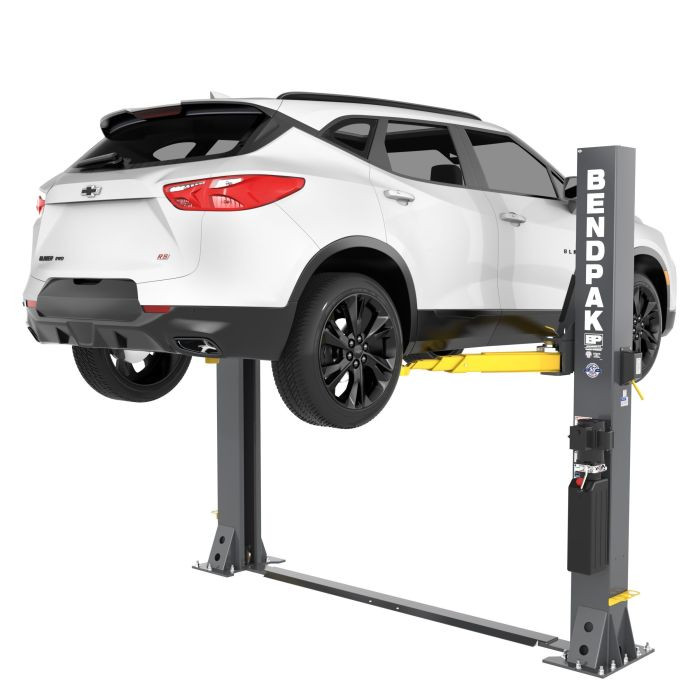

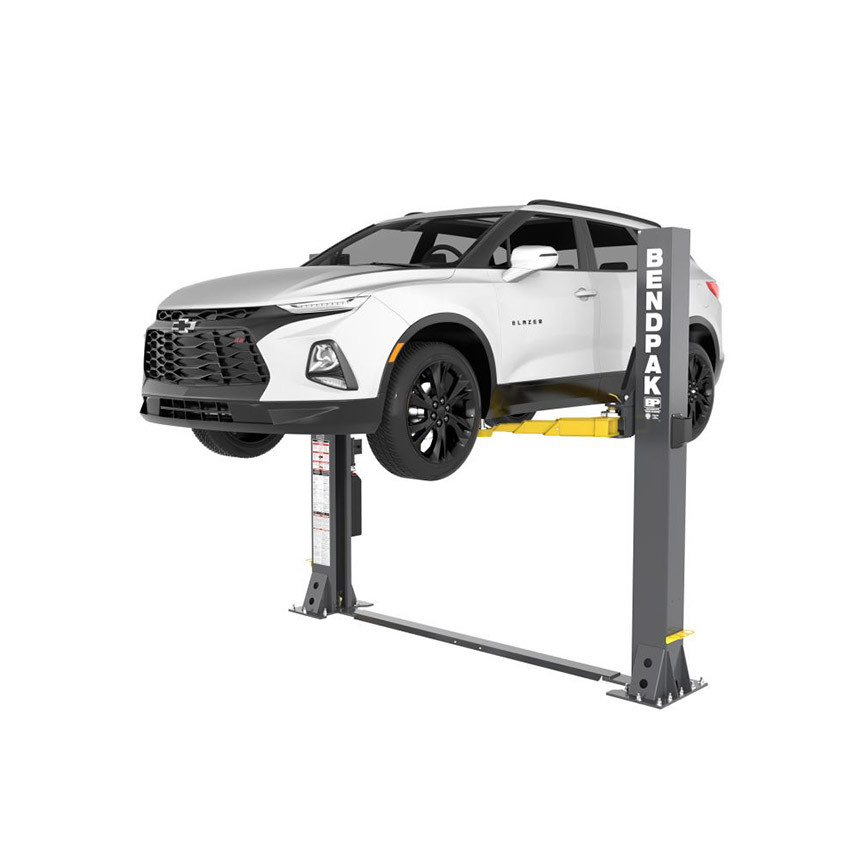

Capacity
Lifting Capacity
9,000 lbs. (4,082 kg)
Max Capacity / Front Axle
4,500 lbs. (2,041 kg)
Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)
Maximum Capacity per Lift Arm
2,250 lbs. (1,021 kg)
Dimensions
A – Width Overall:
136 or 146 in. (3,453 or 3,707 mm)
B – Base Plate Width:
25.25 in. (642 mm)
C – Post Height:
123 in. (3,128 mm)
D – Drive-Thru:
91 or 101 in. (2,311 or 2,565 mm)
E – Inside Posts:
108.25 or 118.25 in. (2,749 or 3,003 mm)
F – Outside Posts:
129.5 or 139.5 in. (3,289 or 3,543 mm)
G – Minimum Height with Pad:
4.5 in. (114 mm)
H – Max. Lifting Height:
73.5 in. (1,867 mm)
I – Max. Rise:
70 in. (1,775 mm)
J – Maximum Pad Adjustment:
2.25 in. (55 mm)
K – Floor Plate Height:
1.4 in. (36 mm)
L – Floor Plate Width:
9.5 in. (240 mm)
Arms & Pads
M – Front Arm Reach (Measured from the Lift Arm Pivot to the Cradle Pad Center Pin):
22.25 - 47.5 in. (562 - 1,205 mm)
N – Rear Arm Reach (Measured from the Lift Arm Pivot to the Cradle Pad Center Pin):
29.5 - 57 in. (747 - 1,446 mm)
Safety
Safety Lock Positions:
14 (Spaced Every 3.6" / 92 mm)
Power Unit
Standard Motor:
208-230 VAC, 50/60 Hz, 1 Phase, 5 HP, 23 Amps
Time to Full Rise:
≈60 seconds
Sound Pressure:
Lift produces less than 85dB when in operation.
Operating Hydraulic Pressure under Max. Load:
2,170 psi
Specifications
Capacity 9000
Style Floorplate
Type Two-Post
