Capacity
Lifting Capacity*
9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle
4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)
Rise
A - Min. Runway Height:
5" (127 mm)
B - Max. Rise:
70" (1,778 mm)
C - Max. Lifting Height:
75" (1,905 mm)
Time to Full Rise:
50 seconds
Outside Dimensions
D - Overall Width:
110.25" (2,800 mm)
E - Outside Length:
198" (5,029 mm)
F - Overall Length:
224.5" (5,702 mm)
G - Height of Columns:
88" (2,235 mm)
Inside Dimensions
H - Width Between Columns:
100.25" (2,546 mm)
I - Drive-Thru Clearance:
86.65" (2,200 mm)

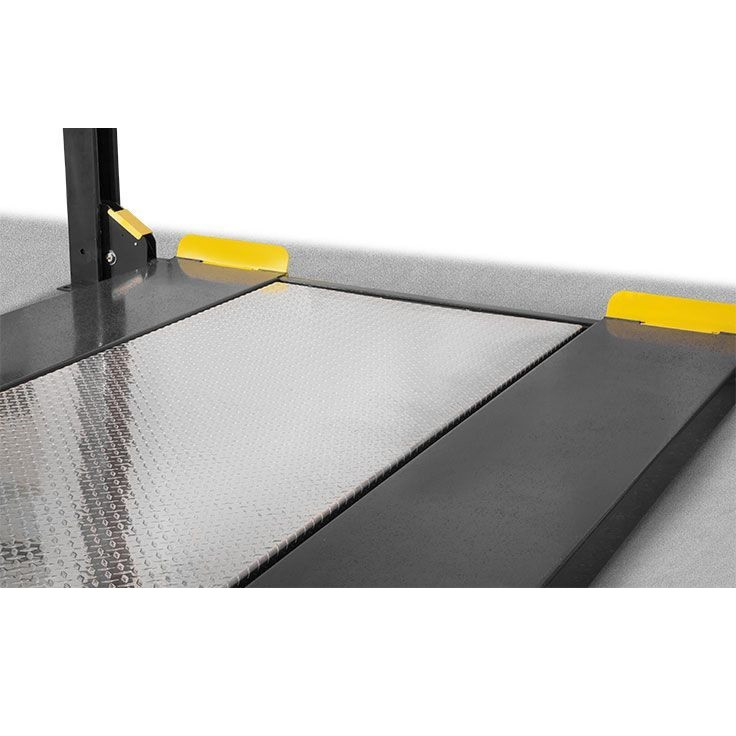

Runways
J - Runway Width:
19" (483 mm)
K - Length of Runways:
182.25" (4,629 mm)
L - Width Between Runways:
35" (889 mm) or 41" (1,041 mm)
M - Runway Centerline:
56.75" (1,441 mm) or 63" (1,600 mm)
N - Outside Edge of Runways:
75.75" (1,924 mm) or 82" (2,083 mm)
Minimum Wheelbase
Rated Capacity:
135" (3,429 mm)
75% Capacity:
115" (2,921 mm)
50% Capacity:
95" (2,413 mm)
25% Capacity:
80" (2,032 mm)
Locking
Locking Positions:
14
Lock Spacing:
Every 4" (102 mm)
Power Unit
Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB
Shipping
Weight:
1,696 lbs. (769 kg)
Dimensions:
192'' x 22'' x 28'' (4,877 mm x 558 mm x 711 mm)
Specifications
Capacity 9000

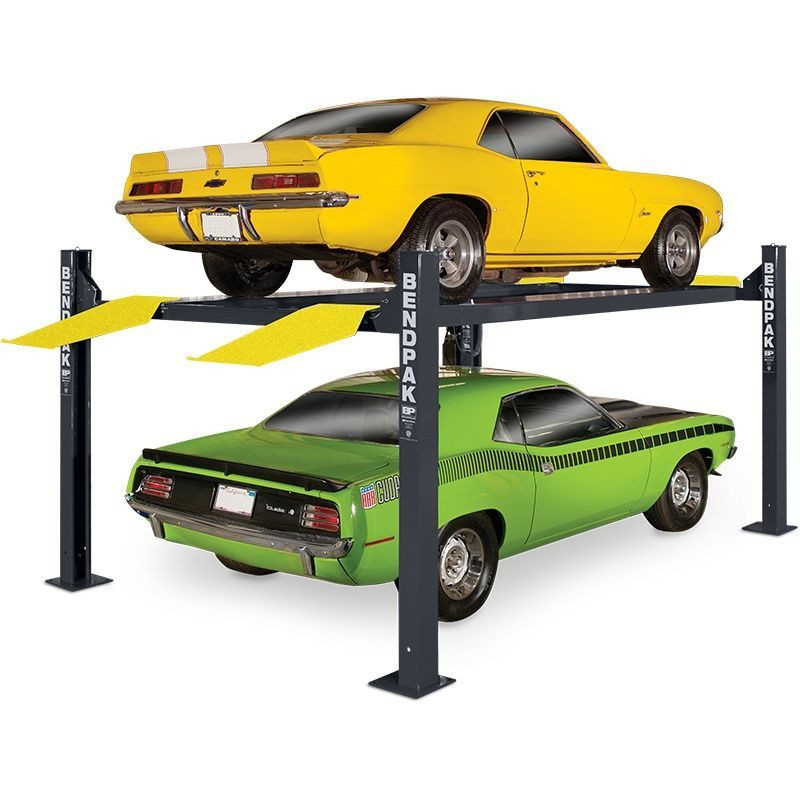

Design Four-Post
Configuration Closed-Front
Type Parking
