Capacity
Lifting Capacity*
9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle
4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)
Rise
A - Min. Runway Height:
4.5" (114 mm)
B - Max. Rise:
70" (1,778 mm)
C - Max. Lifting Height:
74.5" (1,892 mm)
Time to Full Rise:
50 seconds
Outside Dimensions
D - Overall Width:
100.25" (2,546 mm)
E - Outside Length:
174" (4,420 mm)
F - Overall Length:
200" (5,080 mm)
G - Height of Columns:
88" (2,235 mm)
Inside Dimensions
H - Width Between Columns:
89.75" (2,280 mm)
I - Drive-Thru Clearance:
76.5" (1,943 mm)
Runways
J - Runway Width:
19" (483 mm)
K - Length of Runways:
164" (4,166 mm)
L - Width Between Runways:
37.5" (952 mm)
M - Runway Centerline:
56.5" (1,435 mm)
N - Outside Edge of Runways:
75.5" (1,918 mm)
Minimum Wheelbase
Rated Capacity:
115" (2,921 mm)
75% Capacity:
100" (2,540 mm)
50% Capacity:
85" (2,159 mm)
25% Capacity:
70" (1,778 mm)
Locking
Locking Positions:
12
Lock Spacing:
Every 4" (102 mm)
Power Unit
Motor:
220 VAC / 60 Hz / 1Ph
Noise:
45 dB
Shipping
Weight:
1,592 lbs. (722 kg)
Dimensions:
167" x 22" x 28" (4,241 mm x 558 mm x 711 mm)
Specifications
Capacity 9000

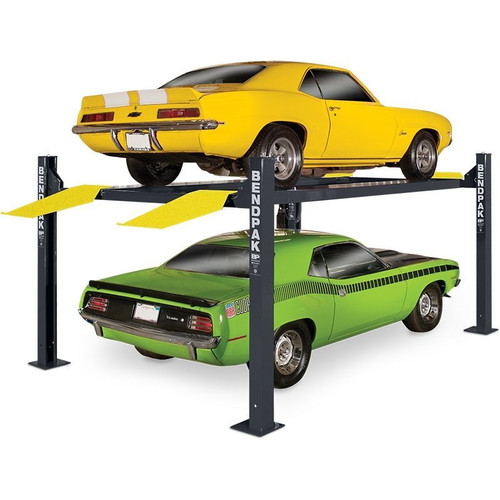

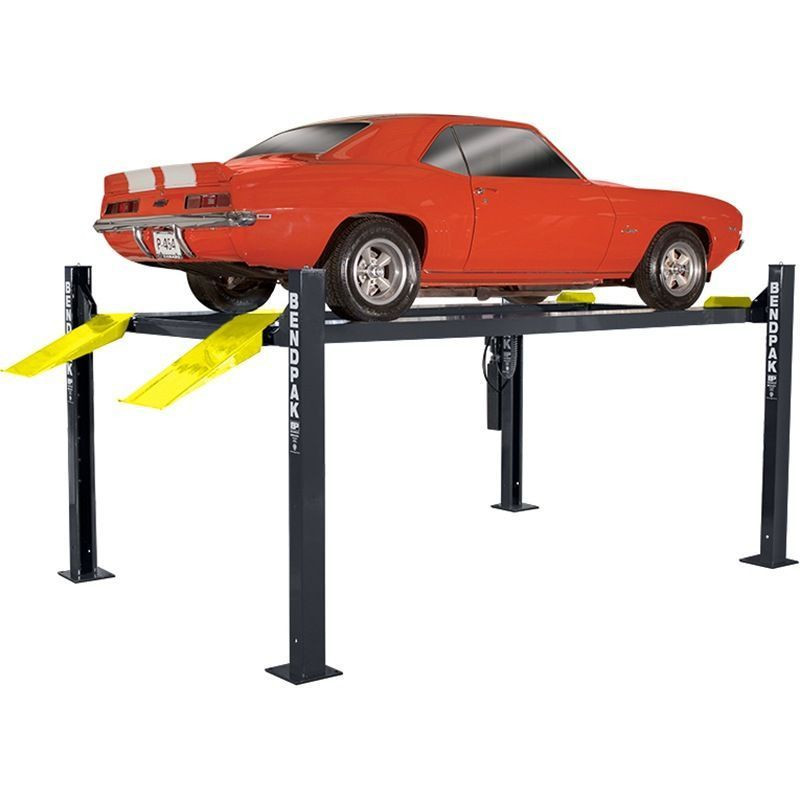

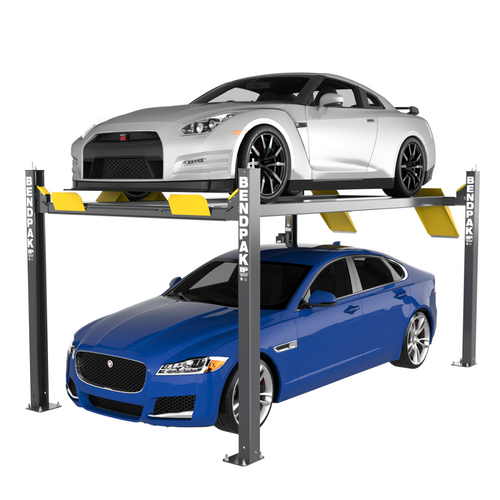

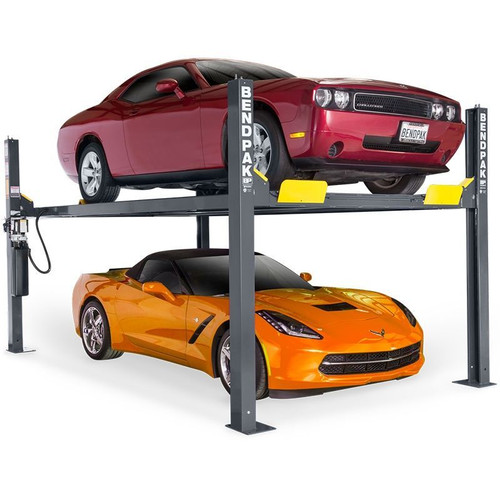

Design Four-Post
Type Closed-Front
Type Parking
