Style
Style:

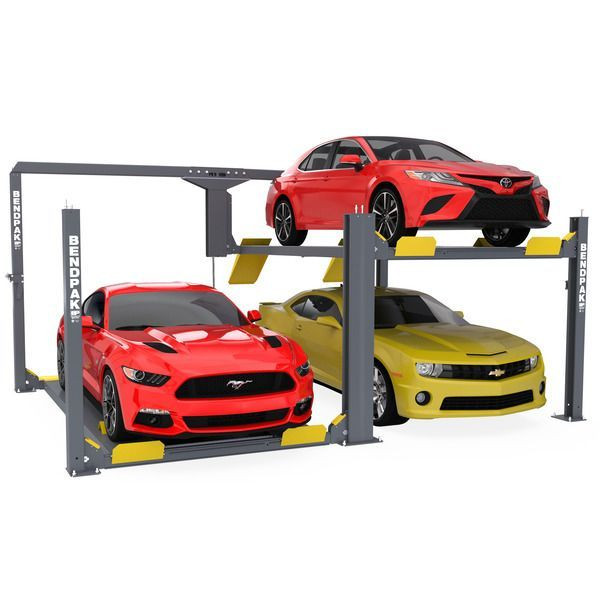

Multi-Platform Parking Lift
Model
PL-12000DP
Number of Platforms
2
Load Capacity per Platform
6,000 lbs. / 2,722 kg
Total Width
221.25" / 5,620 mm
Outside Length
198" / 5,029 mm
Total Length
242.5” / 6,160 mm
Total Height
130.5” / 3,313 mm
Min. Runway Height
5.00” / 127 mm
Maximum Rise
82.2” / 2,210 mm
Width Between Posts
211” / 5,362 mm
Width Between Short & Double Posts
100.25” / 2,546 mm
Width Between Platforms
29” / 739 mm
Width Between Runways
35” or 41” / 887 or 1,045 mm
Runway Length
183” / 4,649 mm
Runway Width
19” / 482 mm
Drive Thru Height
80.5” / 2,047 mm
Drive Thru Width
85” / 2,161 mm
Outside Edge of Runways
76 or 82” / 1,930 or 2,083 mm
Safety Lock Positions
6
Power Unit / Motor
220 VAC, 50/60 Hz, 1 Ph -*Other voltages, including 110V option are available upon request. All specifications subject to revision.
Specifications
Capacity 12000
Design Four-Post
Type Parking
