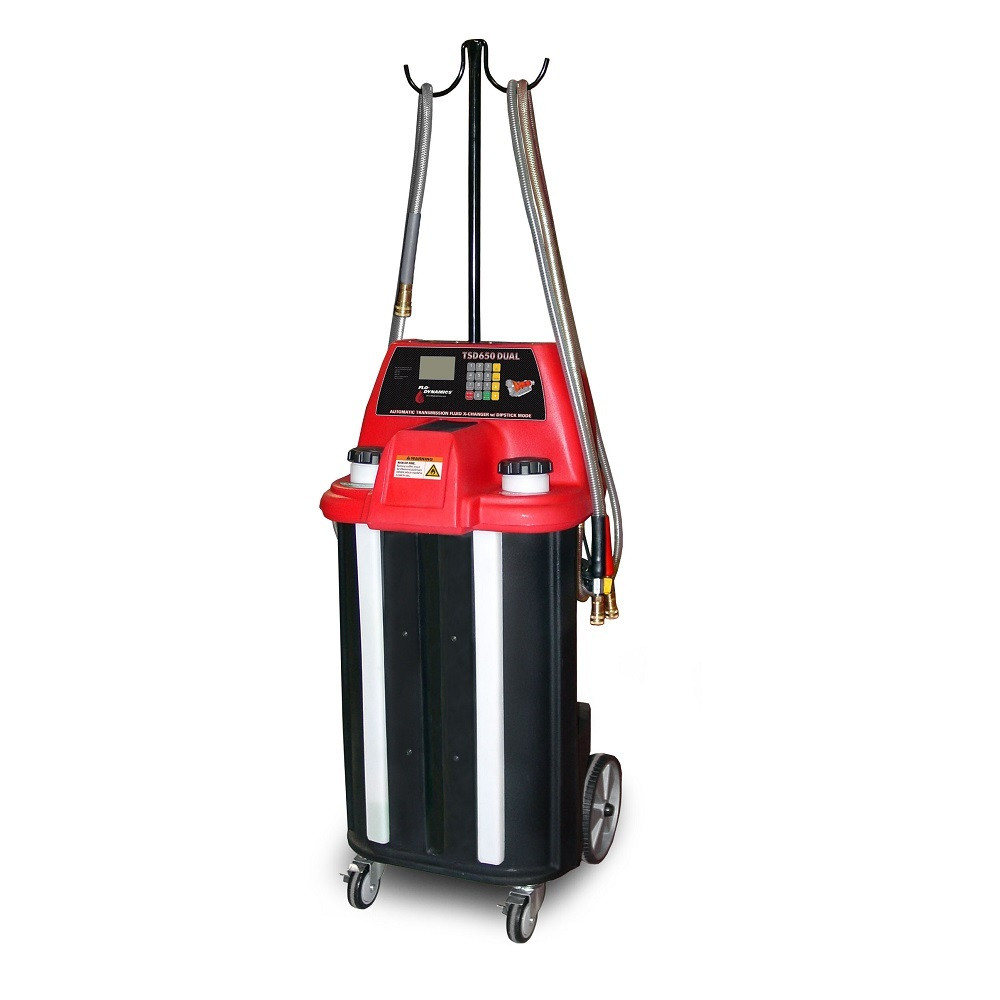

Flo-Dynamics TSD650 : Inline & Dipstick ATF Exchanger w/ 2 New Fluid Flush Tanks

Product Description

The Flo-Dynamics TSD650 Inline & Dipstick ATF Exchanger is a versatile, menu-driven transmission service machine designed for shops that work with multiple automatic transmission fluid types. Technicians can perform exchanges through either the vehicle’s transmission cooler lines or its dipstick tube, providing broader application coverage without requiring separate machines.

Key Product Features:

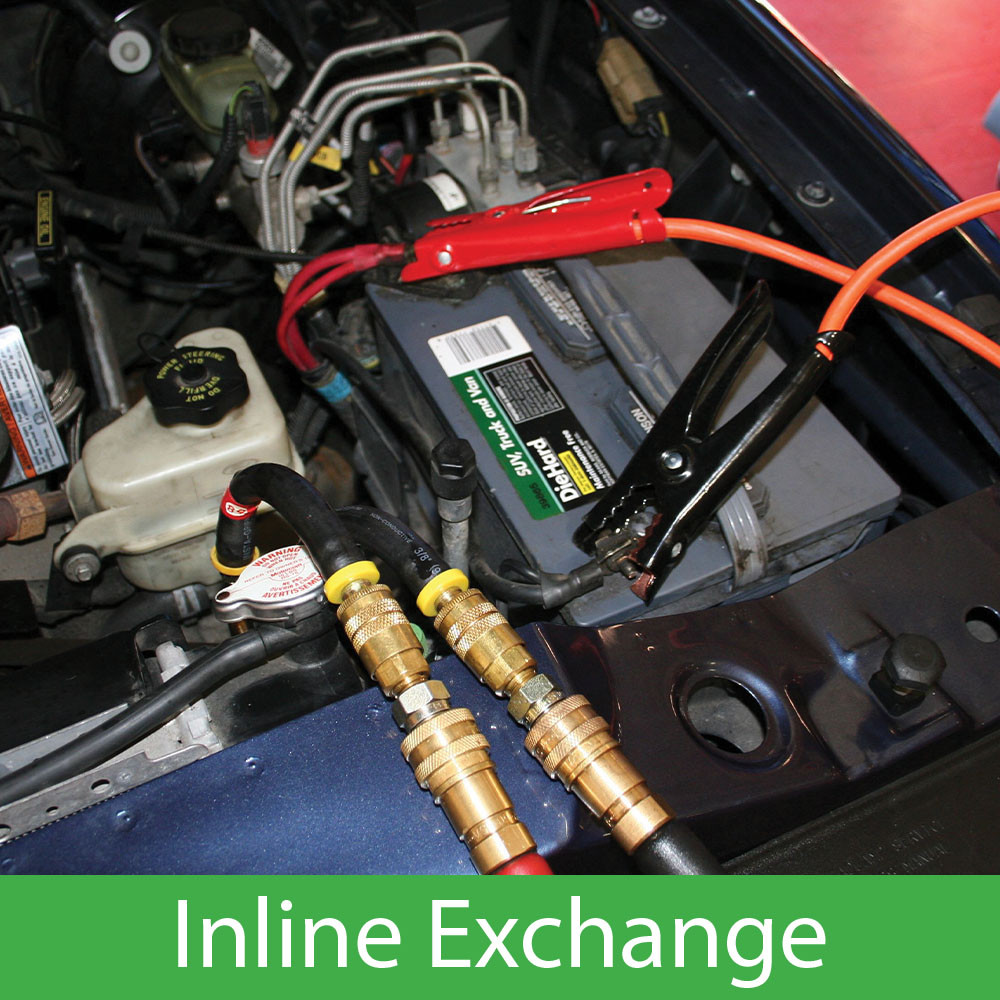

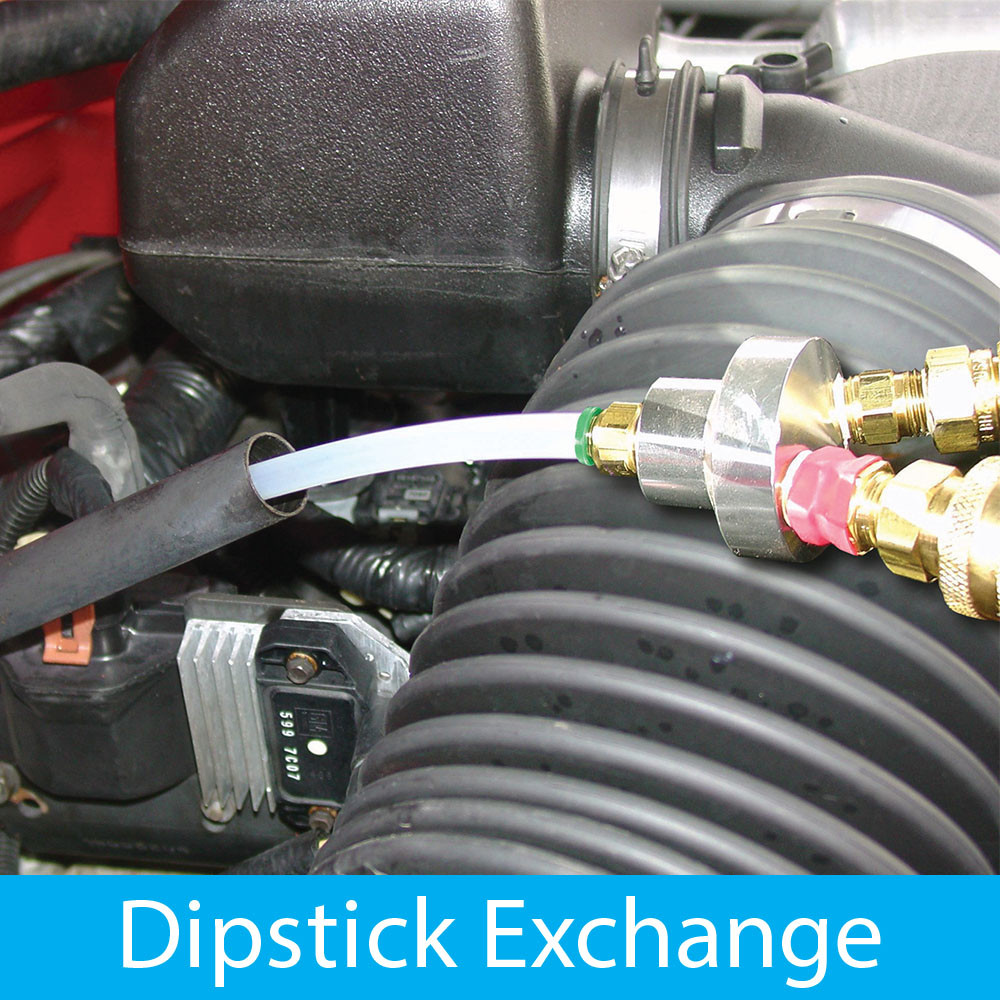

• Inline and dipstick exchange modes: Performs transmission fluid exchanges through either the cooler-line circuit or the vehicle’s dipstick tube, improving compatibility across a wide range of vehicle designs.
• Dual new-fluid tanks: Two separate fresh-fluid tanks allow shops to keep different ATF formulations ready for service in the same machine.
• Touch-of-a-button fluid selection: The operator can quickly select the appropriate new-fluid tank without draining and refilling the machine between different ATF applications.
• Reduced fluid changeover time: Dual tanks help improve workflow in shops that frequently move between domestic, European, Asian, CVT, synthetic, or other vehicle-specific transmission fluids.
• Large-capacity fluid storage: Available product specifications identify two 28-quart new-fluid tanks and a high-capacity waste-fluid tank for extended service capability.
• Selectable 1-to-24-quart exchanges: Allows technicians to program the correct service amount based on the vehicle’s transmission capacity and maintenance requirements.
• Large backlit LCD screen: Provides clear, menu-driven prompts, operating information, and service indicators throughout the exchange procedure.
• Fully automatic operation: Controls the programmed ATF exchange after the technician has selected the service mode, fluid tank, and required quantity.
• Powerful 2.5 GPM pump: Delivers fast fluid movement for efficient exchanges and improved service-bay productivity.
• Fast inline servicing: Manufacturer documentation indicates that inline transmission exchanges can typically be completed in 15 minutes or less, depending on vehicle conditions and fluid flow.
• Fast dipstick servicing: Dipstick-mode exchanges may typically be completed in 10 minutes or less on compatible vehicles, depending on the application and operating conditions.
• Special chemical flushing mode: Allows a cleaning chemical to circulate through the transmission system before the final fresh-fluid exchange.
• Individual ADD and REMOVE functions: Dedicated controls allow the technician to install or extract fluid separately for accurate final-level corrections.
• Transmission pan drain capability: Removes fluid from the transmission before pan removal, helping technicians complete filter replacement with less spilling and cleanup.
• Pause function: Allows the active exchange to be temporarily stopped for inspection, transmission filter service, or another related maintenance procedure.
• Power-interruption memory: Retains service information following a temporary loss of electrical power, reducing the need to restart the procedure.
• Reverse-hoses guidance: The machine alerts the technician when inline service-hose orientation needs to be corrected during setup or operation.
• Quart counter: Displays the amount of fluid processed during the current transmission exchange.
• Built-in voltmeter: Allows technicians to monitor the vehicle battery voltage supplying power to the machine.
• 12V vehicle-powered operation: Runs directly from the vehicle’s battery, eliminating the need for access to an AC electrical outlet.
• Accurate fluid measurement: Proven measurement technology coordinates the removal of used ATF with the installation of fresh fluid for consistent service results.
• Visible fluid confirmation: A sight tube and clear service hoses allow technicians to observe fluid movement and condition during the exchange.
• Ten-foot external service hoses: Long service hoses provide convenient access to vehicle connection points while keeping the machine positioned safely beside the work area.
• Organized adapter storage: The onboard adapter rack drains into the waste tank, helping keep fittings neat, dry, and accessible.
• No lift or service pit required: The compact, self-contained design allows transmission exchanges to be performed without placing the vehicle on a lift, ramp, or service pit.
• Durable rotocast construction: Polyethylene body panels and tanks are designed for professional use and help prevent damage or scratches to nearby vehicles.
• Ergonomic operating height: Positions the LCD screen and controls at a comfortable level for regular technician operation.
• Five-inch locking casters: Provide easy movement between service bays and stable positioning while the machine is operating.
• Machine dimensions: Approximately 49 inches high, 23 inches wide, and 27 inches deep.
• Machine weight: Approximately 170 pounds.
• Professional applications: Ideal for automotive dealerships, transmission repair specialists, fleet maintenance departments, quick-lube businesses, independent garages, and technical training facilities.
