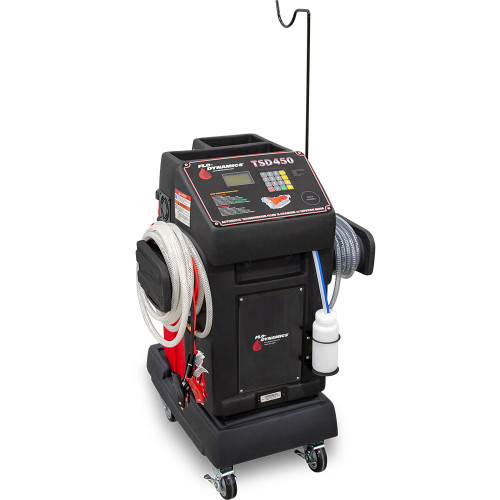

Flo-Dynamics TSD450 : Inline & Dipstick ATF Exchanger w/ LCD Screen

Product Description

The Flo-Dynamics TSD450 Inline & Dipstick ATF Exchanger gives automotive technicians two convenient ways to replace automatic transmission fluid using one professional service machine. It can connect through the vehicle’s transmission cooler lines for an inline exchange or operate through the transmission dipstick tube when cooler-line access is difficult or unavailable.

Key Product Features:

• Inline and dipstick exchange modes: Allows technicians to perform an ATF exchange through either a transmission cooler line or the vehicle’s dipstick tube, improving compatibility across a broad range of automobiles.
• Professional inline ATF service: Connects to the transmission cooler circuit to replace used fluid while the vehicle’s transmission circulates the ATF.
• Convenient dipstick exchange: Provides an alternative service method when cooler-line fittings are inaccessible, difficult to disconnect, or unsuitable for the required service.

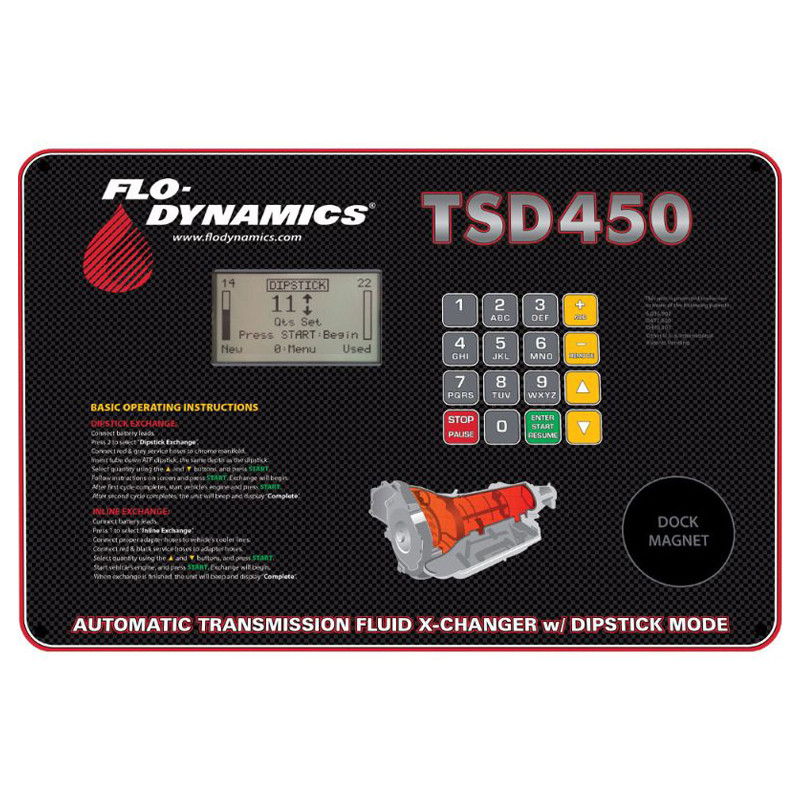

• Large backlit LCD screen: Displays easy-to-follow prompts, service indicators, fluid information, and operating instructions to guide the technician through each procedure.
• Fully automatic operation: Controls the programmed exchange after the machine has been correctly connected and started, reducing continuous technician involvement.
• Powerful 2.5 GPM pump: Provides fast fluid movement for efficient transmission service and improved bay productivity.
• Fast service capability: Manufacturer documentation states that a complete service typically takes 15 minutes or less in inline mode and 10 minutes or less in dipstick mode, depending on the vehicle and operating conditions.
• Dual 24-quart tanks: Includes separate 24-quart new-fluid and waste-fluid tanks to keep fresh and used ATF isolated during service.
• 21-quart exchange capability: Supports larger automotive transmission services while maintaining appropriate operating space inside the tanks.
• Selectable 1-to-20-quart exchange: Allows the technician to program the appropriate fluid quantity based on the vehicle’s transmission capacity.
• Accurate fluid measurement: Proven electronic measurement technology maintains the transmission fluid exchange within approximately ±3%.
• Automatic fluid balancing: Coordinates the removal of used fluid with the installation of fresh ATF to help maintain the proper fluid level throughout the exchange.
• Special chemical flushing mode: Supports transmission cleaning or conditioning procedures before the final exchange fluid is installed.
• Individual ADD and REMOVE controls: Dedicated functions allow technicians to install or extract fluid separately when correcting the final transmission fluid level.
• Transmission pan drain function: Removes fluid from the transmission pan to make filter replacement and related maintenance cleaner and more convenient.
• Pause and resume capability: Allows the active exchange to be temporarily stopped for a filter change, inspection, or other procedure.
• Power-interruption memory: Retains service progress following a temporary loss of electrical power, reducing the risk of wasted ATF or restarting the entire process.
• Reverse-hoses indicator: Alerts the technician when the cooler-line service hoses need to be reversed during an inline exchange.
• Quart counter: Displays the amount of fluid processed during the current transmission service.
• Fluid totalizer: Tracks cumulative fluid movement through the machine to support equipment-use monitoring and shop records.
• Integrated voltmeter: Displays vehicle battery voltage so the operator can confirm that the machine has a suitable power supply.
• 12V vehicle-powered design: Operates from the vehicle’s battery and does not require a nearby AC electrical outlet.
• Dual inline filtration: Two inline 22-micron absolute filters help capture microscopic particles and contaminants circulating through the service equipment.
• Clear service hoses: Allow technicians to visually monitor fluid movement and compare the condition of used and replacement ATF.
• Broad adapter compatibility: Easy-to-use adapters support fast connection to many automobile makes and models.
• Organized adapter rack: The onboard storage rack drains into the waste tank, helping keep adapters dry, clean, and conveniently arranged.
• No lift or service pit required: The compact, self-contained exchanger can be used without placing the vehicle on a lift, ramp, or service pit.
• Durable rotocast construction: Polyethylene body panels and fluid tanks are designed for professional use and help reduce the risk of scratching nearby vehicles.
• Compact platform: The space-saving footprint helps the TSD450 fit comfortably into crowded automotive service areas.
• Ergonomic operating height: Positions the LCD panel and controls at a convenient working level for frequent technician use.
• Five-inch locking casters: Provide easy movement between service bays and stable positioning during operation.
• Machine dimensions: Approximately 39 inches high, 24-3/4 inches wide, and 25 inches deep.
• Machine weight: Approximately 133 pounds.
• Professional applications: Ideal for automotive dealerships, transmission specialists, independent repair shops, quick-lube facilities, fleet maintenance departments, and automotive training centers.
