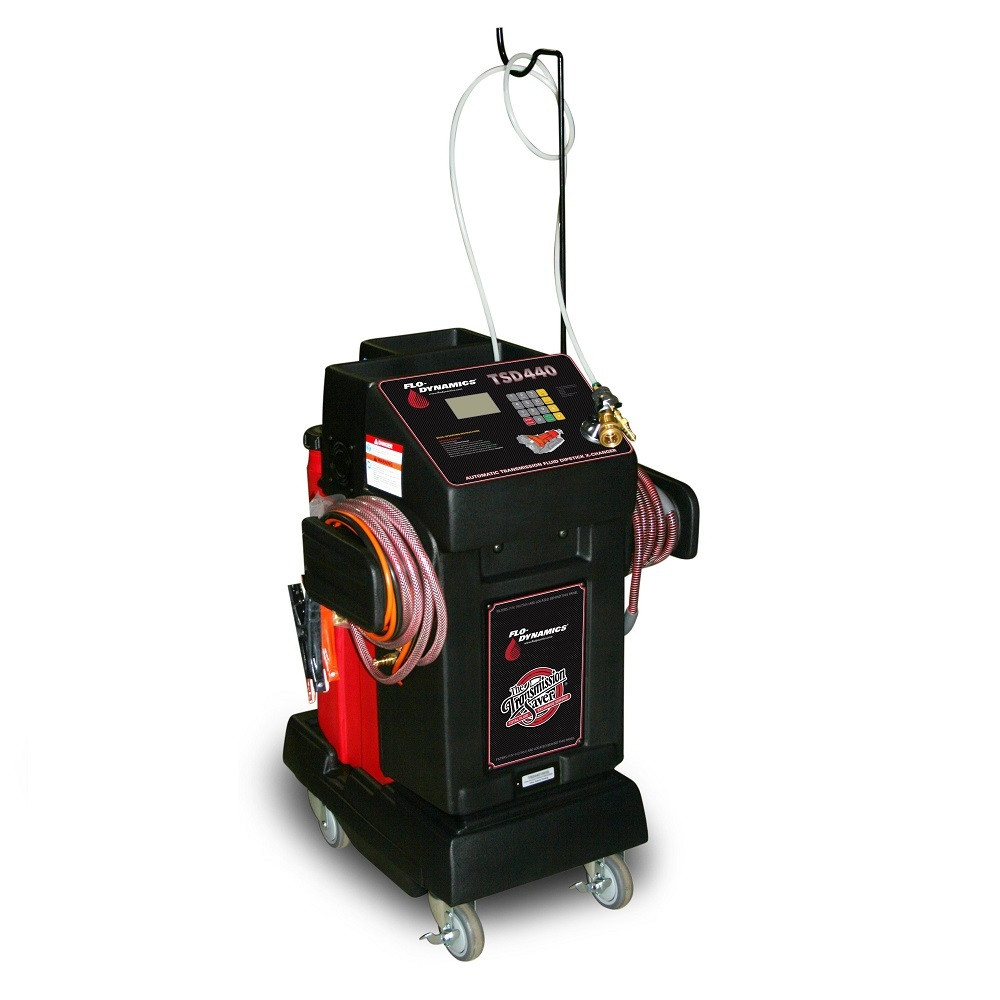

Flo-Dynamics TSD440 : Dipstick ATF Exchanger w/ LCD Screen

Product Description

The Flo-Dynamics TSD440 Dipstick ATF Exchanger is a professional transmission service machine designed to replace automatic transmission fluid directly through the vehicle’s dipstick tube. This connection method eliminates the need to access or disconnect transmission cooler lines, making the machine especially useful when cooler-line fittings are difficult to reach or unavailable.

Key Product Features:

• Dipstick-tube ATF exchange: Removes used transmission fluid and installs fresh ATF through the vehicle’s dipstick tube without requiring access to transmission cooler lines.

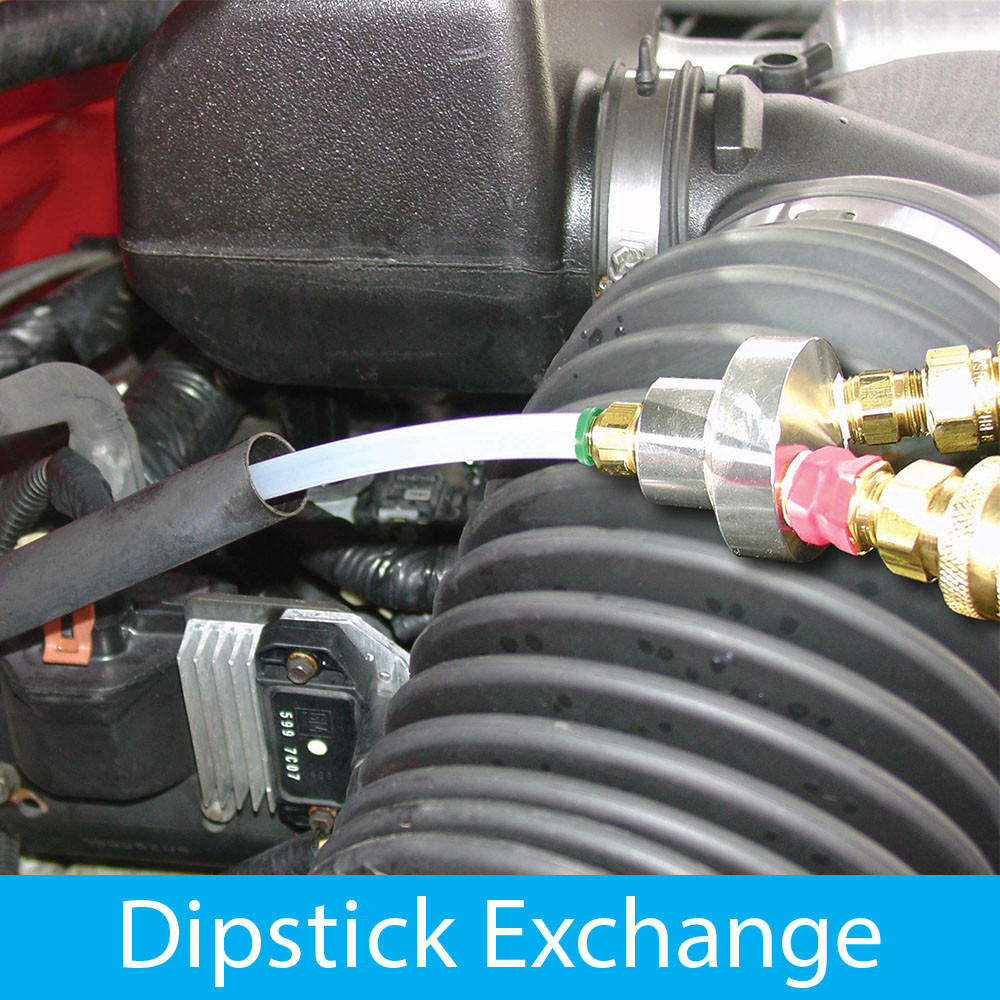

• Simple vehicle connection: The service tube is inserted through the transmission dipstick opening, providing a convenient service method for compatible vehicles.
• Large backlit LCD screen: Displays easy-to-follow prompts, service information, and operating indicators to guide the technician through the exchange.
• Fully automatic operation: Manages the programmed transmission fluid exchange after the machine has been properly connected and started.
• Powerful 2.5 GPM pump: Provides fast fluid movement to help reduce service time and improve technician productivity.
• Two 24-quart fluid tanks: Includes separate new-fluid and waste-fluid tanks, each with a 24-quart capacity, for clean fluid separation and organized service-bay operation.
• Up to 21-quart exchange capability: Supports larger passenger-vehicle transmission services while maintaining sufficient tank space for controlled operation.
• Selectable 1-to-20-quart exchange: Allows the technician to program the required service volume based on the vehicle’s transmission capacity.
• Accurate fluid measurement: Proven measurement technology provides fluid-exchange accuracy within approximately ±3%.
• Special chemical flushing mode: Supports transmission cleaning procedures before the final replacement fluid is installed.
• Individual ADD and REMOVE controls: Dedicated buttons allow technicians to add or extract transmission fluid separately when correcting the final fluid level.
• Transmission pan drain function: Removes fluid from the transmission pan to help technicians perform cleaner filter replacement and maintenance procedures.
• Pause function: Allows the exchange process to be temporarily stopped for inspection or related service work and then continued.
• Power-interruption memory: Retains service progress after a temporary electrical interruption, helping prevent unnecessary restarts or wasted fluid.
• Quart counter: Displays the amount of transmission fluid processed during the active service.
• Fluid totalizer: Tracks cumulative fluid usage to support equipment monitoring and shop service records.
• Built-in voltmeter: Displays vehicle battery voltage so the technician can confirm that the machine is receiving suitable operating power.
• 12V vehicle-powered operation: Runs directly from the vehicle’s battery and does not require a nearby AC electrical outlet.
• Clear service hoses: Provide visual confirmation of fluid condition and movement during the transmission exchange.
• Compact, self-contained design: Does not require a lift, service pit, or ramp, allowing the machine to be used in a wide variety of shop environments.
• Organized adapter storage: The onboard adapter rack drains into the waste tank, helping keep fittings dry, clean, and accessible.
• Durable rotocast construction: Polyethylene body panels and tanks are designed for regular professional use and help reduce the risk of scratching nearby vehicles.
• Space-saving platform: The compact footprint makes the TSD440 suitable for busy service areas where floor space is limited.
• Ergonomic operating height: Positions the LCD screen and controls at a comfortable level for routine technician use.
• Five-inch locking casters: Allow the machine to move easily between service bays and remain securely positioned during operation.
• Machine dimensions: Approximately 39 inches high, 24-3/4 inches wide, and 25 inches deep.
• Machine weight: Approximately 133 pounds according to current manufacturer specifications.
• Professional applications: Suitable for automotive dealerships, transmission specialists, independent repair shops, quick-lube facilities, fleet maintenance departments, and automotive training centers.
