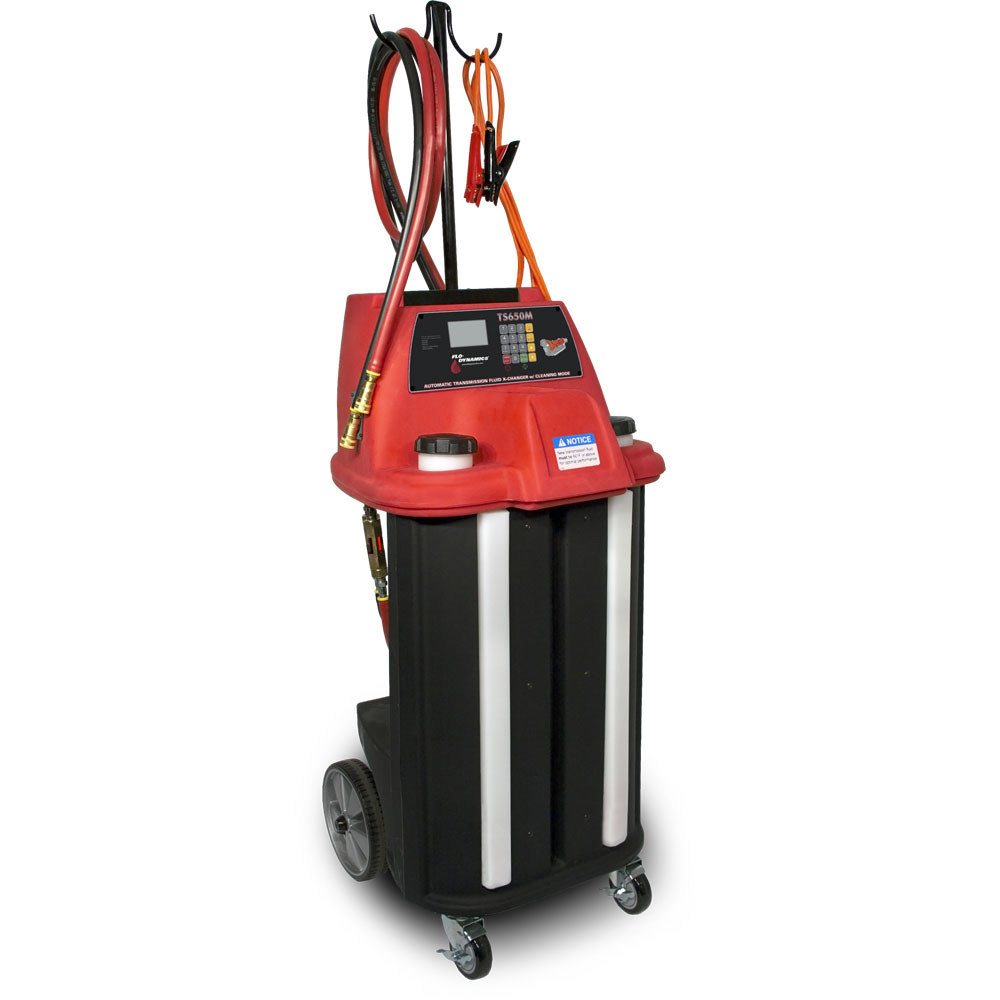

Flo-Dynamics 98010 : TS650M ATF Inline Exchanger w/ Dual New Fluid Tanks

Product Description

Key Product Features:

• Dual new-fluid tanks: Two separate 28-quart tanks let technicians store different transmission fluids and select the correct fluid type at the touch of a button. This helps reduce changeover time and lowers the risk of mixing incompatible ATF formulations.

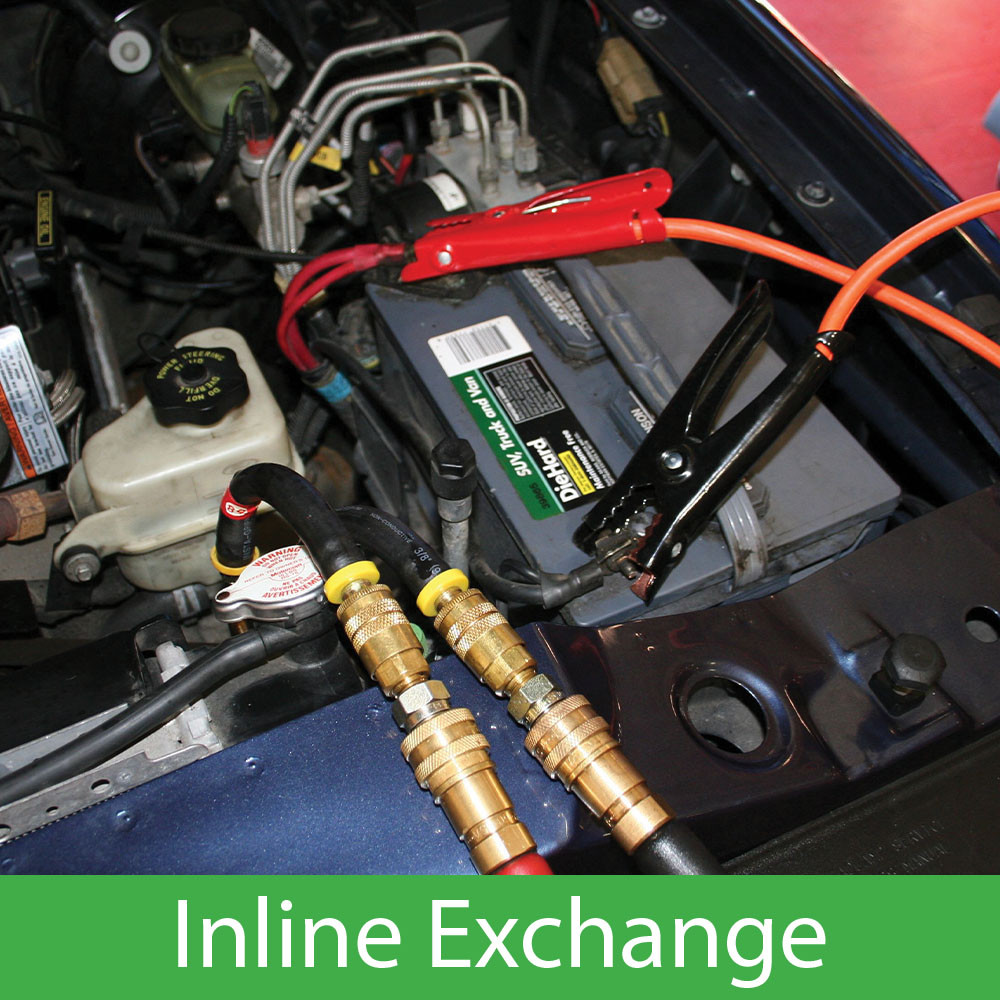

• Professional inline ATF exchange: Connects through the vehicle’s transmission cooler lines to replace used automatic transmission fluid with fresh fluid during engine operation.

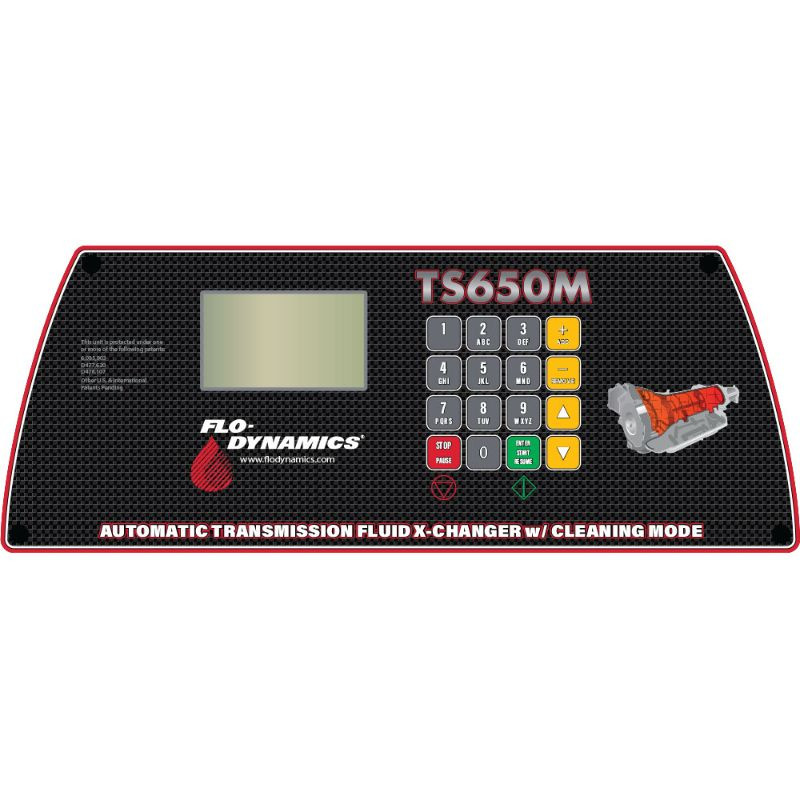

• Fully automatic operation: Menu-driven controls guide the technician through the service and allow a complete exchange to be performed with minimal supervision.
• Selectable exchange quantity: Allows the operator to choose fluid exchange amounts from 1 to 24 quarts to match the vehicle’s transmission capacity and service requirements.
• High-output 2.5 GPM pump: The large pump supports rapid fluid movement and shorter service times in busy automotive facilities.
• Accurate fluid-level management: Sensor-based technology helps maintain the correct balance between fluid removed from the vehicle and fresh fluid returned to the transmission.
• Two inline 22-micron filters: Absolute filtration helps capture microscopic particles and contaminants circulating through the service equipment.
• Special chemical flushing mode: Provides a dedicated cleaning procedure for circulating approved transmission service chemicals before the fresh-fluid exchange.
• Regular and special cleaning options: The operating menu allows technicians to select a standard inline exchange or a special cleaning procedure based on the required service.
• Individual add and remove controls: Dedicated functions allow technicians to add or extract fluid separately for accurate final-level adjustments.
• Transmission filter-change function: The machine can drain fluid for transmission pan or filter service, pause the procedure, and replace the selected quantity after the filter has been changed.
• Power-interruption memory: Retains the active service information following a temporary loss of electrical power, allowing the exchange to continue without restarting the entire procedure.
• Visual fluid confirmation: Integrated sight tubes or sight glasses allow the operator to observe the condition and movement of the old and new transmission fluids.
• Built-in quart counter: Tracks the selected and exchanged fluid quantity for improved service control.
• Integrated voltmeter: Displays vehicle battery voltage so technicians can monitor the machine’s electrical supply during operation.
• 12-volt DC operation: Receives power directly from the vehicle battery, eliminating the need for a nearby AC electrical outlet.
• Large waste-fluid capacity: Includes one 28-quart waste-fluid tank to accommodate complete transmission fluid exchange services.
• 10-foot service hoses: Extended hoses provide convenient access to transmission cooler-line connections while allowing flexible machine positioning around the vehicle.
• Broad vehicle coverage: Optional application-specific adapters support connections to a wide range of passenger cars, light trucks, vans, and compatible fleet vehicles.
• Mercedes-Benz approved design: The TS650M is identified in manufacturer and distributor materials as an approved transmission fluid exchange solution for applicable Mercedes-Benz service procedures.
• Durable rotocast construction: The polyethylene body and fluid tanks are designed for professional shop use while helping reduce the risk of scratching nearby vehicle surfaces.
• Ergonomic working height: The tall cabinet design places the controls and service information at a comfortable operating level for technicians.
• Mobile shop design: Locking front casters and larger rear wheels make the unit easier to move, position, and secure in the service bay.
• Machine dimensions: Approximately 49 inches high, 23 inches wide, and 27 inches deep.
• Machine weight: Approximately 170 pounds according to current manufacturer specifications.
• Professional applications: Well suited for automotive dealerships, transmission specialists, independent repair shops, quick-lube facilities, fleet maintenance departments, and vocational automotive programs.
