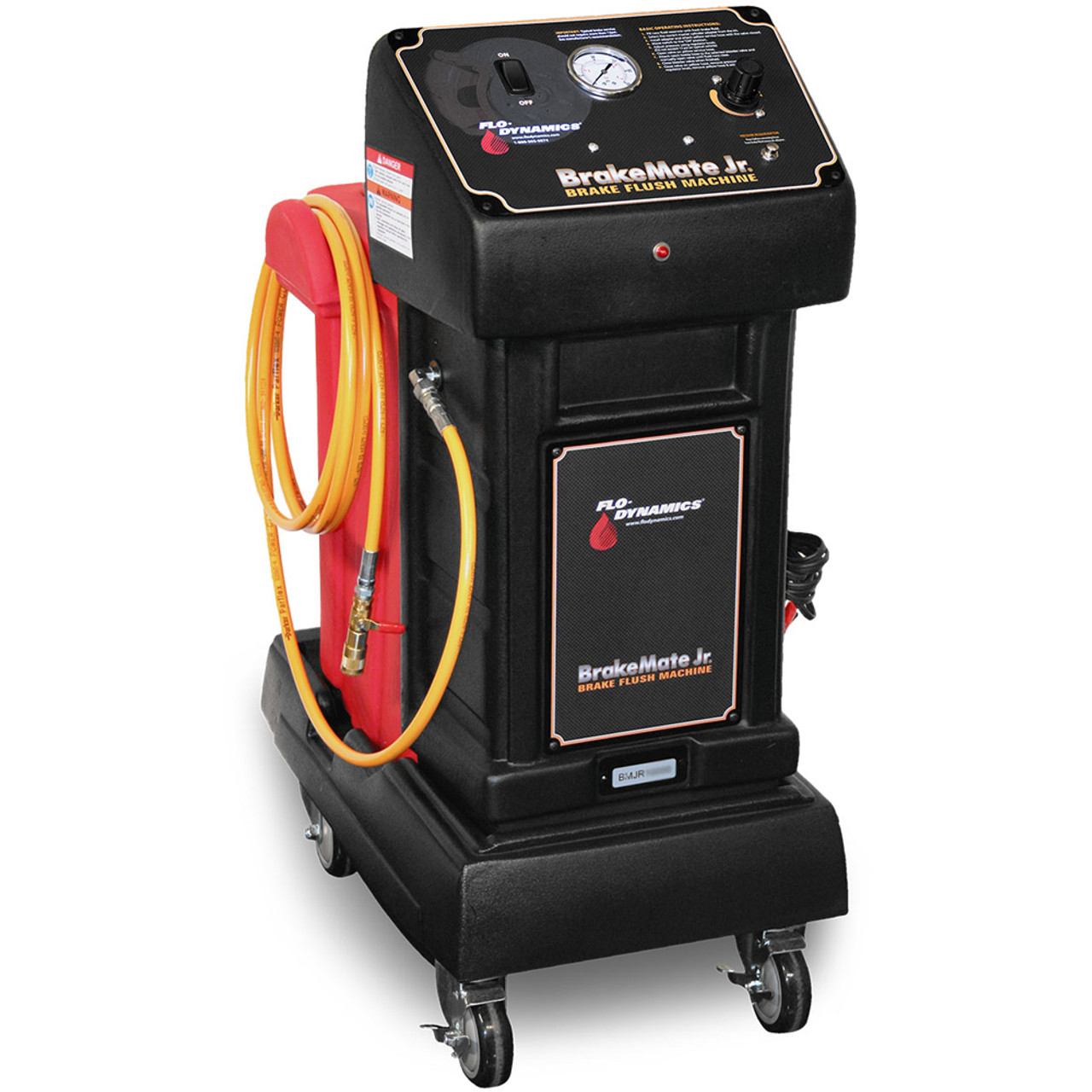

Flo-Dynamics 98003 : Brakemate Jr Flush Machine

Product Description

Key Product Features:

• Professional pressure brake flushing: Supplies fresh brake fluid to the master cylinder while contaminated fluid is released through the vehicle’s bleeder screws.
• One-person brake bleeding: Allows a single technician to complete brake fluid exchange procedures without an assistant operating the brake pedal.
• Machine-only configuration: Part number 98003 includes the BrakeMate Jr without the master cylinder adapter set, helping shops avoid purchasing duplicate adapters they already own.
• Optional master cylinder adapter set: Flo-Dynamics adapter kit 941416 can be purchased separately to expand coverage across common domestic, Asian, and European master cylinder reservoirs.
• Conventional and ABS brake service: Suitable for pressure bleeding and fluid exchange on compatible conventional hydraulic and anti-lock brake systems when vehicle-specific procedures are followed.
• High-pressure hybrid capability: Designed to accommodate compatible hybrid vehicle braking systems that may require higher service pressures.
• Adjustable fluid pressure: The pressure regulator allows output adjustment from approximately 1 to 49 PSI, supporting a wide range of vehicle service requirements.
• Integrated pressure regulator: Gives technicians direct control over the pressure applied to the master cylinder reservoir.
• Easy-to-read pressure gauge: Displays operating pressure so the technician can monitor and adjust fluid delivery during the service.
• Typical low-pressure servicing: Flo-Dynamics’ quick-start instructions state that a standard brake service will generally not require more than approximately 12 PSI, subject to the vehicle manufacturer’s procedure.
• Five-quart new-fluid tank: Holds a substantial supply of clean brake fluid, reducing refill interruptions during multiple services.
• Automatic low-fluid shutoff: Stops the pump if the clean-fluid level becomes too low, helping prevent air from being introduced into the vehicle’s hydraulic brake system.
• Audible and visual low-fluid warning: A warning light and audible alert notify the technician when additional clean brake fluid is required.
• Waste-fluid collection bottle: The portable bottle connects to a wheel bleeder screw and captures discharged brake fluid for cleaner service and easier disposal.
• Magnetic bottle placement: The collection bottle can be positioned near the brake assembly using its attached magnet during service.
• Sequential wheel bleeding: Supports servicing each wheel individually, typically beginning with the wheel farthest from the master cylinder unless the vehicle manufacturer specifies another sequence.
• Pressure-release button: Relieves pressure from the service hose before disconnection, helping reduce fluid spray and provide cleaner master cylinder adapter removal.
• Service-hose ball valve: Allows the technician to control fluid delivery at the master cylinder connection.
• Clean disconnection process: The pressure-release system and hose valve help minimize spills after the brake flushing procedure is complete.
• Brake-system pressure testing: In addition to fluid flushing, the machine is designed to assist professional technicians with pressure testing compatible brake systems.
• Master cylinder top-off capability: The pressure hose can be used with the appropriate open-ended adapter to add clean fluid to a reservoir when needed.
• New-fluid tank draining: The machine can pump unused fluid from its reservoir into an appropriate container when preparing for storage or changing fluid types.
• 12V DC operation: Runs from the serviced vehicle’s battery, eliminating the need for a nearby AC electrical outlet.
• Long battery cable: The manufacturer’s current parts breakdown identifies an 18-foot battery cable assembly, allowing flexible positioning around the vehicle.

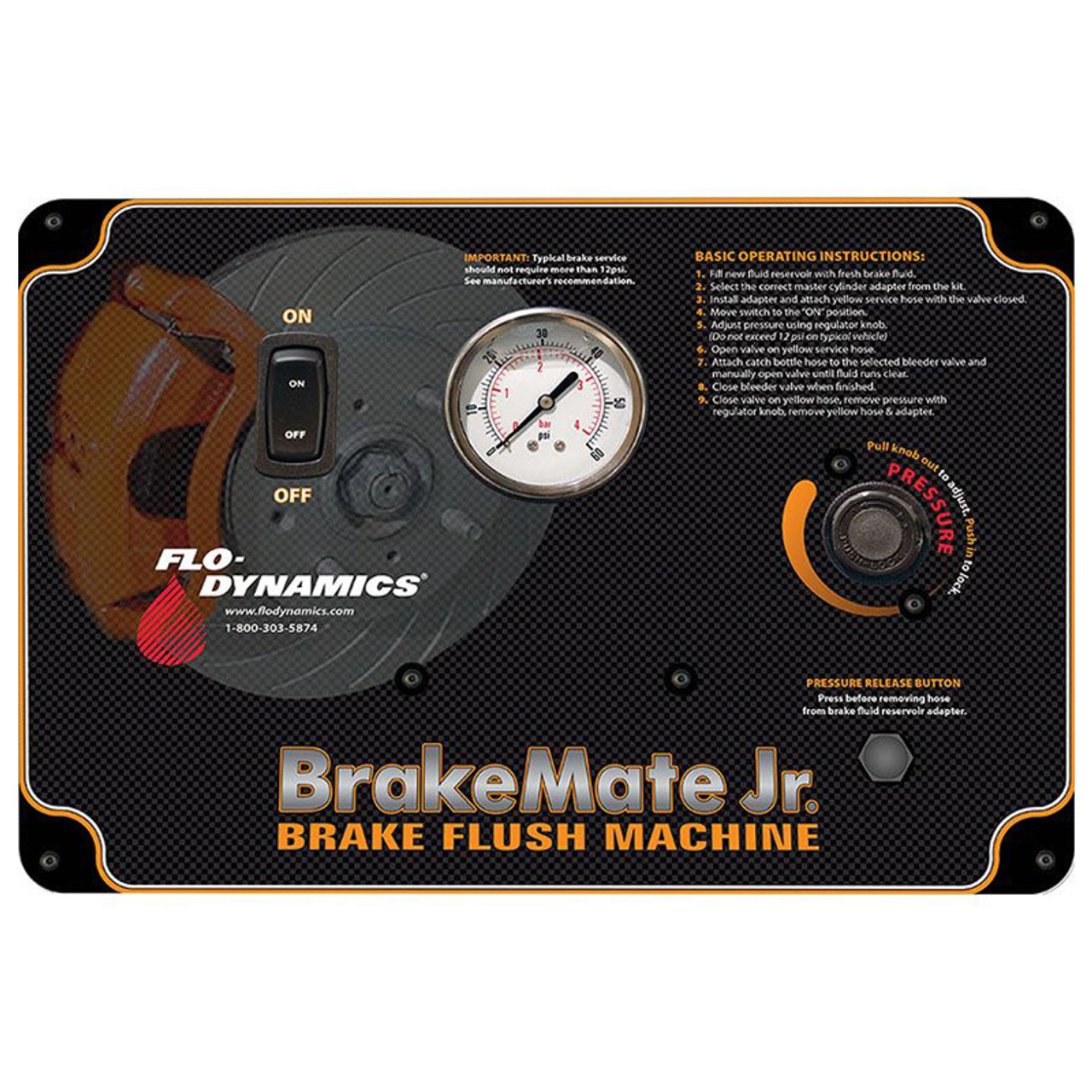

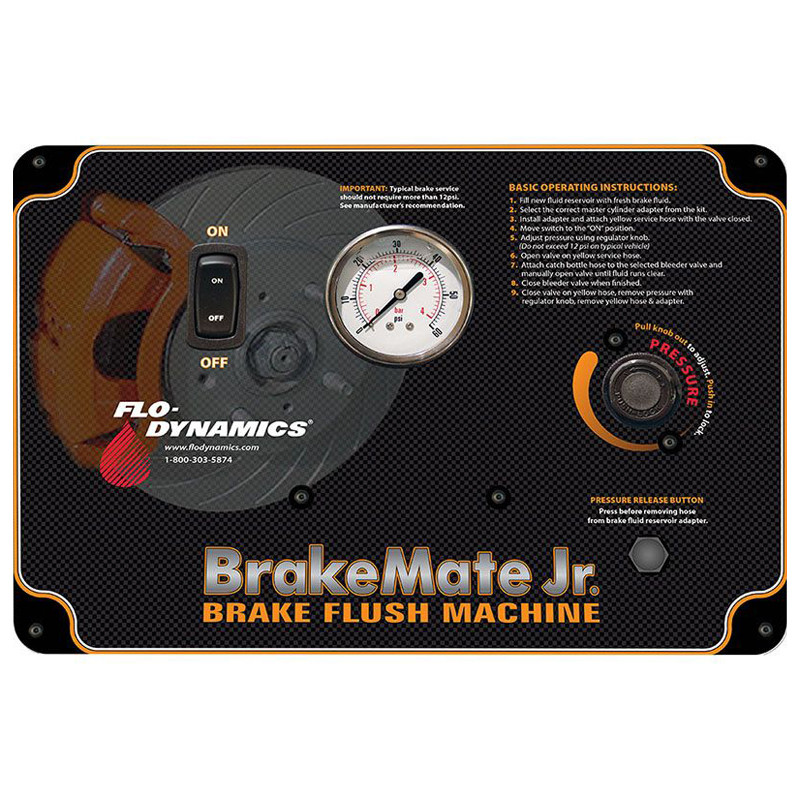

• Straightforward control panel: Simple machine controls help technicians set pressure, activate fluid delivery, and monitor the service process.
• Optional brake fluid extractor: Compatible with Flo-Dynamics extractor part number 945019 for removing old fluid from the master cylinder reservoir before flushing.
• Replacement waste bottle available: Waste-fluid bottle part number 945015 is available separately for replacement or additional service capacity.
• Four polyurethane casters: Provides smooth mobility and convenient positioning between vehicle lifts and service bays.
• Compact upright cabinet: Keeps the fluid tank, pump, pressure controls, hose, and accessories organized within a workshop-friendly footprint.
• Adapter-case mounting provision: The cabinet can accommodate the optional Flo-Dynamics adapter case when an adapter set is purchased separately.
• Machine dimensions: Approximately 39 inches high × 17 inches wide × 26 inches deep.
• Manufacturer part number: 98003 identifies the BrakeMate Jr machine supplied without master cylinder adapters.
• Professional applications: Ideal for automotive dealerships, independent repair shops, fleet maintenance departments, brake specialists, hybrid service facilities, tire shops, and vocational automotive programs.
