Flo-Dynamics 98002 : Brakemate Flush Machine with Adapters

Product Description

Key Product Features:

• Professional pressure brake flushing: Delivers clean brake fluid directly to the master cylinder while contaminated fluid is released through the vehicle’s bleeder screws.
• One-person brake service: Eliminates the need for a second technician to pump and hold the brake pedal during standard bleeding procedures.
• Brake flushing and pressure testing: Gives professional shops the ability to flush, bleed, and pressure-test compatible braking systems more efficiently.
• Suitable for conventional and ABS systems: Supports routine brake-fluid replacement on a broad range of modern hydraulic braking systems when used according to the vehicle manufacturer’s procedure.
• High-pressure hybrid capability: Engineered to handle the higher brake-fluid pressures encountered on compatible hybrid vehicle braking systems.
• Adjustable operating pressure: Fluid delivery pressure can be adjusted from approximately 1 to 49 PSI to meet different vehicle service requirements.
• Integrated pressure regulator: Allows the technician to set and control the correct brake-fluid pressure before beginning the service.
• Easy-to-read pressure gauge: Provides continuous visual monitoring of system pressure throughout the brake bleeding or flushing procedure.
• Five-quart new-fluid reservoir: The current manufacturer specification lists a five-quart clean brake-fluid tank, providing sufficient capacity for multiple services before refilling.
• Automatic low-fluid shutoff: Stops fluid delivery when the clean-fluid level becomes too low, helping prevent air from entering the vehicle’s brake system.
• Half-quart waste-fluid bottle: Includes a portable used-fluid collection bottle that connects at the vehicle’s bleeder screws.
• Bleeder-screw collection system: The waste bottle and hose help direct discharged brake fluid into a controlled container, reducing spills and cleanup.
• Pressure-release button: Relieves pressure from the service hose before adapter removal for a cleaner, safer disconnection from the master cylinder.
• Extensive adapter set included: Part number 98002 is supplied with the Flo-Dynamics master cylinder adapter set and storage case.
• Broad vehicle compatibility: The included adapters are designed to fit a wide range of domestic, Asian, and European master cylinder reservoir configurations.
• Dedicated adapter storage case: Keeps master cylinder adapters organized, protected, and easy to transport between service bays.
• Machine-mounted adapter storage: The adapter case can be attached to the unit so commonly used fittings remain close to the machine.

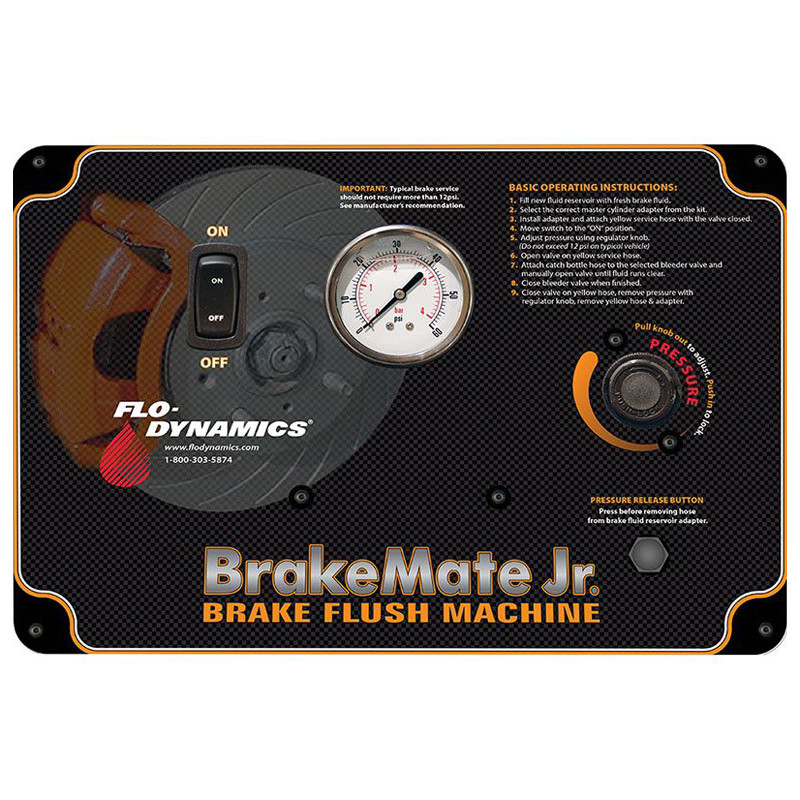

• Simple control panel: Straightforward controls help technicians set pressure, activate fluid delivery, and complete brake services with minimal setup.
• 12V DC operation: Draws electrical power from the serviced vehicle’s battery, eliminating the need for a nearby AC outlet.
• Long battery cable assembly: The parts breakdown identifies an 18-foot battery cable assembly, supporting flexible positioning around the vehicle.
• Optional brake-fluid extractor: An optional extractor, part number 945019, can be used to remove old fluid from the master cylinder reservoir before pressure flushing.
• Replacement waste bottle available: The waste-fluid bottle is available separately under part number 945015.
• Mobile roll-around design: Four polyurethane casters allow the machine to move easily between lifts and service areas.
• Stable workshop cabinet: The upright cabinet keeps the reservoir, service hose, controls, and adapter kit organized in a compact footprint.
• Convenient service-hose storage: Integrated machine storage helps protect the pressure hose and keeps the work area organized when the machine is not in use.
• Machine dimensions: Approximately 39 inches high × 17 inches wide × 26 inches deep.
• Machine weight: The current manufacturer product page lists the unit at approximately 103 lbs.
• Manufacturer part number: 98002 identifies the BrakeMate Jr package supplied with the master cylinder adapter set. The adapter-free version is listed separately as part number 98003.
• Professional applications: Ideal for automotive dealerships, independent repair shops, fleet maintenance facilities, brake specialists, hybrid vehicle service centers, tire shops, and vocational automotive programs.

Why Buy from ProQuip Solutions:

Purchase the Flo-Dynamics 98002 BrakeMate Jr Brake Flush Machine from ProQuip Solutions for a professional one-person solution to brake fluid flushing and bleeding. ProQuip Solutions can assist with compatible master cylinder adapters, replacement waste bottles, extraction accessories, hoses, fittings, and service parts, helping your shop improve brake-service efficiency, maintain controlled fluid pressure, and expand coverage across conventional, ABS, and compatible hybrid vehicles.
