QuickJack specifications diagram
Â
Lifting capacity
3,500 lbs. (1,588 kg)
Lowered height
A - Frame only: 3" (76 mm)
Â
B - With 2" block: 3.5" (89 mm)
Lifting height
C - Frame only: 16.5" (419 mm)
Â
D - With 2" block: 17.5" (445 mm)
Â
E - With 3" block: 18.5" (470 mm)
Â
F - Max. height: 21" (533 mm)
Â
G - With adapters: Not compatible
Â
H - With adapters + pin: Not compatible
Compare All Specifications
Â
Lift point spread
I - Maximum: 50.5" (1,283 mm)
Â
J - Minimum: 27" (686 mm)
Frame dimensions (ea.)
K - Width: 10.5" (267 mm)
Â
L - Length: 62.5" (1,588 mm)
Â
A - Height: 3" (76 mm)
Weight
60 lbs. (27 kg)
Other specs
Â
Â
Time to full rise: 30 seconds
Â
Power unit weight: 30 lbs. (13 kg)
Â
Shipping weight (per frame): 64 lbs. (29 kg)
Specifications
Capacity 3500
Power 208-240V

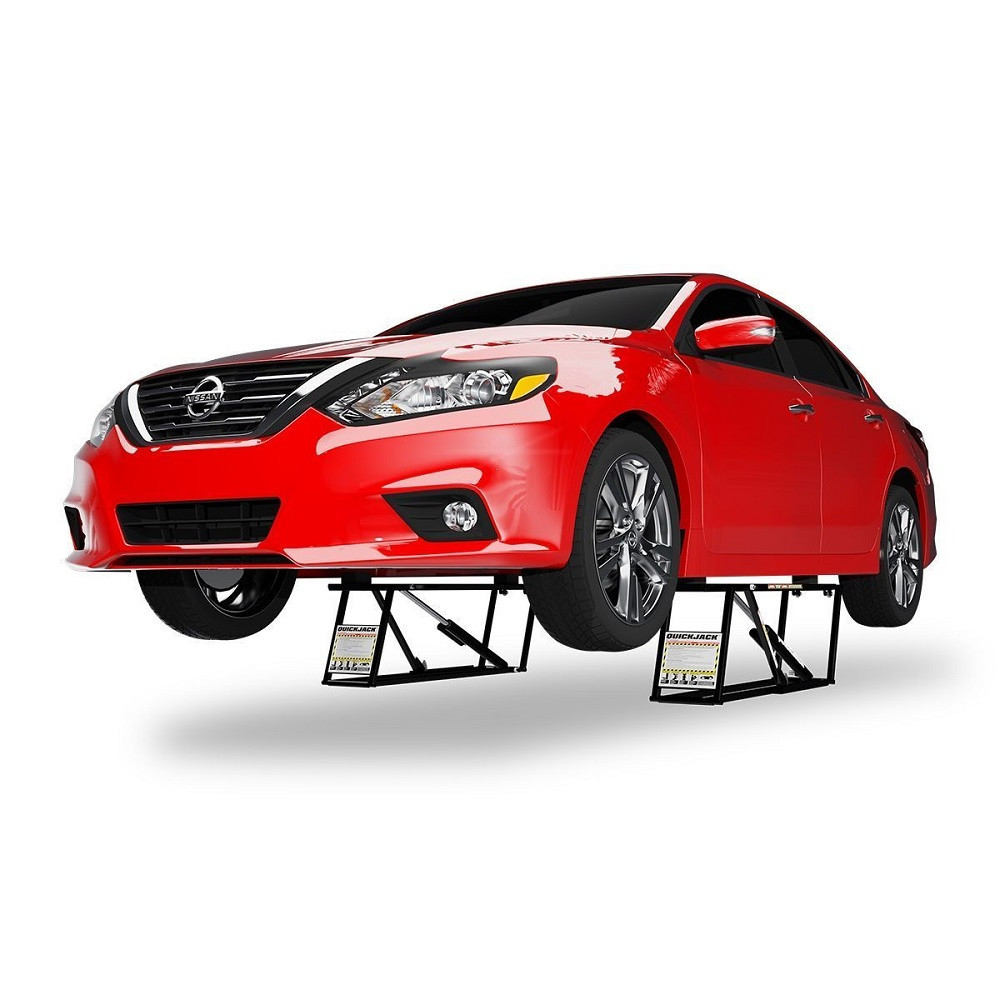

Type Portable Car Lift
Phase 1PH
Frequency 50/60 HZ
