Fully Lowered:
5" (127 mm)
1st Lock:
21" (533 mm)
2nd Lock:
32" (813 mm)
3rd Lock:
38.75" (984 mm)
Full Rise:
44" (1,118 mm)
Lifting capacity:
6,000 lbs. (2,722 kg)
Lifting height:
44" (1,118 mm) / ( minus 4-3/8" for sub-surface flooring)
Lifting height + blocks:
46" (1,168 mm) / ( minus 4-3/8" for sub-surface flooring)
Lift platform dimensions:
19" x 67" (484 mm x 1,701 mm)
Width between platforms:
40" to 46" (1,018 mm to 1,168 mm)
Overall width:
Adjustable
Overall length:
67" (1,701 mm)
Lowered height:
Flush with ground
Lifting time:
35 seconds
Motor:
208-230 VAC / 60 Hz / 1 Ph
Shipping weight:
1,422-lbs. (645 kg)
Shipping dimensions:
70'' x 61'' x 25'' (1,778 mm x 1,549 mm x 635 mm)
Specifications
Capacity 6000

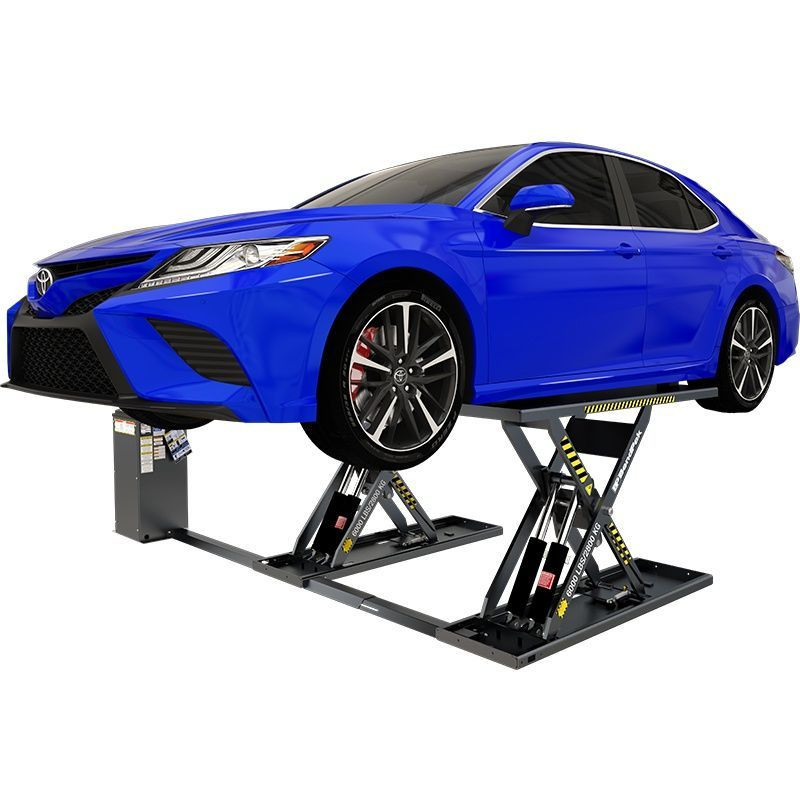

Design Scissor
Type General Svc
