Capacity
Lifting Capacity*
7,000 lbs. (3,175 kg)
*Max Capacity / Front Axle
3,500 lbs. (1,588 kg)
*Max Capacity / Rear Axle
3,500 lbs. (1,588 kg)
Rise
A - Min. Runway Height:
5" (127 mm)
B - Max. Rise:
140.25" (3,562 mm)
C - Max. Lifting Height:
145.25" (3,689 mm)
Time to Full Rise:
50 seconds
Outside Dimensions
D - Overall Width:
110.25" (2,800 mm)
E - Outside Length:
198" (5,029 mm)
F - Overall Length (includes ramps):
213" (5,688 mm)
G - Height of Columns:
158" (4,013 mm)
Top Lock Height:
143.82in" (3,653 mm)
Inside Dimensions
H - Width Between Columns:
100.25" (2,546 mm)
I - Drive-Thru Clearance:
86.5" (2,197 mm)
Runways
J - Runway Width:
19" (483 mm)
K - Length of Runways:
182.25" (4,629 mm)
L - Width Between Runways:
35" (889 mm) or 41" (1,041 mm)
M - Runway Centerline:
57" (1,448 mm) or 63" (1,600 mm)
N - Outside Edge of Runways:
75.75" (1,924 mm) or 82" (2,083 mm)
Minimum Wheelbase
Rated Capacity:
135" (3,429 mm)
75% Capacity:
115" (2,921 mm)
50% Capacity:
95" (2,413 mm)
25% Capacity:
80" (2,032 mm)
Locking
Locking Positions:
31
Lock Spacing:
Every 4" (102 mm)
Power Unit
Motor:
208-230 VAC / 50-60 Hz / 1Ph
Noise:
45 dB
Shipping
Weight:
2,254 lbs. (1022 kg)
Dimensions:
192'' x 22'' x 31'' (4,876 mm x 558 mm x 787 mm)
Specifications
Capacity 7000

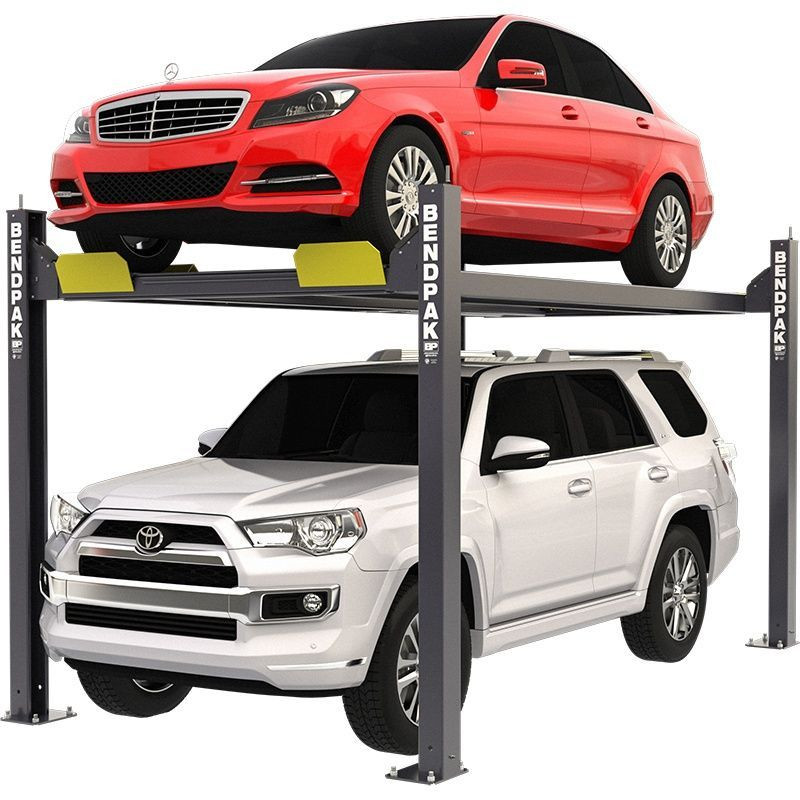

Design Four-Post
Type Parking
