Style
Style:

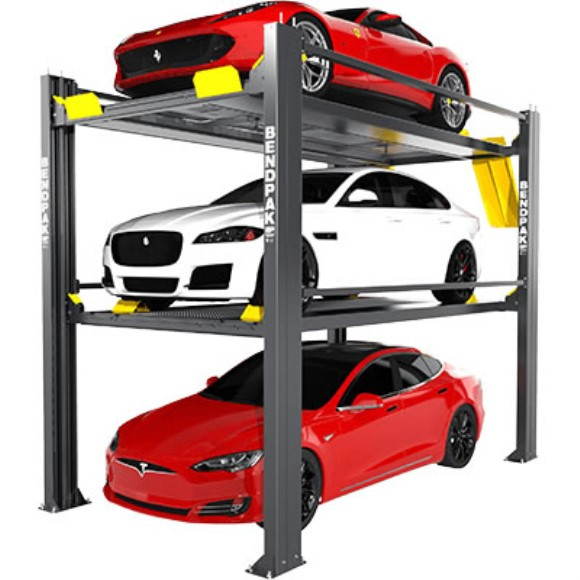

Multi-Level Parking Lift
Top Platform
Lifting Capacity*
7,000 lbs. (3,175 kg)
*Max Capacity / Front Axle
3,500 lbs. (1,588 kg)
*Max Capacity / Rear Axle
3,500 lbs. (1,588 kg)
A - Overall Width
110.5" (2,807 mm)
B - Overall Length
241.75" (6,140 mm)
C - Height of Columns
157.75" (4,007 mm)
D - Drive-thru Clearance
86.5" (2,197 mm)
E - Maximum Rise
139.5" (3,543Â mm)
F - Maximum Lifting Height
144" (3,6​67 mm)
G - Distance Between Columns
100" (2,546 mm)
H - Runway Width
19" (482 mm)
I - Width Between Runways
35" (889 mm) or 41" (1,041 mm)
J - Runway Length
180.25" (4,578 mm)
Min. Wheelbase @ rated Capacity 1
135" (3,429 mm)
Min. Wheelbase @ 75% Capacity 1
115" (2,921 mm)
Min. Wheelbase @ 50% Capacity 1
95" (2,413 mm)
Min. Wheelbase @ 25% Capacity 1
80" (2,032 mm)
Locking Positions
31
Locking Spacing
Every 4" (102 mm)
Lifting Time to Max. Rise
90 seconds
Motor
220 VAC / 60 Hz / 1 Ph
Bottom Platform
Lifting Capacity*
9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle
4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)
A - Overall Width
110.5" (2,807 mm)
B - Overall Length
241.75" (6,1 40Â mm)
C - Height of Columns
157.75" (4,007 mm)
D - Drive-thru Clearance
86.5" (2,197Â mm)
E - Maximum Rise
70" (1,7​83 mm)
F - Maximum Lifting Height
72.25" (1,​835 mm)
G - Distance Between Columns
100" (2,546 mm)
H - Runway Width
19" (482 mm)
I - Width Between Runways
35" (889 mm) or 41" (1041 mm) ​
J - Runway Length
165.5" (4,20​4 mm)
Min. Wheelbase @ rated Capacity 1
125" (3,175 mm)
Min. Wheelbase @ 75% Capacity 1
​105" (2,​667 mm)
Min. Wheelbase @ 50% Capacity 1
​85" (2,​159 mm)
Min. Wheelbase @ 25% Capacity 1
7​0" (1,​778 mm)
Locking Positions
13
Locking Spacing
Every 4" (102 mm)
Lifting Time to Max. Rise
50 seconds
Motor
220 VAC / 60 Hz / 1 Ph
Shipping
Shipping Weight:
5,296-lbs (2,402 kgs)
Specifications
Capacity 9000
Design Four-Post
Type Parking
