BendPak 1302BAS-DLX-601 : SA Tube Bender, 302 Tooling Pkg

Product Description

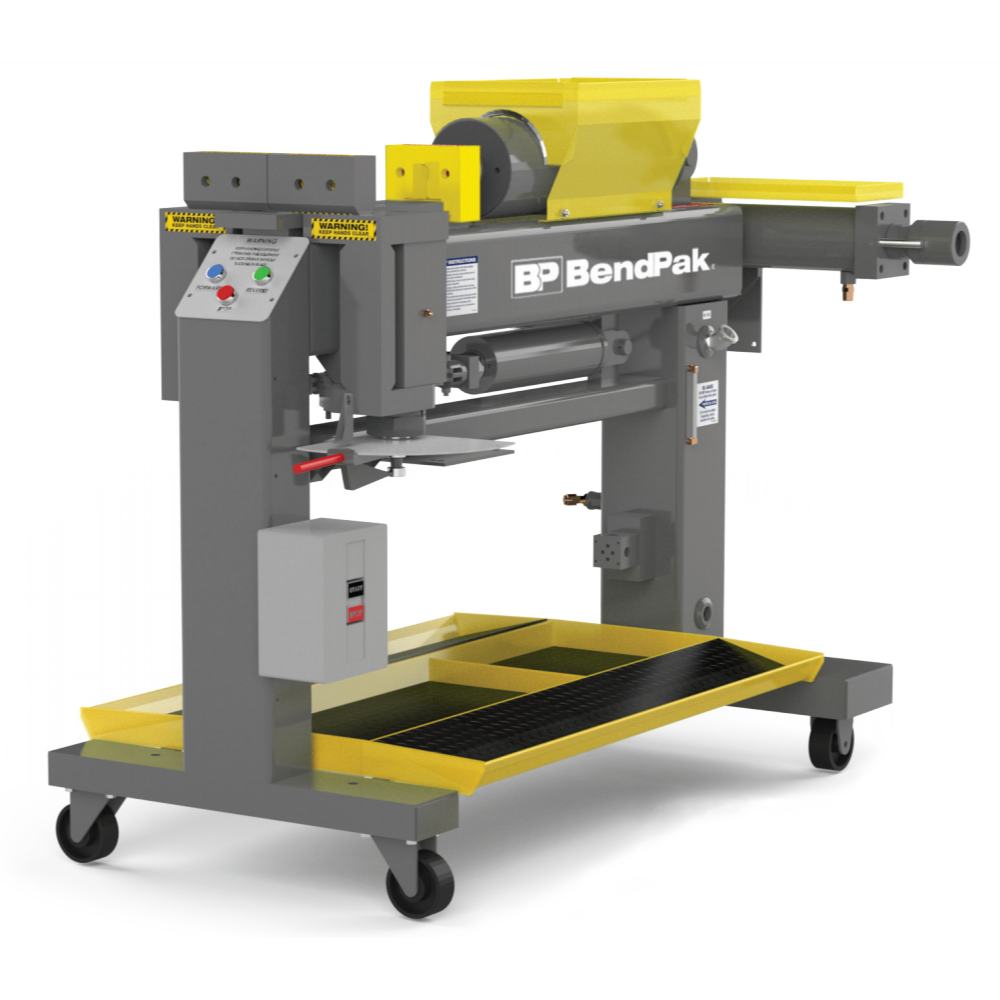

The BendPak 1302BAS-DLX-601 Automatic Exhaust Tube Bender is a powerful, professional-grade hydraulic bending machine designed for precision exhaust pipe fabrication and automotive tubing applications. Equipped with a 302 Tooling Package, 5 HP motor, and high-speed hydraulic system, this tube bender delivers efficient, accurate, and consistent bending performance for demanding automotive workshops.

Engineered for professional exhaust fabrication and custom tubing applications, the BendPak 1302BAS Series features automatic and manual bending controls, quick-release bending dies, and a convenient side-loading swager. Its dual end-finishing units support precise OE-style expansions and flares, while the high-speed clampless swager and internal expander simplify tube finishing operations.

Built with a rigid 6" x 6" x 3/8" welded-steel frame, commercial-grade hydraulic cylinders, and precision-ground bending heads, the 1302BAS-DLX-601 is designed for dependable operation. Additional features such as remote foot controls, industrial-grade casters, integrated pressure gauges, and organized tooling trays help improve productivity and convenience.

Ideal for automotive exhaust shops, custom fabrication facilities, performance workshops, and professional service centers, the BendPak 1302BAS-DLX-601 provides a comprehensive solution for efficient exhaust pipe bending, expanding, flaring, and finishing.

Key Features:

• Automatic and Manual Bending: Three-button control system allows convenient selection of bending operations.
• 302 Tooling Package: Includes tooling designed for professional exhaust pipe bending and finishing applications.
• Powerful 5 HP Motor: Delivers dependable power for demanding tubing fabrication tasks.
• High-Speed Hydraulic Pump: Direct-drive, 4 GPM pump supports efficient hydraulic operation.
• Dual End-Finishing Units: Two separate rear-mounted units support tube flaring and expanding operations.
• Side-Loading Swager: Space-saving design provides convenient access for tube end finishing.
• High-Speed Clampless Swager: Helps simplify and accelerate swaging operations.
• Internal Tube Expander: Supports precise tube expansion for exhaust fabrication.
• Quick-Release Bending Dies: Reduce setup time and simplify tooling changes.
• Twist-Lock Tooling System: Provides convenient tooling installation and adjustment.
• Drop-In Swaging Collar: Makes swaging operations quick and efficient.
• Precision-Ground Bending Heads: Ground to within 0.002" for accurate bending performance.
• Heavy-Duty Welded-Steel Frame: Features a rigid 6" x 6" x 3/8" structural frame.
• Commercial-Grade Hydraulic Cylinders: Designed for demanding professional applications.
• Chrome-Moly Cylinder Shafts: Provide strength and durability for hydraulic operation.
• 2.5-Inch Oversized Barrel Shafts: Designed for dependability and reduced maintenance.
• One-Piece Barrel Construction: Helps maintain proper alignment between the bending gates and ram.
• Integrated Power-Relief Valve: Provides hydraulic pressure control.
• Adjustable Pressure Valve: Front-mounted design allows convenient pressure adjustment.
• Hydraulic Pressure Gauges: Allow operators to monitor system pressure during operation.
• Remote Foot Controls: Provide convenient hands-free operation from a distance.
• NEMA-Rated Electrical Controls: Include overload protection to help safeguard electrical components.
• Enclosed Control System: Helps maintain an organized bending area.
• Industrial-Grade Casters: Allow convenient movement and positioning within the workshop.
• Heat-Treated Tooling: Designed for durability and extended service life.
• Integrated Tool Trays: Keep bending and finishing accessories organized.
• Hydraulic Oil Filtration: Canister oil filter helps maintain clean hydraulic fluid.
• Large Hydraulic Reservoir: Supports hydraulic oil cooling and fluid management.
• Oil Sight Gauges: Allow convenient visual inspection of hydraulic fluid levels.
• Standard Grease Fittings: Simplify routine lubrication and maintenance.

Technical Highlights:

• Brand: BendPak
• Part Number / SKU: 1302BAS-DLX-601
• Product Series: 1302BAS
• Product Type: Automatic Hydraulic Exhaust Tube Bender
• Tooling Package: 302 Tooling Package
• Motor Power: 5 HP
• Hydraulic Pump: Direct-Drive, High-Speed
• Pump Flow Rate: 4 GPM
• Bending Operation: Automatic / Manual
• Control System: Three-Button Controls and Remote Foot Operation
• End-Finishing Configuration: Dual Rear-Mounted Units
• Swaging System: Side-Loading, High-Speed Clampless Swager
• Expansion System: Internal Expander
• Tooling System: Quick-Release Bending Dies and Twist-Lock Tooling
• Frame Construction: 6" x 6" x 3/8" Welded Steel
• Bending Head Precision: Ground to Within 0.002"
• Barrel Shaft Diameter: 2.5 Inches
• Hydraulic Cylinders: Commercial-Grade with Chrome-Moly Shafts
• Electrical Controls: NEMA-Rated Switch Box with Overload Protection
• Mobility: Industrial-Grade Casters
• Hydraulic System Features: Pressure Gauges, Adjustable Pressure Valve, Oil Filter, and Oil Sight Gauges
• Primary Applications: Exhaust Pipe Fabrication, Tube Bending, Swaging, Expanding, and Flaring

The BendPak 1302BAS-DLX-601 Automatic Exhaust Tube Bender combines powerful 5 HP hydraulic performance, precision bending capabilities, versatile end-finishing functions, and the 302 Tooling Package to deliver a comprehensive exhaust fabrication solution. Its heavy-duty construction, efficient controls, and convenient tooling features make it an excellent choice for professional automotive shops seeking productivity, precision, and dependable performance.
