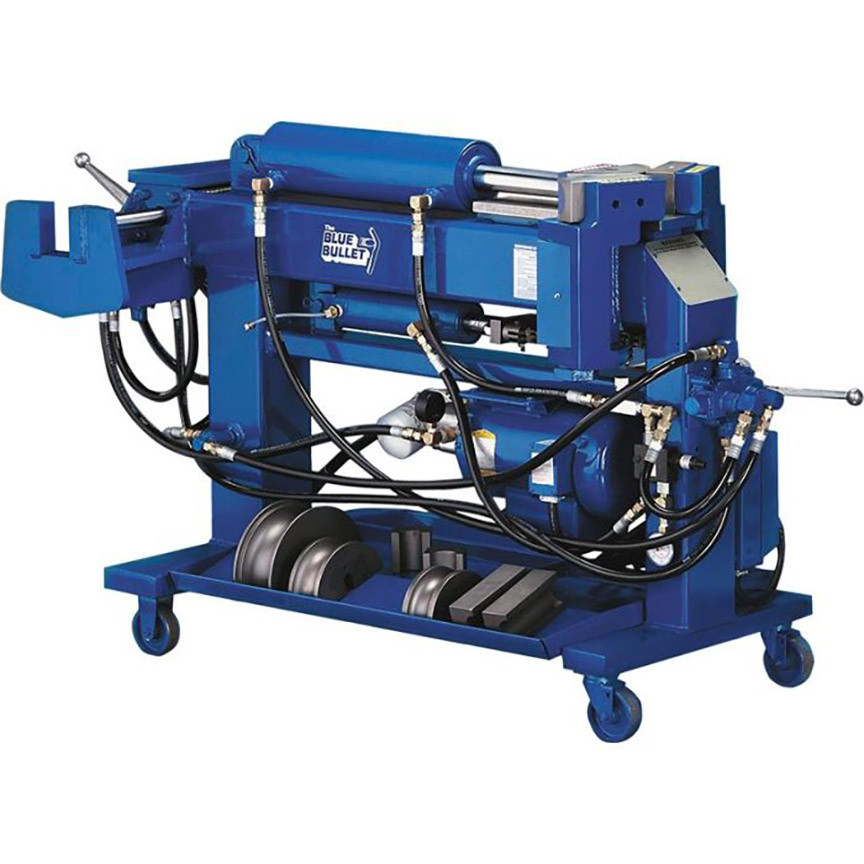

BendPak BB-2-DLX-601 : Man Tube Bender - 302 Tooling Pkg

Product Description

The BendPak BB-2-DLX-601 Manual Exhaust Tube Bender is a professional-grade hydraulic bending machine designed for precise exhaust pipe fabrication, tubing modification, and custom automotive applications. Featuring a powerful 5 HP motor, high-speed 4 GPM hydraulic pump, and heavy-duty welded-steel construction, this tube bender delivers dependable performance for demanding workshop operations.

Engineered for professional exhaust fabrication and automotive service applications, the BB-2 features quick-release bending dies, twist-lock tooling, and dual rear-mounted end-finishing units for tube flaring and expanding. Its high-speed clampless swager, internal expander, and convenient drop-in collar help simplify tube finishing operations while reducing setup time.

Built with a rigid 6" x 6" x 3/8" welded-steel frame, commercial-grade hydraulic cylinders, and precision-ground bending heads, the BB-2-DLX-601 is designed for durability and accurate operation. Additional features such as hydraulic pressure gauges, industrial-grade casters, adjustable pressure controls, and integrated tool trays improve convenience and workshop productivity.

Ideal for automotive exhaust shops, custom fabrication facilities, performance garages, and professional service centers, the BendPak BB-2-DLX-601 offers a comprehensive solution for manual exhaust pipe bending, swaging, expanding, and flaring.

Key Features:

• Manual Hydraulic Bending: Provides operator-controlled bending for professional exhaust fabrication.
• Powerful 5 HP Motor: Delivers dependable power for demanding tubing applications.
• High-Speed Hydraulic Pump: Direct-drive, 4 GPM pump supports efficient hydraulic operation.
• Dual End-Finishing Units: Two rear-mounted units support tube flaring and expanding.
• High-Speed Clampless Swager: Helps accelerate tube swaging operations.
• Internal Tube Expander: Supports precise exhaust tubing expansion.
• Open-Sided Swager Box: Improves tooling access and helps reduce accidental tool interference.
• Quick-Release Bending Dies: Allow faster tooling changes and reduced setup time.
• Twist-Lock Tooling: Provides convenient tooling installation and adjustment.
• Drop-In Swaging Collar: Simplifies swaging operations for improved efficiency.
• Precision-Ground Bending Heads: Ground to within 0.002" for accurate bending performance.
• Heavy-Duty Welded-Steel Frame: Features rigid 6" x 6" x 3/8" steel tube construction.
• Commercial-Grade Hydraulic Cylinders: Designed for demanding workshop applications.
• Chrome-Moly Cylinder Shafts: Provide strength and durability during hydraulic operation.
• Pass-Through Cylinder Stem: Extends through the primary frame for the machine's hydraulic bending configuration.
• 2.5-Inch Oversized Barrel Shafts: Designed for dependable operation and reduced maintenance.
• One-Piece Barrel Design: Helps maintain alignment between the bending gates and ram.
• Integrated Power-Relief Valve: Provides hydraulic pressure management.
• Front-Mounted Adjustable Pressure Valve: Allows convenient pressure adjustment.
• Hydraulic Pressure Gauges: Enable operators to monitor system pressure.
• NEMA-Rated Electrical Controls: Include overload relays for electrical protection.
• Enclosed Control System: Helps maintain a clean and organized bending area.
• Industrial-Grade Casters: Make repositioning the machine around the workshop more convenient.
• Heat-Treated Tooling: Designed for durability and extended service life.
• Integrated Tool Trays: Provide convenient storage for bending and finishing accessories.
• Large Hydraulic Reservoir: Supports hydraulic fluid storage and cooling.
• Canister Oil Filter: Helps maintain clean hydraulic fluid.
• Oil Sight Gauges: Allow easy visual monitoring of hydraulic oil levels.
• Oversized High-Pressure Hose: Features a 1/2-inch hose for improved hydraulic flow and cooling.
• Standard Grease Fittings: Simplify routine lubrication and maintenance.
• Optional 180° Bending Die: Available for applications requiring additional bending capability.

Technical Highlights:

• Brand: BendPak
• Part Number / SKU: BB-2-DLX-601
• Model: BB-2
• Product Type: Manual Hydraulic Exhaust Tube Bender
• Tooling Package: 302 Tooling Package (BB-1 Tooling Package also referenced in supplied details; verify exact contents)
• Bending Operation: Manual Hydraulic
• Motor Power: 5 HP
• Hydraulic Pump: Direct-Drive, High-Speed
• Pump Flow Rate: 4 GPM
• End-Finishing Configuration: Dual Rear-Mounted Units
• Swaging System: High-Speed Clampless Swager with Open-Sided Swager Box
• Expansion System: Internal Tube Expander
• Tooling Configuration: Quick-Release Bending Dies and Twist-Lock Tooling
• Frame Construction: 6" x 6" x 3/8" Welded Steel
• Bending Head Precision: Ground to Within 0.002"
• Barrel Shaft Diameter: 2.5 Inches
• Hydraulic Cylinders: Commercial-Grade with Chrome-Moly Shafts
• Hydraulic Hose Diameter: 1/2 Inch
• Electrical Controls: NEMA-Rated Switch Box with Overload Protection
• Mobility: Industrial-Grade Casters
• Optional Tooling: 180° Bending Die Available
• Primary Applications: Exhaust Pipe Fabrication, Manual Tube Bending, Swaging, Expanding, and Flaring

The BendPak BB-2-DLX-601 Manual Exhaust Tube Bender combines powerful 5 HP hydraulic performance, precision bending components, versatile tube finishing capabilities, and heavy-duty construction to provide a dependable exhaust fabrication solution. Its user-friendly controls, efficient tooling system, and durable design make it an excellent choice for professional automotive workshops seeking consistent performance and improved productivity.
