BendPak 1302BA-DLX-601 : DA Tube Bender, 302 Tooling Pkg

Product Description

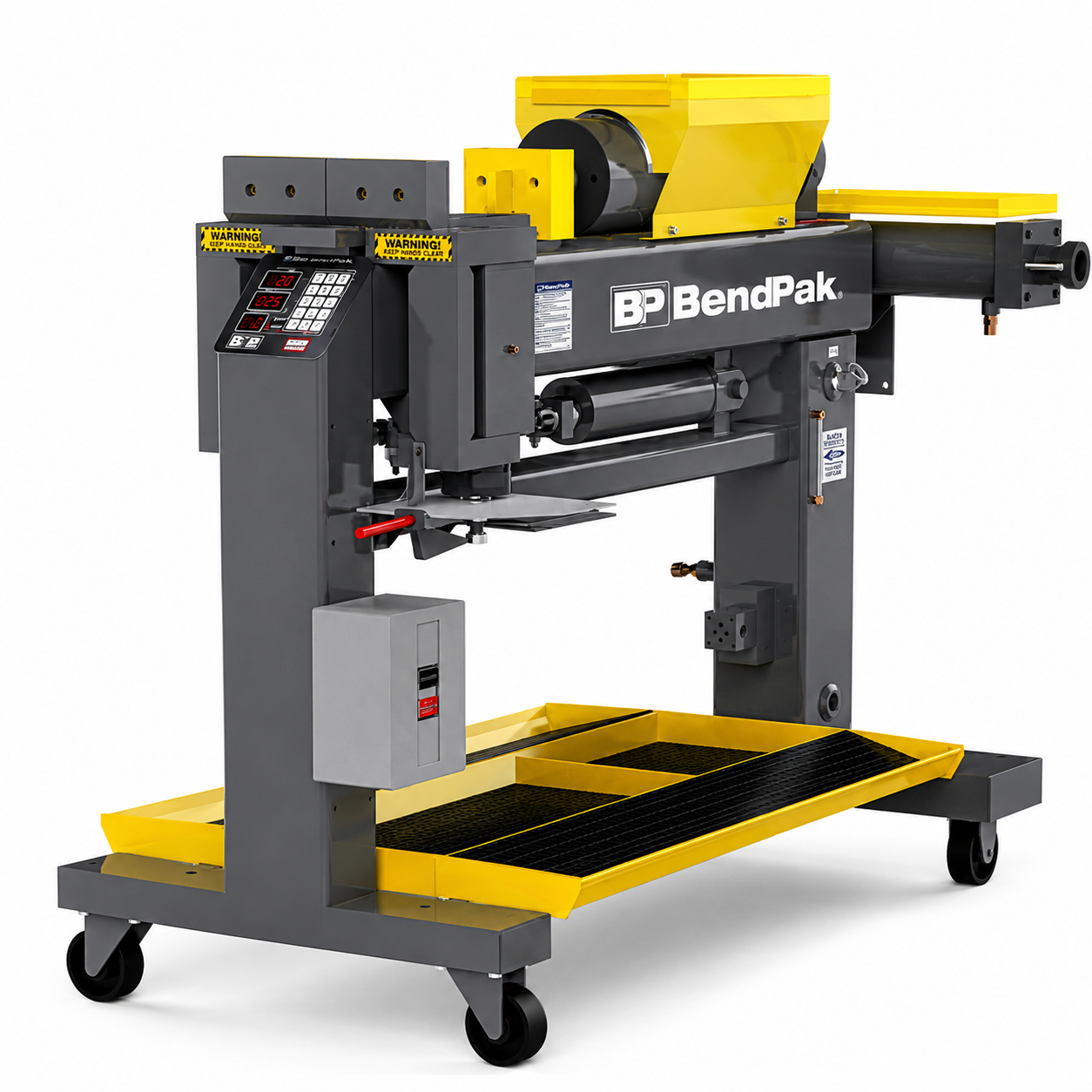

The BendPak 1302BA-DLX-601 Digital Automatic Tube Bender is a commercial-grade hydraulic bending machine designed for precision exhaust pipe fabrication, custom tubing applications, and high-volume automotive service operations. Featuring a programmable digital control system, powerful 5 HP motor, and high-speed 4 GPM hydraulic pump, this tube bender delivers accurate, consistent, and efficient bending performance for professional workshops.

Engineered for busy muffler shops, automotive fabrication facilities, and custom exhaust specialists, the 1302BA-DLX-601 offers both automatic and manual bending functions. Its advanced digital control system stores up to 99 bend-depth settings, allowing operators to reproduce bending configurations with greater consistency while reducing setup time for repetitive fabrication tasks.

Equipped with dual rear-mounted end-finishing units, a high-speed clampless swager, and an internal expander, this machine supports professional tube bending, flaring, expanding, and swaging operations. Its quick-release bending dies, twist-lock tooling, and convenient drop-in collar simplify tooling changes and improve workflow efficiency.

Built with a rigid 6" x 6" x 3/8" welded-steel frame, commercial-grade hydraulic cylinders, and precision-ground bending heads, the BendPak 1302BA-DLX-601 is designed for demanding fabrication environments. Additional features such as industrial-grade casters, hydraulic pressure gauges, enclosed controls, and integrated tool trays enhance convenience, durability, and workshop productivity.

Key Features:

• Digital Automatic Bending System: Provides programmable control for accurate and repeatable tube bending operations.
• 99 Bend-Depth Memory Settings: Stores up to 99 bending configurations for convenient setup and repetitive fabrication.
• Automatic and Manual Operation: Allows operators to select the appropriate bending mode for different applications.
• 302 Tooling Package: Supplied with tooling for professional exhaust pipe bending and finishing applications.
• Powerful 5 HP Motor: Delivers dependable hydraulic power for demanding fabrication tasks.
• High-Speed Hydraulic Pump: Direct-drive, 4 GPM pump supports efficient bending performance.
• Dual End-Finishing Units: Two rear-mounted units provide tube flaring and expanding capabilities.
• High-Speed Clampless Swager: Simplifies and accelerates tube swaging operations.
• Internal Tube Expander: Supports precise tube expansion for custom exhaust fabrication.
• Open-Sided Swager Box: Improves tooling accessibility and helps reduce accidental tool interference.
• Quick-Release Bending Dies: Reduce setup time and simplify tooling changes.
• Twist-Lock Tooling System: Allows convenient installation and adjustment of bending accessories.
• Drop-In Swaging Collar: Helps make swaging operations quick and efficient.
• Precision-Ground Bending Heads: Ground to within 0.002" for accurate bending performance.
• Heavy-Duty Welded-Steel Frame: Features rigid 6" x 6" x 3/8" structural steel construction.
• Commercial-Grade Hydraulic Cylinders: Designed for demanding professional applications.
• Chrome-Moly Cylinder Shafts: Provide strength and durability during hydraulic operation.
• Pass-Through Cylinder Stem: Extends through the primary frame as part of the hydraulic bending mechanism.
• 2.5-Inch Oversized Barrel Shafts: Designed for dependable operation and reduced maintenance.
• One-Piece Barrel Construction: Helps maintain alignment between the bending gates and ram.
• Integrated Power-Relief Valve: Provides hydraulic pressure management.
• Front-Mounted Adjustable Pressure Valve: Allows convenient pressure adjustment.
• Hydraulic Pressure Gauges: Enable operators to monitor system pressure during operation.
• NEMA-Rated Electrical Controls: Feature overload relays for electrical protection.
• Enclosed Control System: Helps maintain an organized bending area.
• Industrial-Grade Casters: Allow convenient movement and positioning around the workshop.
• Heat-Treated Tooling: Designed for durability and extended service life.
• Integrated Tool Trays: Keep bending and finishing accessories organized.
• Large Hydraulic Reservoir: Supports hydraulic fluid storage and cooling.
• Canister Oil Filter: Helps maintain clean hydraulic fluid.
• Oil Sight Gauges: Allow easy visual inspection of hydraulic fluid levels.
• Oversized High-Pressure Hose: Features a 1/2-inch hydraulic hose for improved flow and cooling.
• Standard Grease Fittings: Simplify routine lubrication and maintenance.
• Optional 180° Bending Die: Available for applications requiring additional bending capability.

Technical Highlights:

• Brand: BendPak
• Part Number / SKU: 1302BA-DLX-601
• Product Series: 1302BA
• Product Type: Digital Automatic Hydraulic Tube and Pipe Bender
• Tooling Package: 302 Tooling Package
• Bending Operation: Digital Automatic / Manual
• Digital Memory Capacity: Up to 99 Bend-Depth Settings
• Motor Power: 5 HP
• Hydraulic Pump: Direct-Drive, High-Speed
• Pump Flow Rate: 4 GPM
• End-Finishing Configuration: Dual Rear-Mounted Units
• Swaging System: High-Speed Clampless Swager with Open-Sided Swager Box
• Expansion System: Internal Tube Expander
• Tooling Configuration: Quick-Release Bending Dies and Twist-Lock Tooling
• Frame Construction: 6" x 6" x 3/8" Welded Steel
• Bending Head Precision: Ground to Within 0.002"
• Barrel Shaft Diameter: 2.5 Inches
• Hydraulic Cylinders: Commercial-Grade with Chrome-Moly Shafts
• Hydraulic Hose Diameter: 1/2 Inch
• Electrical Controls: NEMA-Rated Switch Box with Overload Protection
• Mobility: Industrial-Grade Casters
• Optional Tooling: 180° Bending Die Available
• Primary Applications: Exhaust Pipe Fabrication, Digital Tube Bending, Swaging, Expanding, and Flaring

The BendPak 1302BA-DLX-601 Digital Automatic Tube Bender combines programmable digital precision, 99 bend-depth memory settings, powerful 5 HP hydraulic performance, and versatile tube finishing capabilities to deliver a comprehensive exhaust fabrication solution. Its heavy-duty construction, efficient tooling system, and automatic bending functionality make it an excellent choice for professional automotive shops seeking consistent results, reduced setup times, and improved fabrication productivity.
