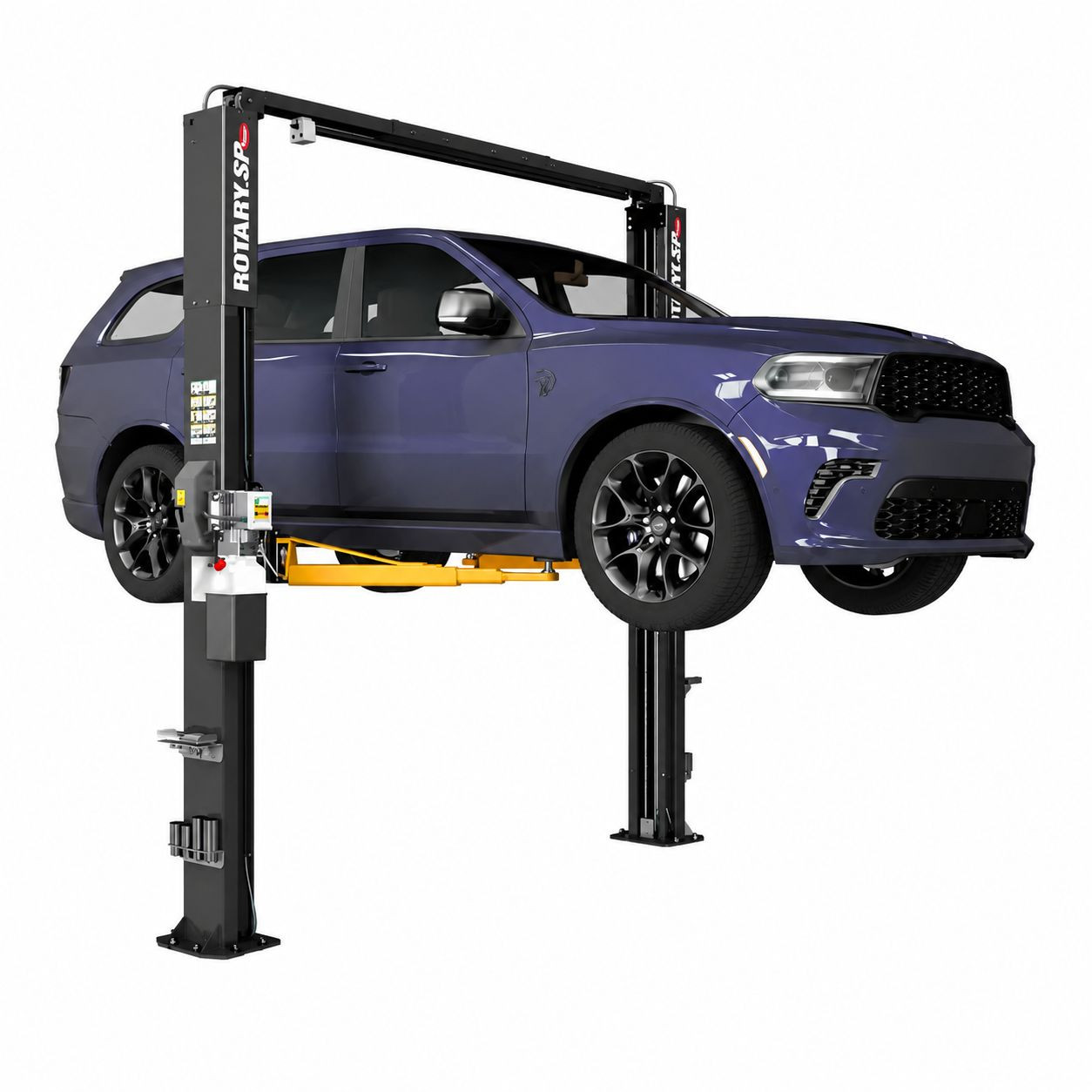

SPQ10-AV
|
STANDARD POWER
SPQ10N21M0
|
|
Rise*
STANDARD
|
72 3/4" - 78 1/4" |
| Overall Height | 11' 10 1/2" |
| Overall Width Range | 11' 5 5/8" - 12' 5 5/8" |
| Drive-thru Range | 102 1/2" - 114 1/2" |
| Inside Columns Range | 114 3/4" - 126 3/4" |
| Arm Reach: Min / Max | 28 1/2" / 58 1/4" |
| Min. Adapter Height** | 3 3/8" |
| Min. Bay Size | 12' x 24' |
| Min. Ceiling Height |
12'
STANDARD
|
| Motor / Voltage 1Ø | 2 HP, 208-230V |
| Time of Full Rise*** | 45 seconds |
Specifications
Capacity 10000
Design Two-Post
Configuration Symmetric
Colors Black
Overall Height 142 1/2"
