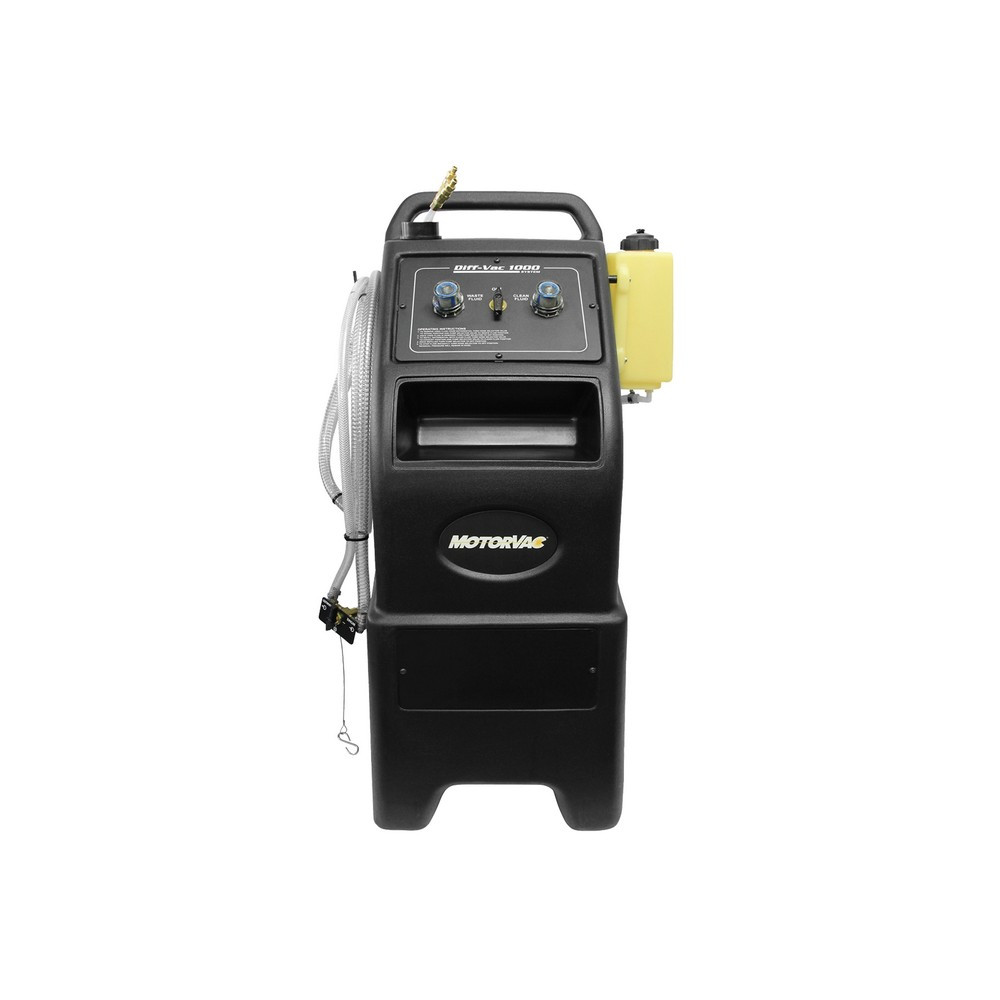

MotorVac 500-9025: Diff Vac 1000

Product Description

Key Product Features:

• Differential and multi-fluid service capability: Extracts or replaces differential fluid, engine oil, transmission fluid, power steering fluid, coolant, and transfer case lubricant.
• Ideal for differential maintenance: Removes contaminated gear oil and refills the differential with clean lubricant without requiring the cover to be removed for many routine services.
• Manual transmission fluid service: Designed to evacuate and refill compatible manual transmissions through accessible drain, fill, or service openings.
• Transfer case fluid exchange: Helps technicians perform controlled drain-and-fill service on compatible four-wheel-drive and all-wheel-drive transfer cases.
• Engine oil extraction capability: Can evacuate oil from compatible engine oil pans through an appropriate access point, making it useful where conventional drain-plug access is difficult.
• Power steering fluid extraction: Supports removal and replacement of compatible power steering fluid through the reservoir.
• Two dedicated diaphragm pumps: Uses separate pumps for clean and used fluid to help prevent cross-contamination between the two circuits.
• Deep vacuum performance: The diaphragm-pump design generates strong vacuum for evacuating thick, high-viscosity lubricants.
• Two 5 CFM diaphragm pumps: Current CPS technical information identifies two 5 CFM pumps for powerful fluid extraction and refill operation. Some reseller literature describes them as 5 GPM pumps, but the current CPS specification is the more appropriate reference.
• Works with cold, heavy fluids: Designed to extract viscous gear oils even when lower temperatures make the lubricant more difficult to move.
• Air-operated design: Runs from shop air and does not require connection to the vehicle battery or an AC electrical outlet.
• Recommended air supply: Requires approximately 80–150 PSI of shop-air pressure for proper operation.
• No battery connection required: Saves setup time and avoids routing electrical cables to the serviced vehicle.
• Simple evacuation and refill process: Allows technicians to vacuum out used fluid and refill the component from the machine’s clean-fluid tank.
• No cooler-line disconnection required: Many services can be completed without disconnecting vehicle fluid lines or hoses.
• Dedicated clean-fluid tank: Holds approximately 2 liters / 2.1 quarts of new lubricant for controlled component refilling.
• Dedicated waste-fluid tank: Includes an approximately 3.8-liter / 1-gallon waste reservoir for collecting extracted fluid.
• Optional continuous drain hose: An optional waste drain hose allows recovered fluid to be directed into a larger external container, effectively removing the internal waste-capacity limitation.
• Eight-foot service hoses: Provides approximately 8 feet of hose length for convenient access to vehicles positioned on lifts or over service pits.
• Supplied vehicle adapters: Includes adapters that connect the machine to common differential, transmission, and fluid-reservoir service openings.
• 5/16-inch adapter included: Supplied with a 5/16-inch service adapter for larger accessible openings.
• 1/4-inch adapter included: Includes a 1/4-inch service adapter for smaller fill or extraction openings.
• Use of larger adapter supported: MotorVac recommends using the larger adapter whenever the application permits for faster fluid movement.
• Clean- and waste-fluid filters: Dedicated filters help protect the pumps and fluid circuits from debris during evacuation and refill service.
• Pump selector valve: Allows the technician to select the required evacuation or refill function during service.
• Hose selector valve: Directs fluid through the appropriate service hose and simplifies operation.
• Controlled refill capability: Pumps new lubricant directly from the clean tank into the serviced component, reducing the mess and effort associated with manual bottle pumps.
• Reduced contamination risk: Separate pumps, tanks, hoses, and filtration pathways maintain separation between clean and used fluid.
• Cleaner workshop operation: Closed extraction and refill hoses help reduce spills, dripping bottles, and gear-oil cleanup around the vehicle.
• Compact mobile cabinet: The upright wheeled configuration allows the machine to be positioned beside a vehicle lift and moved between service bays.
• Machine dimensions: Approximately 38.5 inches high × 19.5 inches wide × 26.5 inches deep.
• Shipping dimensions: Approximately 40 inches high × 23.5 inches wide × 20 inches deep.
• Shipping weight: Approximately 43 lbs.
• One-year warranty: Current CPS product information lists a one-year equipment warranty.
• Brake-fluid restriction: The Diff-Vac 1000 must not be used with brake fluid.
• Manufacturer part number: 500-9025.
• Professional applications: Ideal for automotive dealerships, differential and transmission shops, independent repair facilities, fleet maintenance departments, quick-lube centers, municipal garages, and automotive training programs.
