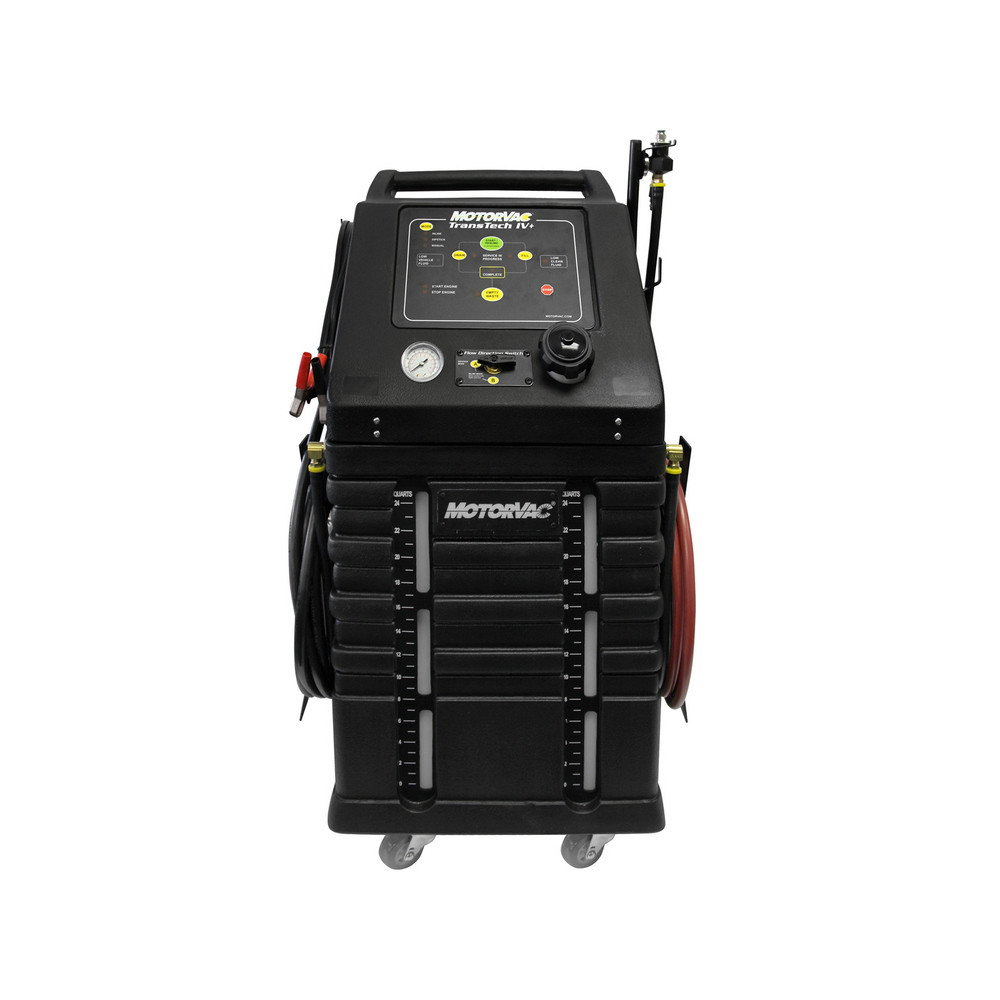

MotorVac 500-1125B: Transtech IV

Product Description

Key Product Features:

• Two transmission exchange methods: Combines inline cooler-line and dipstick-tube fluid exchange capabilities in one cabinet.
• Automatic inline ATF exchange: Connect the machine to a transmission cooler line, select the service, and start the automatic exchange process.
• One-to-one fluid replacement: Directs used ATF into the waste tank while returning a corresponding amount of new fluid to the transmission.
• Walk-away convenience: Automatic inline operation minimizes technician involvement after the service has been started.
• Dipstick-tube exchange mode: Performs transmission fluid exchanges through the vehicle’s dipstick tube when cooler-line connections are inconvenient or unavailable.
• No adapters required for dipstick service: The dipstick exchange method provides convenient access without disconnecting transmission cooler lines or installing vehicle-specific adapters.
• Expanded vehicle coverage: Dual exchange capability helps shops service vehicles with conventional cooler-line access as well as models better suited to dipstick extraction.
• Patented Level Synchronization: Helps maintain the proper transmission fluid level and prevents the system from becoming overfilled or underfilled during exchange.
• Automatic bypass protection: Maintains transmission-fluid circulation and prevents the vehicle from running out of fluid when the exchange is completed or interrupted.
• Drain Pan function: Removes fluid from the transmission pan before filter replacement, helping technicians complete the procedure with less mess.
• Transmission cooler flush function: Allows technicians to flush the transmission cooler and cooler lines to help remove contaminated fluid and trapped debris.
• High-volume fluid pump: Delivers rapid new-fluid transfer for efficient transmission service and improved shop productivity.
• High-volume waste evacuation: A dedicated waste-fluid pump and drain hose help empty collected ATF quickly after service.
• 26-quart new-fluid reservoir: Accommodates large transmission capacities and supports complete exchanges on many passenger cars, SUVs, vans, and light trucks.
• 26-quart waste tank: Provides dedicated storage for used transmission fluid collected during the exchange.
• Suitable for filter replacement services: The machine can drain the transmission before pan removal and then refill or exchange the fluid after a new filter is installed.
• Fluid-type change capability: Operating procedures allow technicians to empty the new-fluid system when switching between different ATF specifications.
• Pressure monitoring: The control panel includes a pressure gauge that indicates transmission fluid circulation during inline operation.
• Clear operating controls: Mode selection, start, resume, drain, and fill controls simplify transmission service setup and operation.
• Audible low-fluid warning: Alerts the operator when the machine detects an insufficient new-fluid supply.
• Visual status indicators: Control-panel lights communicate fluid conditions, operating modes, and service progress.
• Automatic service completion: The system completes the selected inline exchange and enters bypass mode without requiring continuous technician supervision.
• 12V DC operation: Draws power from the serviced vehicle, eliminating the need for a nearby AC electrical outlet.
• 8-amp input rating: The current official CPS specification lists machine input at 12V DC and 8 amps.
• 10-foot power cord: Provides convenient access to the vehicle battery while allowing flexible machine placement.
• 10-foot service hoses: Offer adequate reach for connecting the machine while it remains safely positioned beside the vehicle.
• Adapter compatibility: Cooler-line operation supports MotorVac transmission adapter kits for expanding coverage across North American, Asian, and European vehicles.
• Space-saving two-in-one design: Combining two exchange methods in one machine reduces workshop congestion and equipment investment.
• Mobile workshop cabinet: The upright rolling design makes the unit easy to move between vehicle lifts and service bays.
• Machine dimensions: Approximately 39 inches high, 21 inches wide, and 17 inches deep.
• Shipping weight: Approximately 90 pounds.
• One-year manufacturer warranty: Covered by MotorVac’s one-year equipment warranty.
• Manufacturer part number: 500-1125B.
• Professional applications: Ideal for automotive dealerships, transmission repair facilities, independent garages, fleet service departments, quick-lube centers, and technical training programs.
