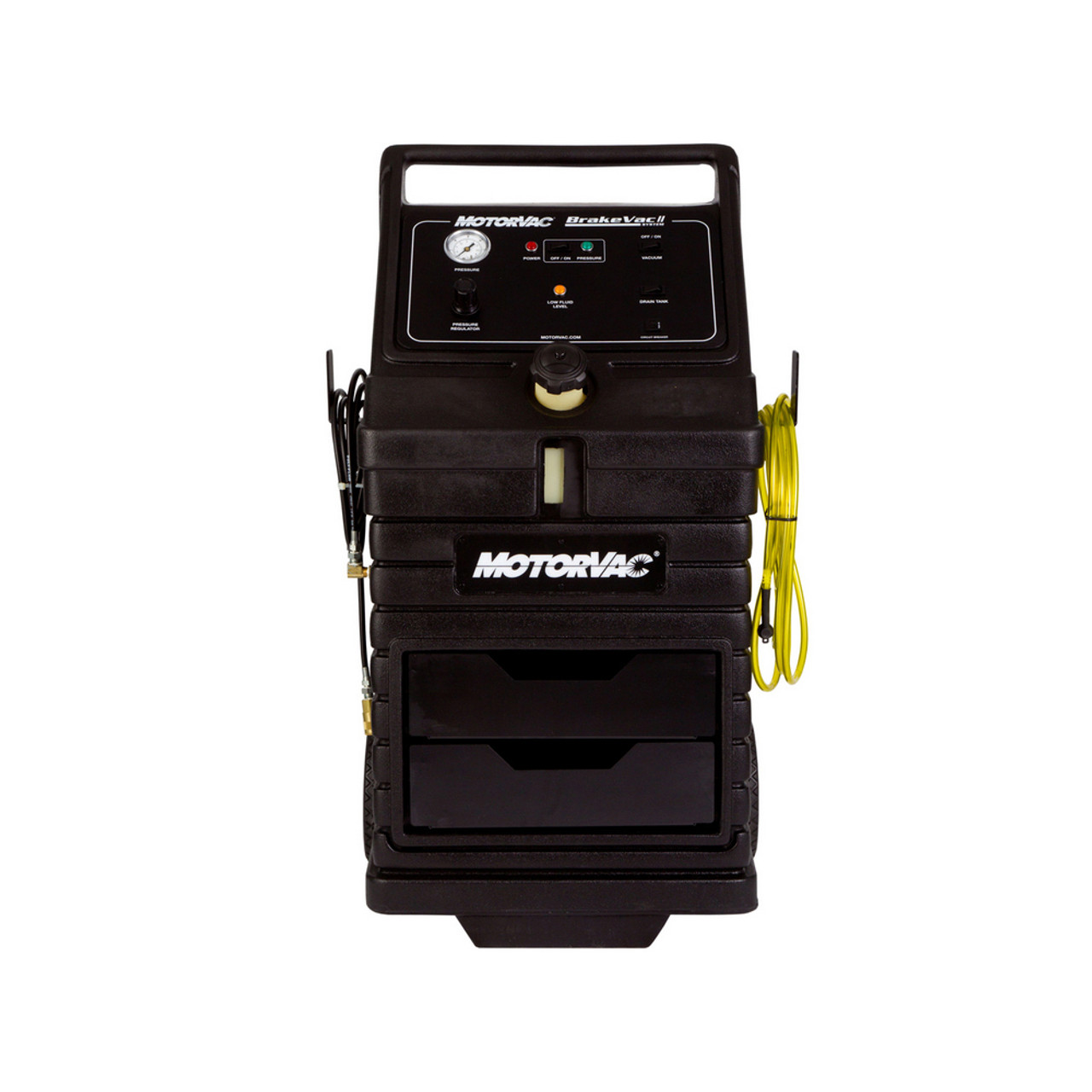

MotorVac 500-8100: BrakeVac II STD Adapters

Product Description

Key Product Features:

• Simultaneous pressure and vacuum operation: Applies controlled pressure to the master cylinder while using vacuum assistance to extract old brake fluid from the wheel bleeders.
• Fast brake fluid exchange: MotorVac states that the machine can complete a full brake system flush in approximately 10 minutes, helping increase workshop productivity.
• One-person service capability: Allows a single technician to perform a complete brake bleeding and fluid exchange procedure without an assistant operating the pedal.
• Suitable for ABS systems: Designed for modern hydraulic brake and clutch systems, with particular suitability for anti-lock braking systems.
• Pressure-assisted fluid delivery: Maintains a controlled supply of clean brake fluid to the vehicle reservoir during bleeding.
• Vacuum fluid extraction: The integrated vacuum pump helps remove old fluid from the master cylinder reservoir before the flushing procedure begins.
• Adjustable pressure regulator: Allows the technician to set the appropriate operating pressure for different vehicle applications.
• Integrated pressure gauge: Features a gauge rated from 0 to 85 PSI / 0 to 6 bar for monitoring fluid-delivery pressure during service.
• Automatic low-fluid shutoff: Stops machine operation when the clean-fluid supply becomes too low, helping prevent air from being introduced into the vehicle’s hydraulic system.
• Dual low-fluid warning: Provides visual notification when the clean-fluid reservoir requires attention before automatically shutting down.
• Easy-to-view fluid level: A front-mounted fluid-level indicator lets technicians quickly check the amount of clean brake fluid remaining in the machine.
• Dedicated tank-drain function: A drain switch allows unused clean fluid to be removed when changing to a different brake-fluid type.
• Separate waste-fluid collection: Used brake fluid is captured in a removable external waste tank for cleaner handling and disposal.
• Clean-fluid reservoir: Current manufacturer literature lists a 1-gallon clean-fluid tank, providing capacity for multiple typical brake services.
• One-gallon removable waste tank: The matching waste reservoir collects discharged brake fluid separately from the clean-fluid supply.
• Two high-volume pumps: Uses two pumps rated at approximately 1 GPM each to support fast pressure and vacuum operation.
• Standard adapter package included: Part number 500-8100 is supplied with a set of master-cylinder adapters for broad vehicle coverage.
• OEM-specific adapters available: Optional adapters can be purchased for additional vehicle reservoir designs and specialized applications.
• Adapter storage drawers: Integrated drawers keep adapters and service accessories organized and readily accessible.
• Long service hoses: Includes approximately 11.5-foot hoses, allowing convenient positioning beside the vehicle during brake service.
• Clear vacuum hose: Makes it easier to monitor discharged fluid and observe when clean fluid reaches the bleeder point.
• 12V DC operation: Powered from a vehicle battery or compatible 12V source, eliminating the need for a nearby AC outlet.
• 16.5-foot power cord: Provides flexible machine positioning while maintaining access to the vehicle battery.
• 15-amp circuit protection: An integrated circuit breaker helps protect the electrical system from overload conditions.
• Portable shop design: The compact rolling cabinet can be moved easily between service bays and stored without occupying excessive floor space.
• Cleaner service process: Controlled pressure, vacuum extraction, and dedicated waste collection help reduce spills around the vehicle and workshop floor.
• Near-complete fluid exchange: MotorVac describes the system as capable of delivering a virtually complete brake fluid exchange when properly connected and operated.
• Hydraulic clutch compatibility: The machine may also be used for compatible hydraulic clutch systems when the correct adapter and manufacturer procedure are followed.
• Shipping weight: Approximately 85 lbs.
• Machine-only alternative: The BrakeVac II is also sold without adapters under part number 500-8105.
• Manufacturer part number: 500-8100.
• Professional applications: Ideal for automotive dealerships, independent repair shops, brake specialists, fleet maintenance facilities, tire and service centers, and automotive training programs.
