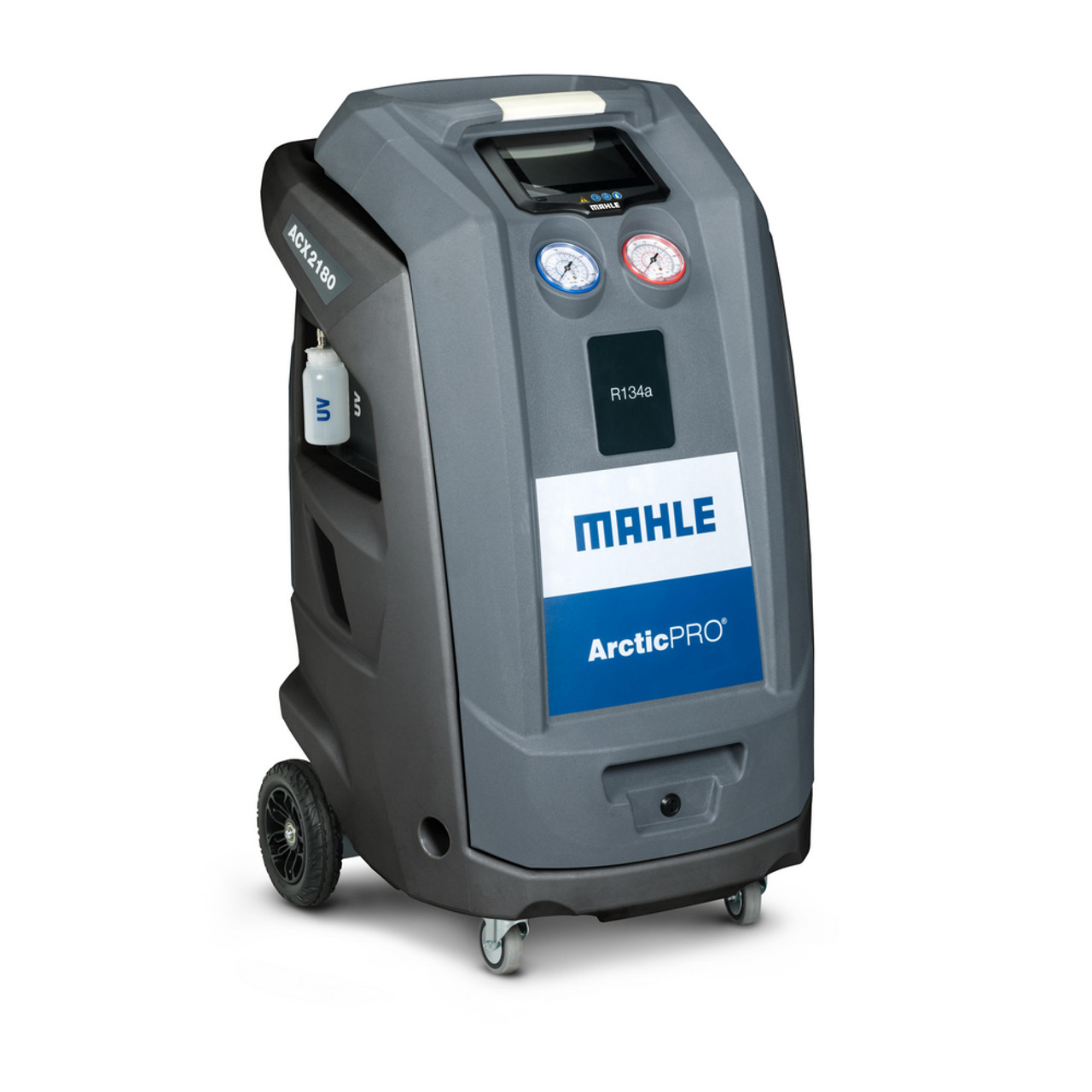

Mahle ACX2180: High Performance R134a ACS System

Product Description

Mahle ACX2180: High Performance R134a ACS System

SKU: 460 80447 00

Key Product Features:

• Genuine MAHLE ArcticPRO equipment — Model ACX2180, part number 460 80447 00, engineered for professional R134a automotive A/C service.
• Fully automatic operation — Performs recovery, recycling, evacuation, leak checking, oil management, and refrigerant charging with minimal technician supervision.
• Dedicated R134a service platform — Designed for conventional automotive A/C systems using R134a refrigerant; hybrid capability is reserved for the ACX2180H model.
• High refrigerant recovery performance — Recovers approximately 95% of refrigerant within 30 minutes under the manufacturer’s specified temperature conditions.
• Precise charging accuracy — Rated at approximately ±0.5 oz. at 70°F to 75°F, or ±15 g at 21°C to 24°C, for dependable refrigerant charging.
• Three-transducer system — Uses three pressure transducers to reduce process times compared with dual-sensor systems and improve workflow efficiency.
• 7-inch capacitive touchscreen — Large color display and intuitive user interface simplify service selection, technician training, and machine operation.
• Bright LED status indicator — Provides visible service-cycle status from anywhere in the workshop, allowing technicians to complete other tasks while the unit operates.
• Mobile app connectivity — Supports iOS and Android remote session mirroring and advanced operating functions.
• Automatic recovered-oil weighing — Measures the oil removed during recovery so technicians can accurately replenish the vehicle system.
• Dual oil injection support — Allows two oil types to be available for injection, supporting greater flexibility during conventional vehicle service.
• Integrated UV dye injection — Adds UV dye during service to support professional A/C leak detection and diagnostic workflows.
• Automatic air purge and refrigerant management — Helps control non-condensable gases while monitoring refrigerant and filter conditions for consistent operation.
• WiFi remote technical support — Allows MAHLE support personnel to connect to the machine for troubleshooting and advanced service assistance.
• Permanent wireless software updates — Helps keep machine software and available operating features current without manual update procedures.
• Data management and reporting — Logs completed services and refrigerant usage to support maintenance reminders, warranty reporting, operational analysis, and inventory control.
• Network printing capability — Retains customer service records and supports printing through a connected network.
• Optional onboard thermal printer — Can be equipped with an optional integrated printer for producing service reports directly at the machine.
• Vehicle database included — Provides convenient access to vehicle-specific refrigerant service information.
• EcoLOCK® R134a couplers — Includes MAHLE EcoLOCK quick couplers designed to support professional refrigerant handling and reduce unnecessary refrigerant loss during disconnection.
• Professional industry certifications — Meets SAE J2788, SAE J2099, and UL 1963 requirements for R134a refrigerant recovery and recycling equipment.
• 30-pound DOT charging cylinder — Equipped with an internal 30 lb. / 13.6 kg refrigerant cylinder for commercial shop use.
• 3/8 HP compressor — Uses a 3/8 HP / 0.279 kW compressor for dependable refrigerant recovery and recycling performance.
• Dual-stage vacuum pump — Includes a 1.8 CFM dual-stage vacuum pump for system evacuation and moisture removal.
• High-capacity filter drier — Features a spin-on filter drier rated for approximately 200 lb. / 91 kg of refrigerant processing.
• Nine-foot service hoses — Includes 9 ft. / 2.75 m hoses for convenient access to vehicle high- and low-side service ports.
• Multilingual interface — Supports English, French, and Spanish for broader technician accessibility.
• Easy-access service design — An ergonomic hinged service door simplifies routine maintenance and improves access to internal components.
• Owner-serviceable construction — Designed for easier owner maintenance and supported by MAHLE service centers and lifetime phone support.
• Standard shop power — Operates on 120 VAC, 60 Hz, 12 amps.
• Wide operating range — Designed for shop environments between approximately 50°F and 122°F / 10°C and 50°C.
• Machine dimensions and weight — Measures approximately 47 inches high × 29 inches wide × 29 inches deep and weighs about 215 lbs. / 98 kg.
• Manufacturer warranty — Listed with a one-year labor and two-year parts warranty.
• Best applications — Automotive repair shops, dealership service departments, fleet maintenance facilities, collision centers, tire and service shops, commercial garages, and high-volume R134a A/C service operations.
