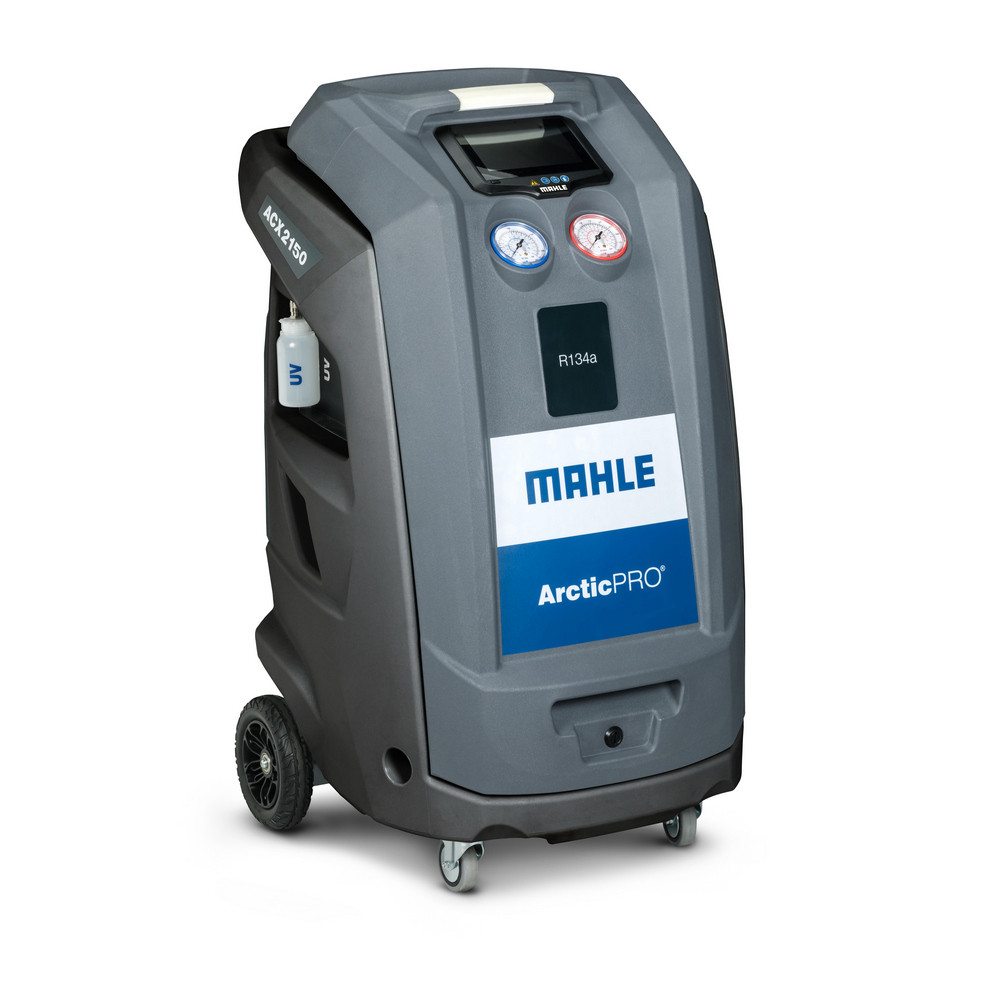

Mahle ACX2150: Mid-Range R134a ACS System

Product Description

Mahle ACX2150: Mid-Range R134a ACS System

SKU: 460 80445 00

Key Product Features:

• Genuine MAHLE ArcticPRO equipment — Model ACX2150, part number 460 80445 00, for professional R134a refrigerant handling and automotive A/C service.
• Dedicated R134a operation — Designed specifically for vehicle A/C systems using R134a refrigerant and should not be used with other refrigerant types.
• Fully automatic service cycle — Performs professional refrigerant recovery, recycling, system evacuation, and precise recharging with minimal technician supervision.
• Mid-range professional performance — Provides advanced automated capabilities for shops that need dependable R134a service without moving to a larger premium platform.
• 7-inch capacitive touchscreen — Features an intuitive color interface that simplifies machine setup, service selection, and technician navigation.
• Visible LED workflow indicator — A bright status light allows technicians to monitor service progress from across the workshop.
• Accurate refrigerant charging — Manufacturer specifications list charging accuracy of approximately ±0.5 oz. at 70°F to 75°F, or ±15 g at 21°C to 24°C.
• Meets professional industry standards — Distributor specifications identify compliance with SAE J2788, SAE J2099, and UL 1963 requirements for R134a service equipment.
• Automatic recovered-oil weighing — Measures the oil removed during refrigerant recovery to support accurate system servicing.
• Onboard oil injection — Allows technicians to accurately replace the amount of compressor oil removed during the service process.
• Integrated UV dye injection — Supports professional A/C leak-detection procedures by adding UV dye during service.
• Wireless software updates — Automatic and permanent wireless updates help keep the machine current with available features and system improvements.
• WiFi-enabled remote technical support — Allows MAHLE support personnel to connect remotely for troubleshooting and advanced service assistance.
• Data management and reporting — Logs and monitors completed services to support refrigerant-use analysis, proactive maintenance reminders, and warranty documentation.
• Network printing capability — Retains service information and supports network printing of customer service records.
• Optional onboard thermal printer — An optional printer can produce service reports directly at the machine.
• Optional mobile app functionality — Compatible with an optional iOS and Android application for remote session mirroring and advanced operating functions.
• Three-transducer design — Distributor details identify three transducers that help reduce process time compared with dual-sensor systems.
• 1.8 CFM dual-stage vacuum pump — Supports efficient evacuation and moisture removal from compatible automotive A/C systems.
• Long service hoses — Distributor specifications list service hoses measuring approximately 9 ft. / 2.75 m for convenient access to vehicle service ports.
• Multilingual operation — Supports English, French, and Spanish for greater technician accessibility.
• Standard North American power — Operates on approximately 120 VAC, 60 Hz, 12 amps.
• Wide operating temperature range — Designed for use between approximately 50°F and 122°F / 10°C and 50°C.
• Easy-access hinged service door — Ergonomic cabinet design provides improved access to internal components for routine servicing and maintenance.
• Owner-serviceable design — Built to simplify repairs and routine maintenance, supported by MAHLE service centers and lifetime phone assistance.
• Best applications — Automotive repair shops, dealerships, fleet maintenance departments, collision centers, tire and service facilities, commercial garages, and professional R134a climate-control service operations.
