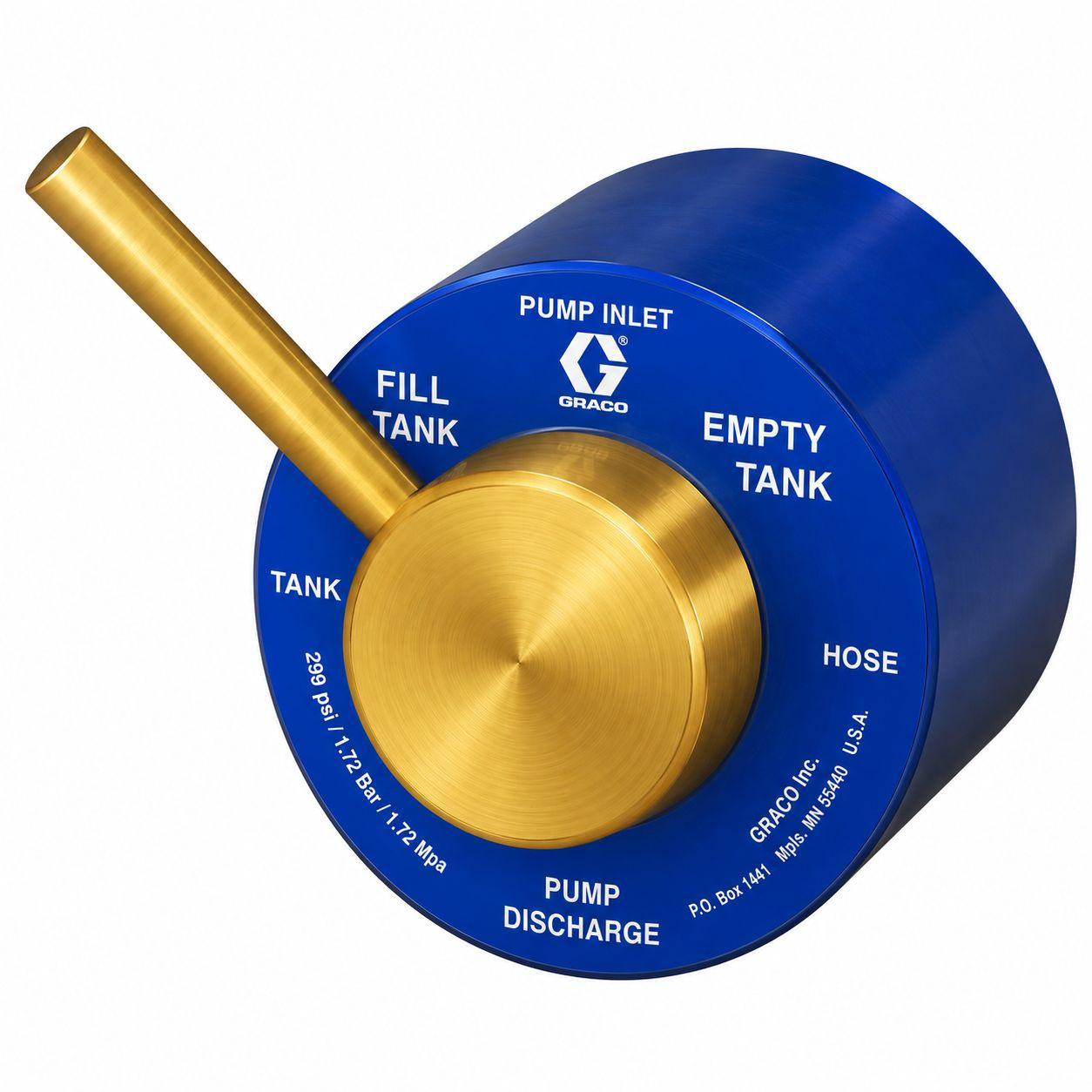

The 4-way evacuation valve is a directional control valve used to simplify the filling and emptying of tanks. Typical applications include filling and emptying waste containers on lube trucks and transferring fluids from bulk supply tanks to operational day tanks. Typical fluids handled include petroleum and synthetic-based oils, fuels, anti-freeze and windshield wash fluid.
| Thread Size (in) | 1 |
|---|---|
| Overall Width (mm) | 120.65 |
| Overall Width (in) | 4.75 |
| Overall Width (cm) | 12.065 |
| Overall Height (mm) | 120.65 |
| Overall Height (in) | 4.75 |
| Maximum Working Pressure (bar) | 14 |
| Maximum Working Pressure (kPa) | 1400 |
| Maximum Working Pressure (MPa) | 1.4 |
| Maximum Working Pressure (psi) | 200 |
| Overall Height (cm) | 12.065 |
