Fluidall DEFPRO500 : 500 Gal. Northern Pro DEF Package

Product Description

Key Product Features:

• 500-gallon bulk DEF capacity: Provides a practical centralized supply for operations that consume more DEF than individual jugs or drums can efficiently support.
• Engineered for northern climates: The heated and insulated design helps protect Diesel Exhaust Fluid against freezing and supports dependable dispensing in harsh winter environments.
• Complete all-in-one package: Combines the DEF tank, heating equipment, pump, meter, hose, nozzle, level control and protective cabinet into one integrated storage and dispensing system.
• Fully assembled configuration: Arrives as an out-of-the-box mini-bulk system, helping reduce component selection, field assembly and installation complexity.
• Insulated polyethylene tank: Approximately 2 inches of insulation help reduce heat loss and maintain a more stable fluid temperature during cold-weather storage.
• Protective exterior covering: The insulated tank is wrapped with a durable reinforced polyester encasement for added environmental and physical protection.
• UV-inhibitor protective coating: Helps protect the tank system against sunlight and outdoor exposure during long-term installation.
• Commercial heating system: Provides active temperature protection to help keep stored DEF in a liquid, dispensable condition when outdoor temperatures fall below its freezing point.
• Protected dispensing equipment: The heated system helps safeguard the pump, meter, hoses and related components against cold-weather operating problems.

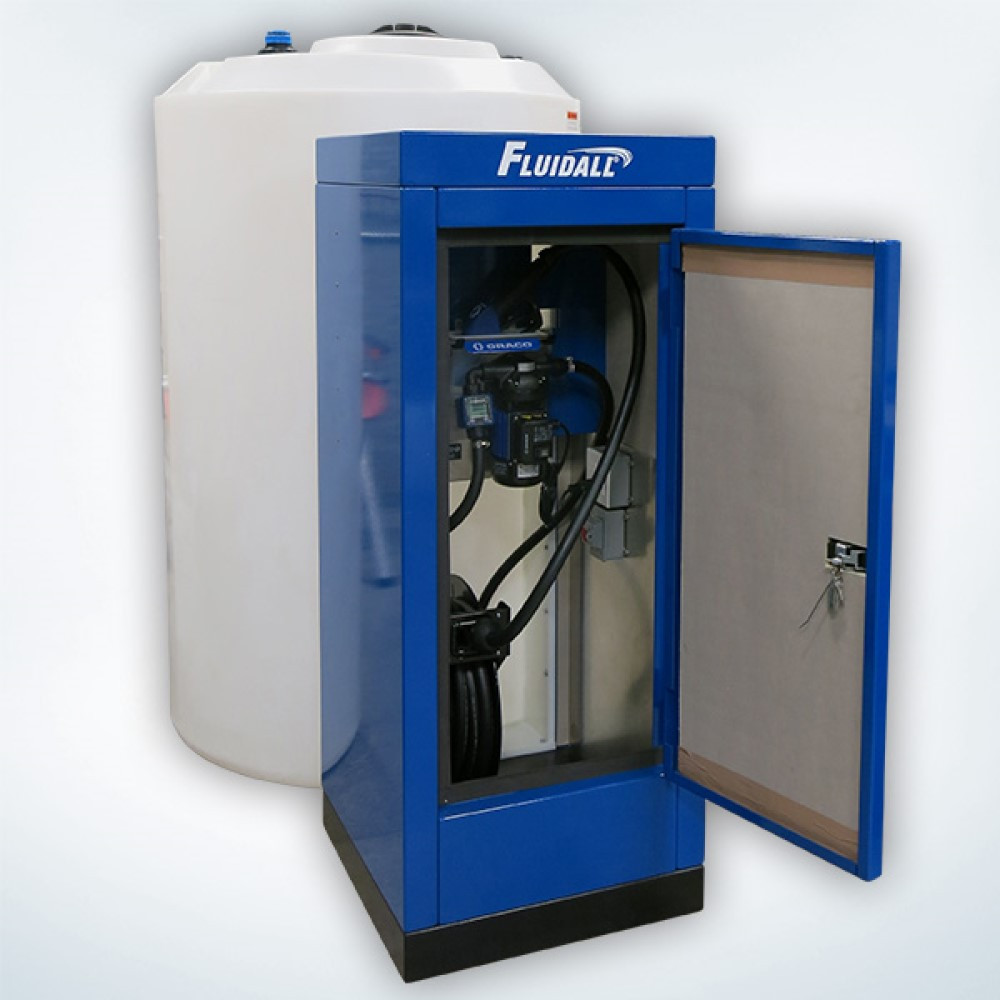

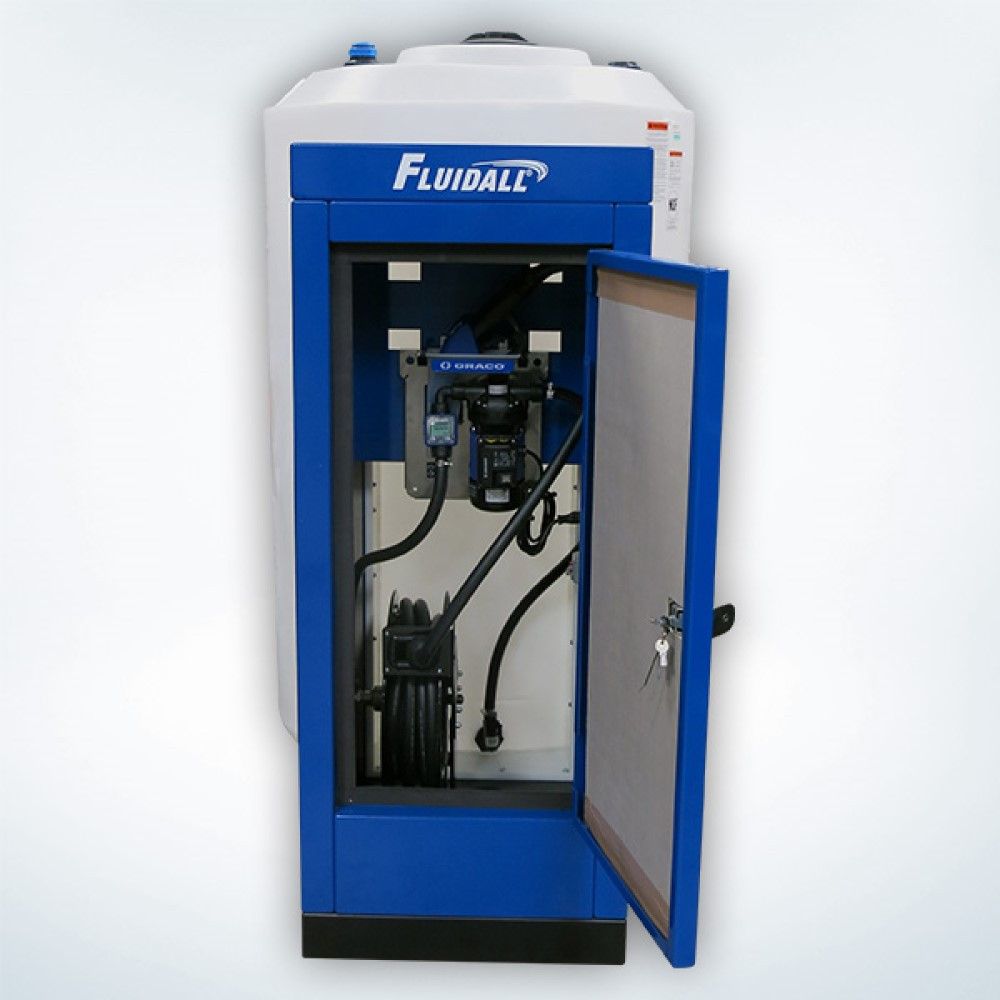

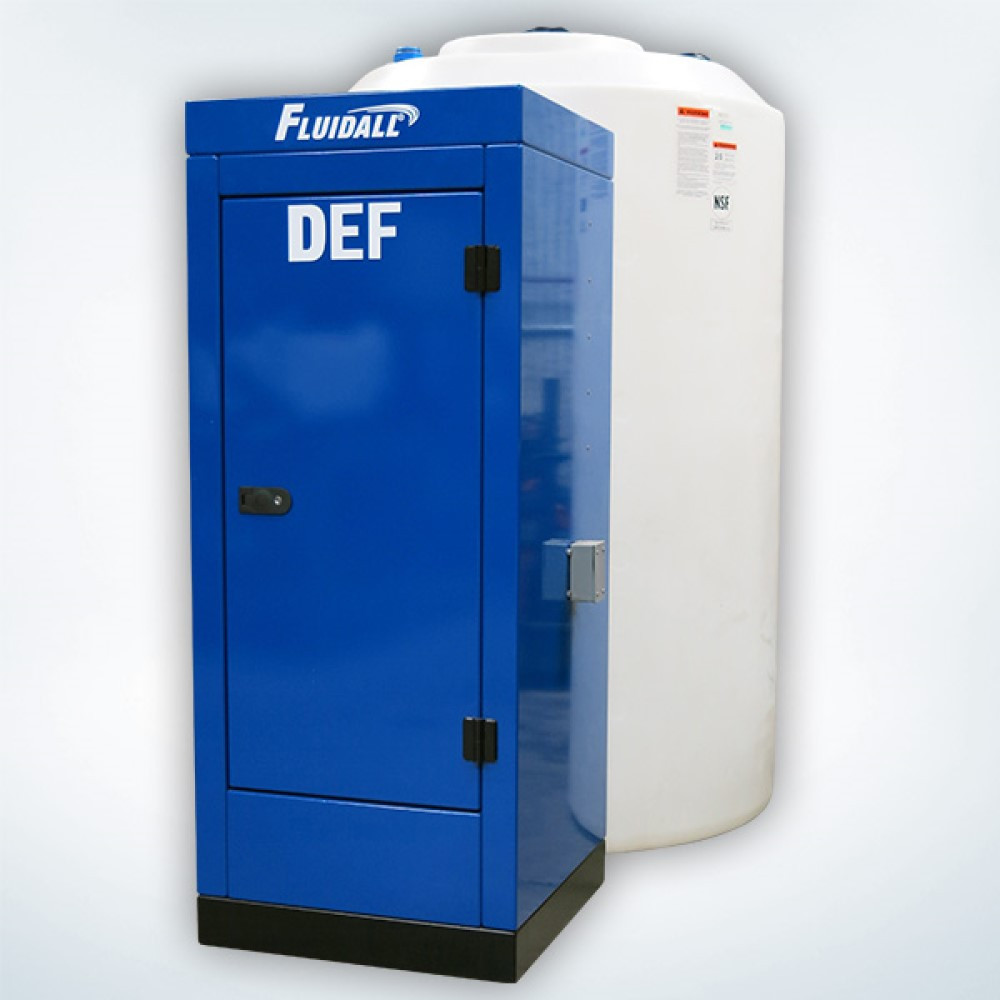

• Heavy-duty aluminum cabinet: A weather-resistant cabinet houses the primary dispensing equipment and helps protect it against impact, precipitation and environmental exposure.
• Lockable equipment enclosure: Restricts unauthorized access to the pump and dispensing controls while helping protect valuable components against tampering.
• Hornet W85 hybrid DEF pump: Uses a self-priming hybrid pump designed for efficient commercial DEF transfer. Competitor documentation identifies it as providing a higher flow rate than conventional comparable DEF pumps.
• Convenient on/off control: Allows operators to activate or stop the pump directly from the protected dispensing cabinet.
• Integrated flow meter: Measures the volume of DEF transferred, helping fleet managers monitor usage, maintain inventory records and improve fluid accountability.
• Automatic shut-off nozzle: Stops DEF delivery when the receiving reservoir reaches the appropriate level, helping reduce overfilling, spills and wasted fluid.
• 15-foot delivery hose: Provides useful reach between the stationary storage system and nearby trucks, buses or equipment during routine dispensing.
• Suction hose included: Connects the storage tank to the dispensing pump and forms part of the complete DEF-compatible transfer system.
• Fluid-level LCD control: Provides a convenient visual indication of DEF inventory, allowing operators to plan bulk deliveries and avoid unexpected shortages.
• Bulk filling connections: The Northern tank includes a 2-inch bulkhead and two quick-disconnect valves to support bulk DEF delivery and system plumbing.
• DEF-compatible fluid path: The tank, pump, hose, meter and nozzle are configured for Diesel Exhaust Fluid service, helping maintain fluid purity and protect vehicle Selective Catalytic Reduction systems.
• Centralized fleet refilling: Creates a dedicated on-site DEF dispensing point where drivers and technicians can replenish vehicles during routine fueling or maintenance.
• Reduces packaged-fluid handling: Bulk storage can decrease reliance on jugs and drums, reducing repetitive lifting, manual pouring, storage clutter and packaging disposal.
• Supports bulk DEF purchasing: Allows qualified facilities to accept larger deliveries, potentially reducing delivery frequency and improving inventory efficiency.
• Space-efficient vertical design: Stores 500 gallons within a relatively compact cylindrical footprint suitable for fleet yards, maintenance facilities and equipment service areas.
• Approximate insulated dimensions: Competitor listings identify the complete 500-gallon Northern Pro tank at approximately 48 inches in diameter by 79 inches high.
• Current tank drawing dimensions: Fluidall’s current technical drawing lists the 500-gallon base tank at approximately 48 inches in diameter by 73 inches high before additional insulation and package components are considered. Final installed dimensions should be confirmed during site planning.
• Commercial cold-weather applications: Ideal for trucking fleets, municipal garages, transit facilities, agricultural operations, construction companies, equipment dealerships, rental businesses and industrial maintenance sites.
• Product specifications:
  • Product type: Heated and insulated bulk DEF storage and dispensing package
  • Fluid compatibility: Diesel Exhaust Fluid
  • Tank capacity: 500 gallons
  • Tank material: Polyethylene
  • Insulation: Approximately 2 inches
  • Heating system: Commercial cold-weather heater
  • Pump: Hornet W85 hybrid DEF pump
  • Meter: Included flow meter
  • Nozzle: Automatic shut-off nozzle
  • Delivery hose: 15 feet
  • Inventory monitoring: Fluid-level LCD control
  • Cabinet: Heavy-duty lockable aluminum enclosure
  • Approximate packaged tank dimensions: 48-inch diameter × 79 inches high
  • Manufacturer model commonly listed: DEFPRO500B1N
  • ProQuip product designation: DEFPRO500
• Installation requirements: Install the package on a stable, level and properly prepared foundation with suitable electrical service, bulk-delivery access and protective barriers where vehicle traffic is present.
• DEF-only operation: This system is intended exclusively for Diesel Exhaust Fluid. Diesel fuel, gasoline, lubricants, coolant, water and other liquids must not be introduced because contamination can damage vehicle emission-control equipment.
