Fluidall DEFPRO1000 : 1000 Gal. Northern Pro DEF Package

Product Description

Key Product Features:

• 1,000-gallon bulk DEF capacity: Provides substantial on-site Diesel Exhaust Fluid storage for commercial fleets and facilities with regular or high-volume DEF requirements.
• Designed for cold climates: The Northern Pro package combines insulation and commercial heating equipment to help protect DEF from freezing during harsh winter conditions.
• Fully assembled all-in-one system: Delivered as an integrated storage and dispensing package, helping reduce equipment selection, field assembly and installation complexity.
• Insulated polyethylene tank: The bulk tank incorporates approximately 2 inches of insulation to reduce heat loss and improve fluid-temperature stability in cold environments.
• UV-inhibitor protective coating: Helps protect the insulated tank exterior from sunlight and weather exposure during outdoor installations.
• Commercial tank heater: Provides active temperature protection to help maintain DEF in a liquid, dispensable condition during freezing weather.
• Heated dispensing equipment protection: The system is designed to protect both the stored DEF and critical dispensing components from cold-weather exposure.

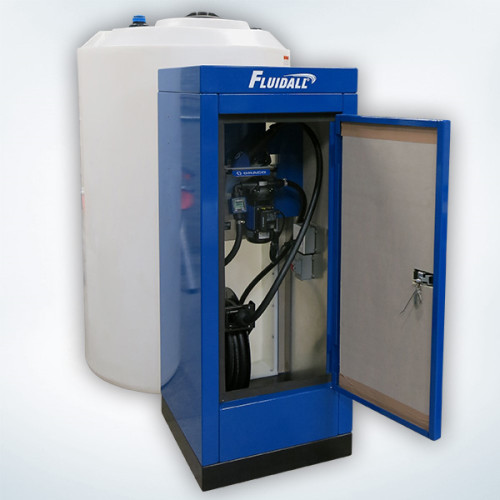

• Heavy-duty lockable aluminum cabinet: Encloses the pump, meter and related dispensing equipment while helping protect components against weather, impact, tampering and unauthorized use.
• Hornet W85 hybrid pump: Delivers efficient DEF transfer from the storage tank to trucks, buses, construction machinery and other diesel-powered equipment.
• Convenient on/off pump control: Allows operators to activate and stop the dispensing system directly from the protected equipment cabinet.
• Integrated flow meter: Measures the amount of DEF dispensed, supporting fluid-usage tracking, inventory control and operational accountability.
• Automatic shut-off nozzle: Stops fluid delivery when the receiving DEF reservoir reaches the appropriate level, helping minimize spills, overfilling and wasted product.
• 15-foot delivery hose: Provides practical reach between the stationary tank and nearby vehicles or equipment during everyday dispensing.
• Fluid-level LCD control: Gives operators a convenient visual indication of the DEF inventory inside the tank, helping improve refill planning and reduce unexpected shortages.
• Bulk delivery connections: The tank includes a 2-inch bulkhead and quick-disconnect valves to support DEF filling, plumbing and system servicing.
• Centralized fleet dispensing: Establishes a dedicated DEF filling point where drivers and technicians can replenish vehicles during routine fueling or scheduled maintenance.
• Reduces packaged DEF handling: Bulk storage decreases reliance on individual jugs and drums, helping reduce repetitive lifting, manual pouring, packaging waste and storage clutter.
• Protects DEF purity: Dedicated DEF-compatible tank and dispensing components help reduce contamination risks that can damage Selective Catalytic Reduction emission systems.
• Weather-resistant outdoor solution: The heated, insulated and enclosed configuration makes the Northern Pro package suitable for outdoor facilities that experience prolonged freezing temperatures.
• Space-efficient vertical tank: Stores 1,000 gallons in a cylindrical vertical configuration that helps conserve facility or fleet-yard floor space.
• Approximate tank dimensions: Fluidall lists the current 1,000-gallon Northern system at approximately 68 inches in diameter by 82 inches high. The lockable dispensing cabinet adds approximately 24 inches wide by 25 inches deep by 48 inches high to the overall installation footprint.
• Dimensional planning consideration: A Fluidall technical drawing for the 1,000-gallon tank shows a nominal uninsulated diameter of approximately 64 inches and tank height of about 80 inches, with additional dimensions added by the insulation. Final system dimensions should be confirmed before site preparation.
• Ideal commercial applications: Suitable for trucking fleets, municipal garages, transit facilities, agricultural operations, equipment dealerships, construction companies, equipment rental businesses and industrial maintenance sites.
• Product specifications:
  • Product type: Heated and insulated bulk DEF storage and dispensing package
  • Fluid compatibility: Diesel Exhaust Fluid
  • Tank capacity: 1,000 gallons
  • Tank construction: Insulated polyethylene
  • Insulation: Approximately 2 inches
  • Heating system: Commercial cold-weather heater
  • Pump: Hornet W85 hybrid DEF pump
  • Meter: Included flow meter
  • Nozzle: Automatic shut-off nozzle
  • Delivery hose: 15 feet
  • Inventory monitoring: Fluid-level LCD control
  • Cabinet: Heavy-duty lockable aluminum enclosure
  • Approximate insulated tank dimensions: 68-inch diameter × 82 inches high
  • Manufacturer product number commonly listed by Fluidall: DEFPRO1000B1N
  • ProQuip product designation: DEFPRO1000
• Installation requirements: The system should be placed on a stable, level and properly prepared foundation with suitable electrical service, bulk-delivery access and protection from vehicle impact.
• DEF-only operation: The package is intended exclusively for Diesel Exhaust Fluid. Diesel fuel, gasoline, lubricants, coolant, water and other fluids must not be introduced because contamination can damage vehicle emissions systems.
