Drive System Type
Electric / Air
Motor
110 or 220 VAC, 50/60 Hz, 1 Ph
Air Requirement
140 - 165 psi (9.6 - 11.4 BAR)
Wheel Clamping Method
4 Clamps - Internal / External Clamping
Table Clamping System
Dual pneumatic cylinders

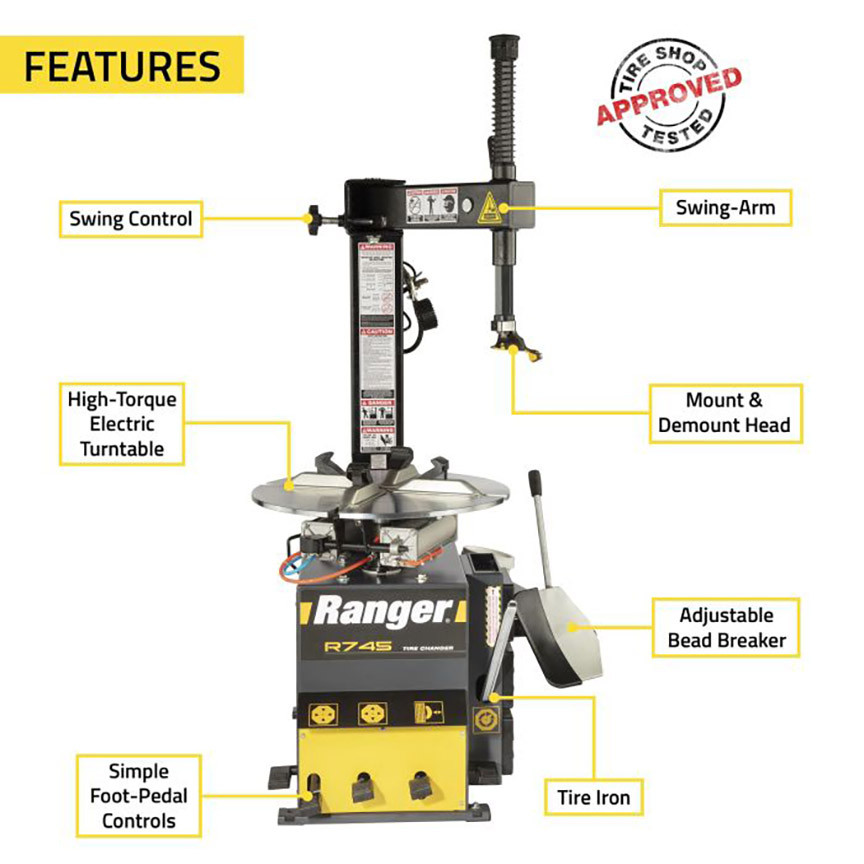

Bead Breaking System
Pneumatic Blade
Tool Holder
Manual Lock
Tower Design
Rigid Fixed / Swing Arm
A - Inside (Wheel) Clamping Range
12" – 20" (304 mm - 508 mm)
B - Outside (Wheel) Clamping Range
10" – 16" (254 mm - 406 mm)
Maximum Rim Width
11" (279 mm)
Maximum Tire Diameter
39" (914 mm)
Shipping Weight
466 lbs. (211 kg)
Shipping Dimensions
40'' x 50'' x 65'' (1,016 mm x 1,270 mm x 1,651 mm)
Recommended Footprint
50" x 50" x 75" (1,270 mm x 1,270 mm x 1,905 mm)
Specifications
Power 110-240V

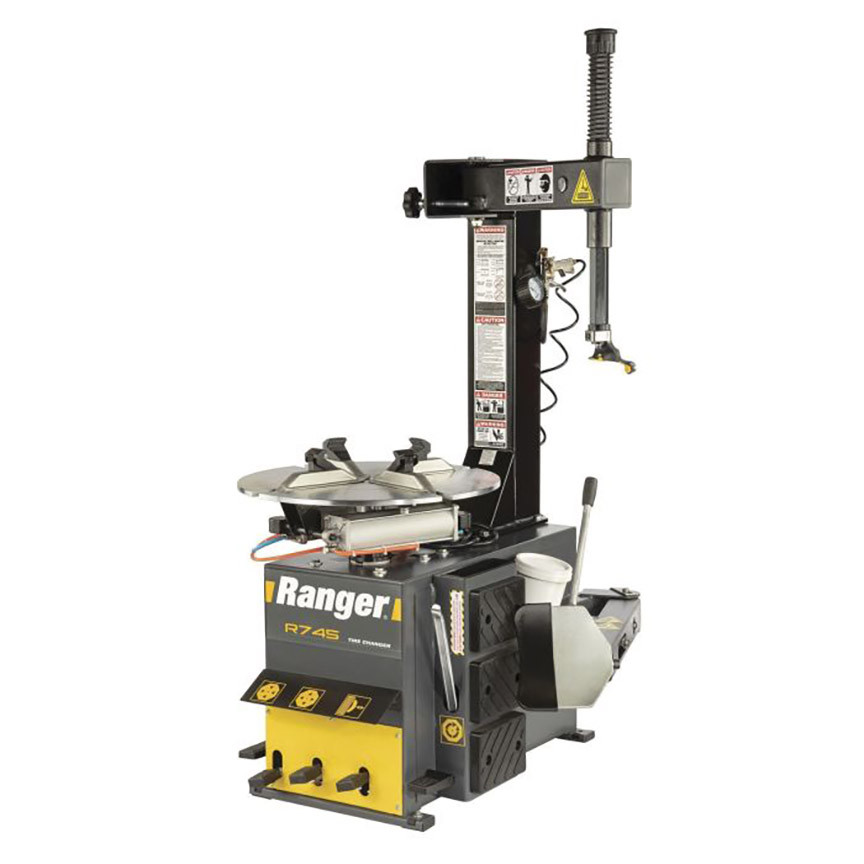

Type Tire Changer
Style Swing Arm
Phase 1-Ph
Frequency 50/60hz
