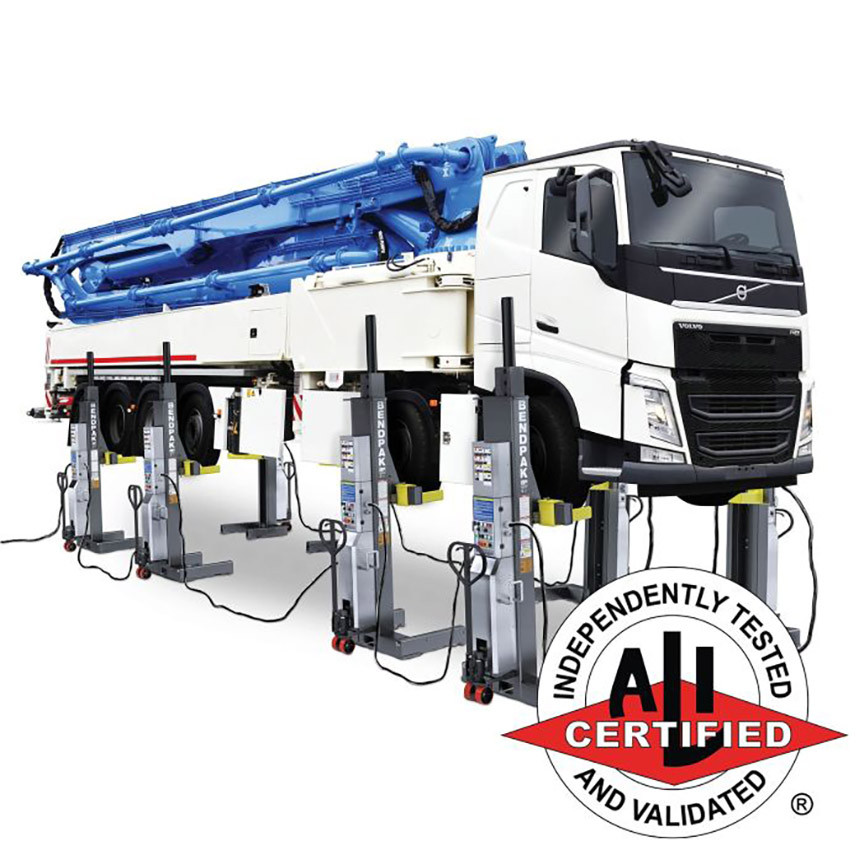

Bendpak PCL-18B-8 : 144,000 Lb. Cap. Mobile Lift System - 460/380V, 50-60HZ, 3-Ph - SET OF 8

Product Description

The BendPak PCL-18B-8 Heavy-Duty Mobile Column Lift System delivers exceptional lifting power, flexibility, and reliability for professional commercial vehicle maintenance. Featuring eight mobile lifting columns with an individual capacity of 18,000 lbs each, this system provides a combined lifting capacity of 144,000 lbs, making it ideal for servicing heavy-duty trucks, buses, commercial vehicles, and fleet equipment.

Designed for four-axle vehicle lifting applications, the PCL-18B-8 features a 460/380V, three-phase electrical system, intelligent electronic synchronization, and advanced safety controls. Its mobile column design allows convenient positioning around vehicle wheels, while the electric/hydraulic power system provides efficient lifting performance for demanding workshop operations.

Built for professional service environments, the PCL-18B-8 combines heavy-duty construction, programmable controls, and automatic safety locks to support reliable lifting operations. Its compact and maneuverable design makes it an excellent solution for commercial truck repair shops, fleet maintenance facilities, and heavy-duty vehicle workshops.

Key Features:

• 144,000 lb Combined Lifting Capacity: Eight columns provide powerful heavy-duty lifting performance.
• 18,000 lb Individual Column Capacity: Each column supports demanding commercial vehicle applications.
• Eight-Column Configuration: Designed for compatible four-axle trucks and commercial vehicles.
• 460/380V, 3-Phase Power System: Supports industrial lifting applications.
• 50–60 Hz Frequency: Designed for the specified electrical configuration.
• SINGLE, PAIR, and TEAM Operation: Offers flexible lifting control.
• Intelligent Electronic Synchronization: Helps maintain coordinated, level lifting across connected columns.
• Programmable Controls: Allow convenient lift operation from any column.
• Automatic Safety Locks: Independent mechanical locks spaced every four inches provide secure support.
• 24V Safety Circuitry: Supports dependable electronic control operation.
• Self-Diagnostic and Self-Calibration Functions: Help maintain accurate system performance.
• Variable Height Limit Settings: Allow programmable lifting heights for different workshop requirements.
• Two-Speed Lowering: Provides controlled lowering with selectable speed settings.
• Emergency Shut-Off Switches: Located on each column for immediate system shutdown.
• Audible and Visual Warning Systems: Alert operators to critical operating conditions.
• Hydraulic Safety Valves: Help prevent uncontrolled lowering during hydraulic pressure loss.
• Adjustable Wheel Forks: Accommodate compatible wide tires and deep wheel configurations.
• Heavy-Duty Mobile Wheels: Provide convenient movement and positioning throughout the workshop.
• Forklift Pockets: Support transportation of columns between facilities.
• Durable Powder Coat Finish: Helps protect against wear and corrosion.

Technical Highlights:

• Model: BendPak PCL-18B-8
• Lift Type: Heavy-Duty Mobile Column Lift System
• Included Columns: 8
• Capacity Per Column: 18,000 lbs
• Combined Lifting Capacity: 144,000 lbs
• Power Supply: 460/380V, 3-Phase
• Frequency: 50–60 Hz
• Operating Modes: SINGLE, PAIR, TEAM
• Primary Application: Four-Axle Commercial Vehicles

The BendPak PCL-18B-8 Mobile Column Lift System combines 144,000 lb lifting capacity, advanced safety features, and convenient workshop mobility, making it a dependable solution for commercial truck servicing, fleet maintenance, and professional heavy-duty vehicle repair operations.
