Capacity
Lifting Capacity*
9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle
4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)
Rise
A - Min. Runway Height:
7" (178 mm)
B - Max. Rise:
82" (2,083 mm)
C - Max. Lifting Height:
89" (2,261 mm)
Time to Full Rise:
65 seconds
Outside Dimensions
D - Overall Width:
202" (5,131 mm)
E - Outside Length:
198" (5,029 mm)
F - Overall Length:
242.5" (6,159 mm)
G - Height of Columns:
102" (2,591 mm)
Inside Dimensions
H - Width Between Columns:
192" (4,877 mm)
I - Drive-Thru Clearance:
178" (4,521 mm)
Runways
J - Runway Width:
19" (483 mm)
K - Length of Runways:
188" (4,775 mm)
L - Width Between Runways:
34.25" (870 mm) or 41" (1,041 mm)
M - Runway Centerline:
56.25" (1,429 mm) or 62.75" (1,594 mm)
N - Outside Edge of Runways:
75.25" (1,911 mm) or 81.75" (2,076 mm)
Minimum Wheelbase
Rated Capacity:
135" (3,429 mm)
75% Capacity:
115" (2,921 mm)
50% Capacity:
95" (2,413 mm)
25% Capacity:
80" (2,032 mm)
Locking
Locking Positions:
17
Lock Spacing:
Every 4" (102 mm)
Power Unit
Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB
Shipping
Weight:
3,038 lbs. (1378 kg)
Dimensions:
205'' x 22'' x 51'' (5,207 mm x 558 mm x 1,282 mm)
Specifications
Capacity 9000

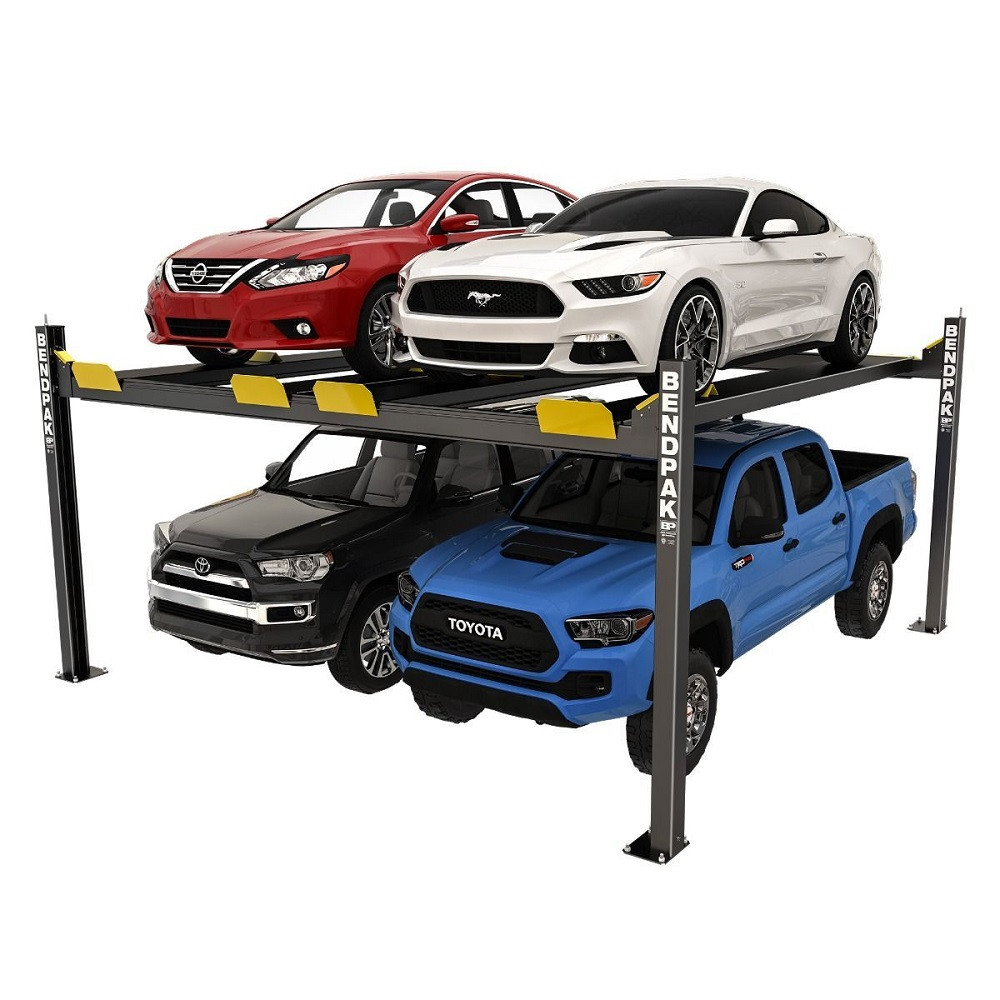

Design Four-Post
Type Parking
