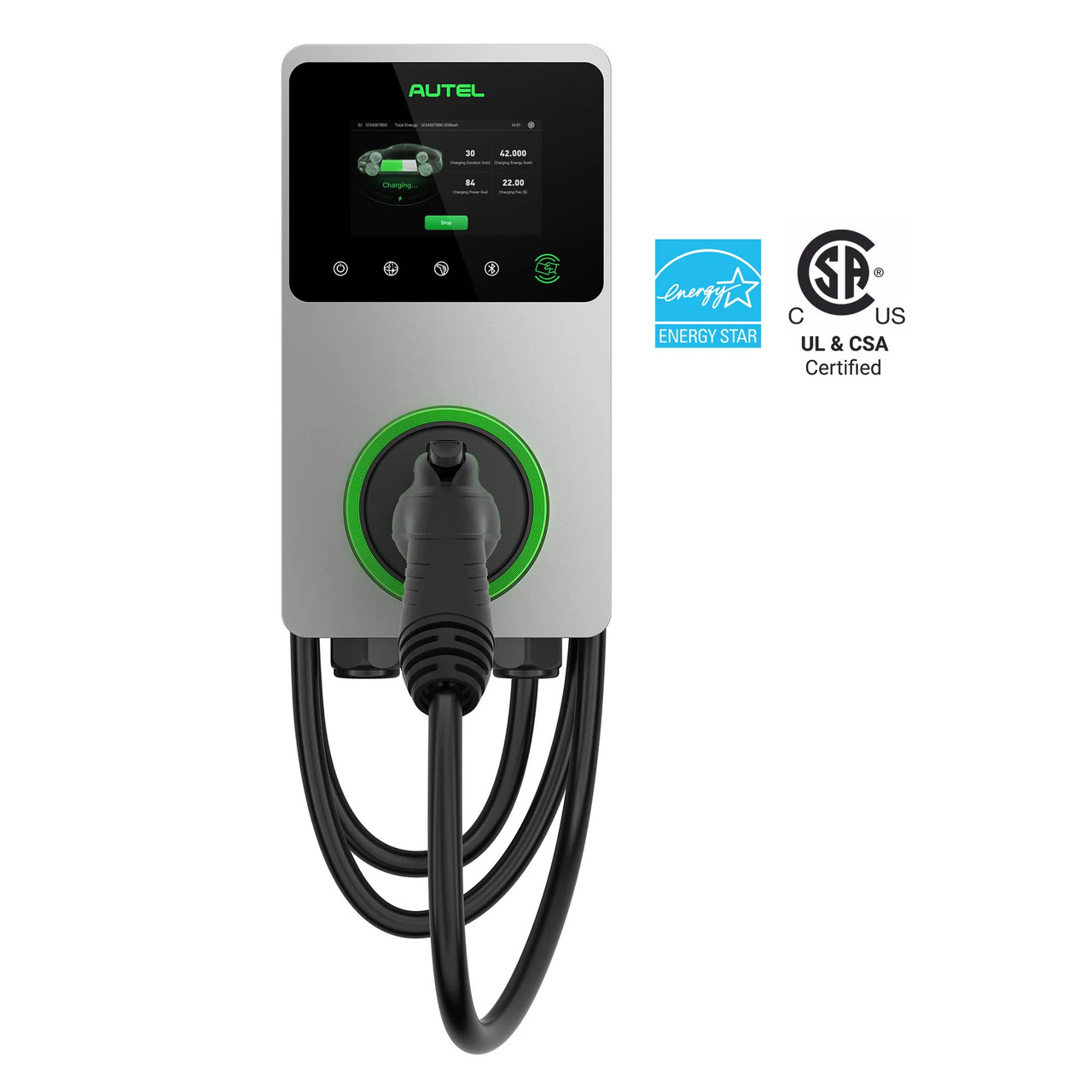

Autel MaxiCharger MCC50AHI : AC Elite Business Level 2 Vehicle Charger

Product Description

Key Product Features:

• Manufacturer part number: MCC50AHI.
• Model designation: MAXI US AC W12-L-4G.
• Commercial Level 2 electric vehicle charging station.
• Maximum charging output: 50 amps.
• Maximum charging power: 12kW at 240V.
• Input and output voltage: 208V ±15% or 240V ±15%.
• Operates at 60 Hz.
• Hardwired electrical installation.

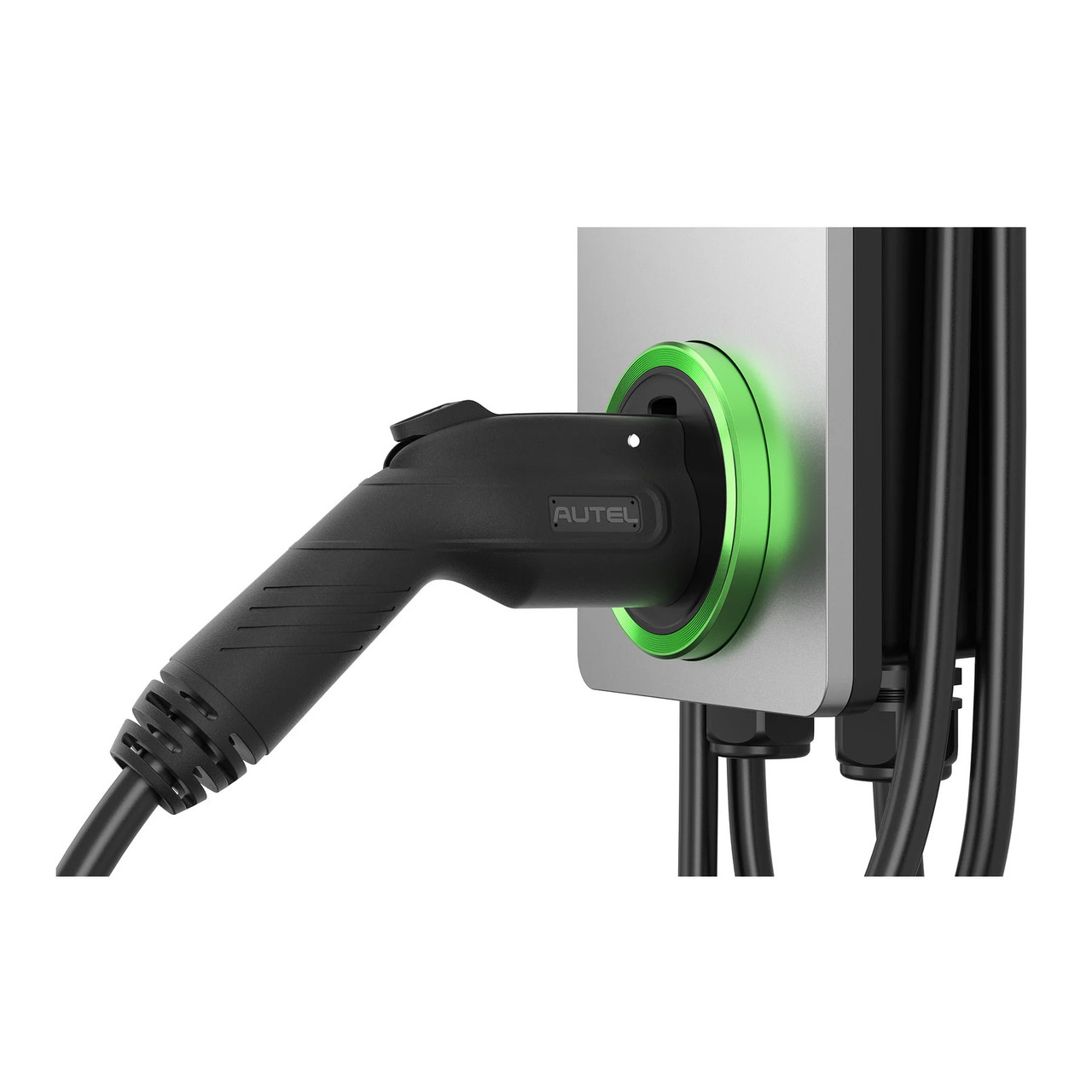

• SAE J1772 charging connector.
• 25-foot charging cable provides flexible vehicle access.
• Compatible with North American standard EVs and plug-in hybrid vehicles using a J1772 inlet.
• Integrated in-body connector holster supports organized cable storage.
• 5-inch LCD touchscreen with 800 × 480 resolution.
• LED, app and touchscreen charging-status indication.
• Autel Charge app and Autel Charge Cloud support.
• Bluetooth connectivity.
• Wi-Fi connectivity.
• Ethernet connectivity.
• Integrated 4G capability.
• CAN and RS485 communications.
• Supports OCPP 1.6J.
• Designed for future upgrade compatibility with OCPP 2.0.1.
• User authentication through the mobile app or RFID card.
• RFID reader supports ISO 15693, ISO 14443 and NFC.
• Over-the-air software and firmware updates.

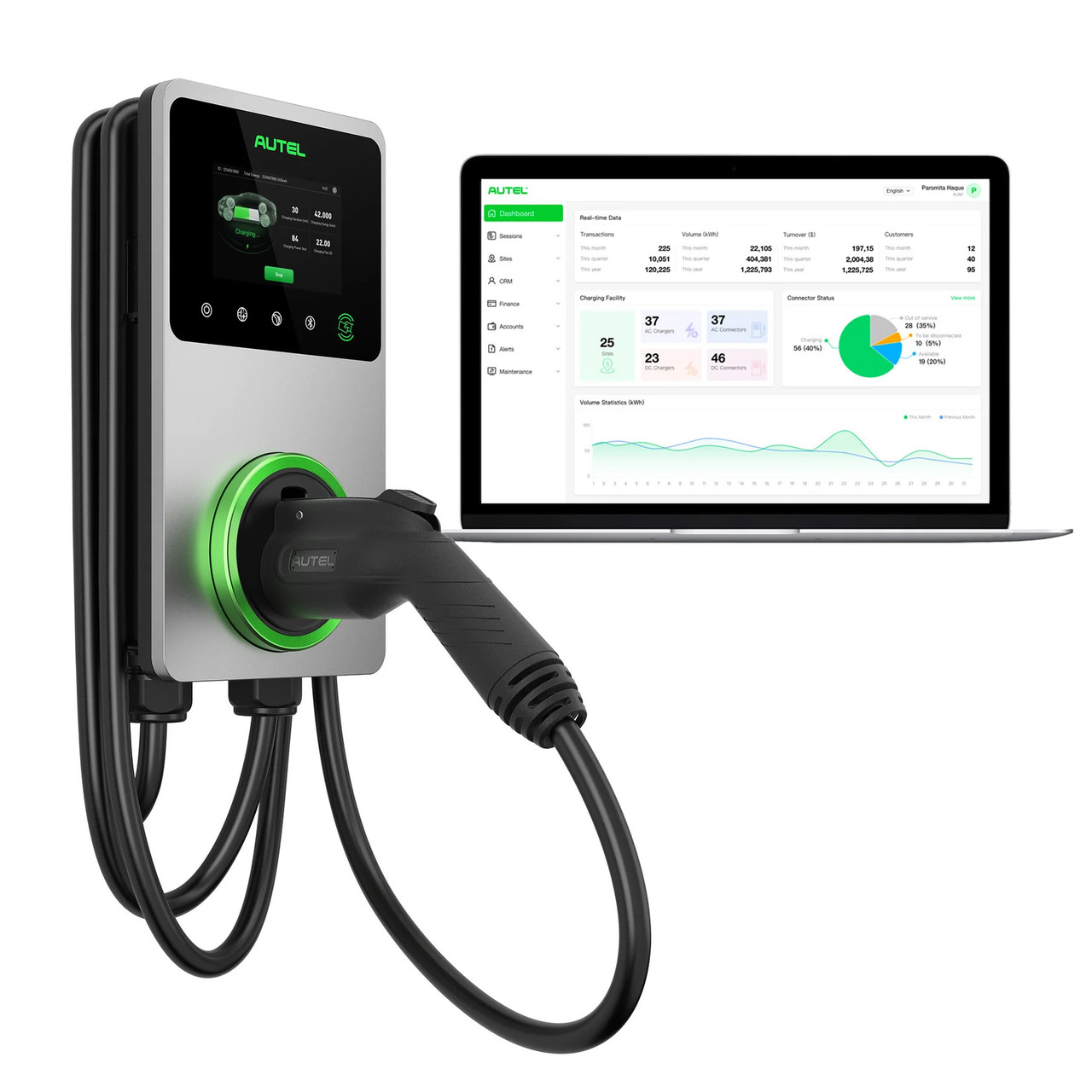

• Cloud-based monitoring helps operators manage charger status and charging activity.
• Supports remote charger control and real-time charging information.
• Connectivity options support power sharing and multi-charger installations.
• 20mA CCID ground-fault detection.
• Integrated overcurrent protection.
• Overvoltage and undervoltage protection.
• Integrated surge protection.
• NEMA 4 enclosure for indoor or outdoor installation.
• Manufacturer’s current AC Elite product information also describes the platform as capable of operating from -40°F to 131°F.
• Storage temperature range: -40°F to 185°F.
• Can be mounted directly to a wall.
• Can be floor-mounted using a compatible pedestal.
• Dimensions: approximately 13.23"H × 7.36"W × 3.35"D.
• Suitable for workplaces, vehicle dealerships, commercial parking areas, fleets, hotels and multifamily properties.
• UL 2231-1 and UL 2231-2 safety compliance.
• UL 2594 compliant.
• Meets NEC Article 625 requirements.
• CSA C22.2 compliant.
• FCC Part 15 Class B electromagnetic compatibility.
• ENERGY STAR certified.
• OpenADR 2.0b certified.
• Three-year manufacturer warranty with extension options available.
• Professional electrical installation is required.

The power, electrical, connector, protection, interface, connectivity and certification details are based on Autel’s official commercial Level 2 charger specification sheet.
