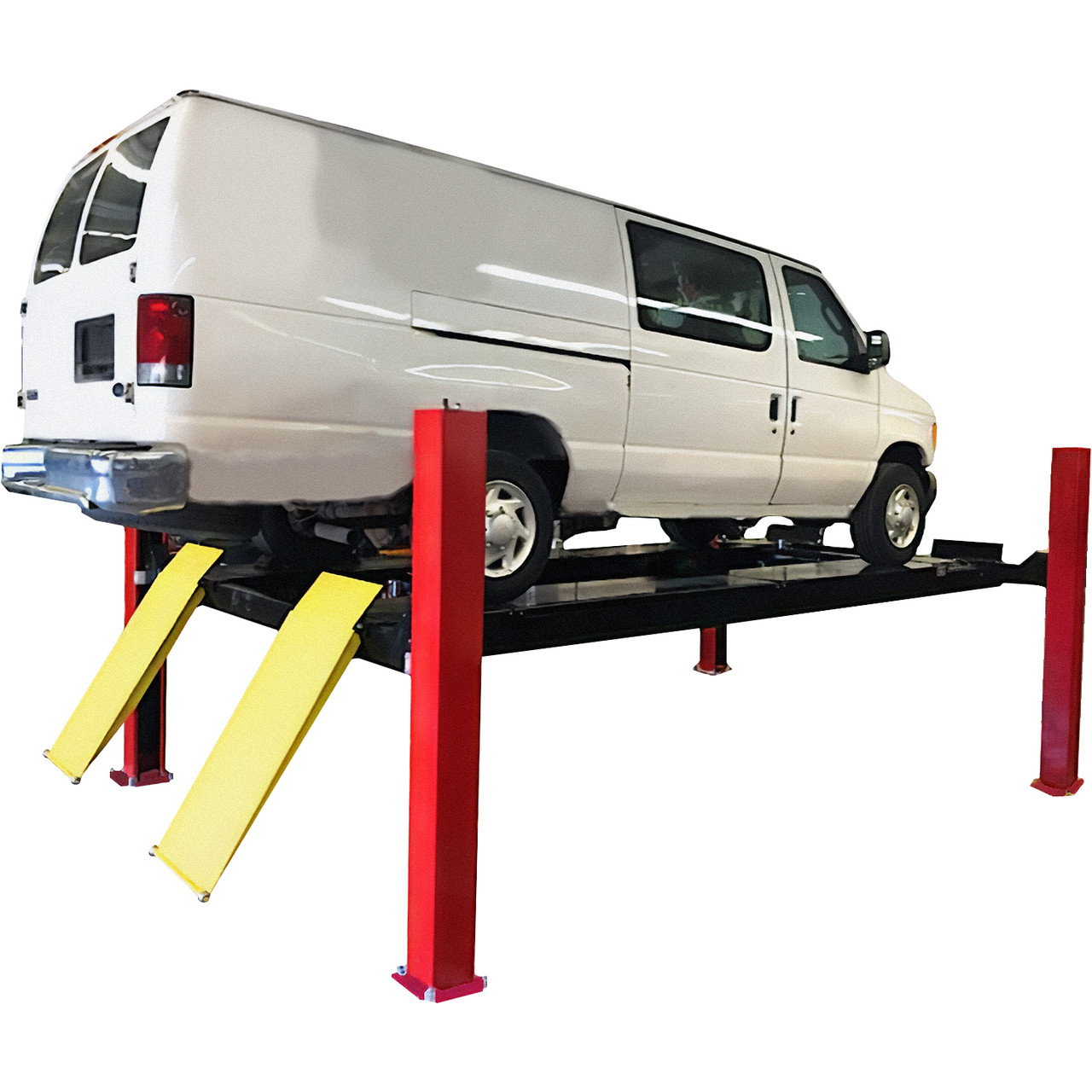

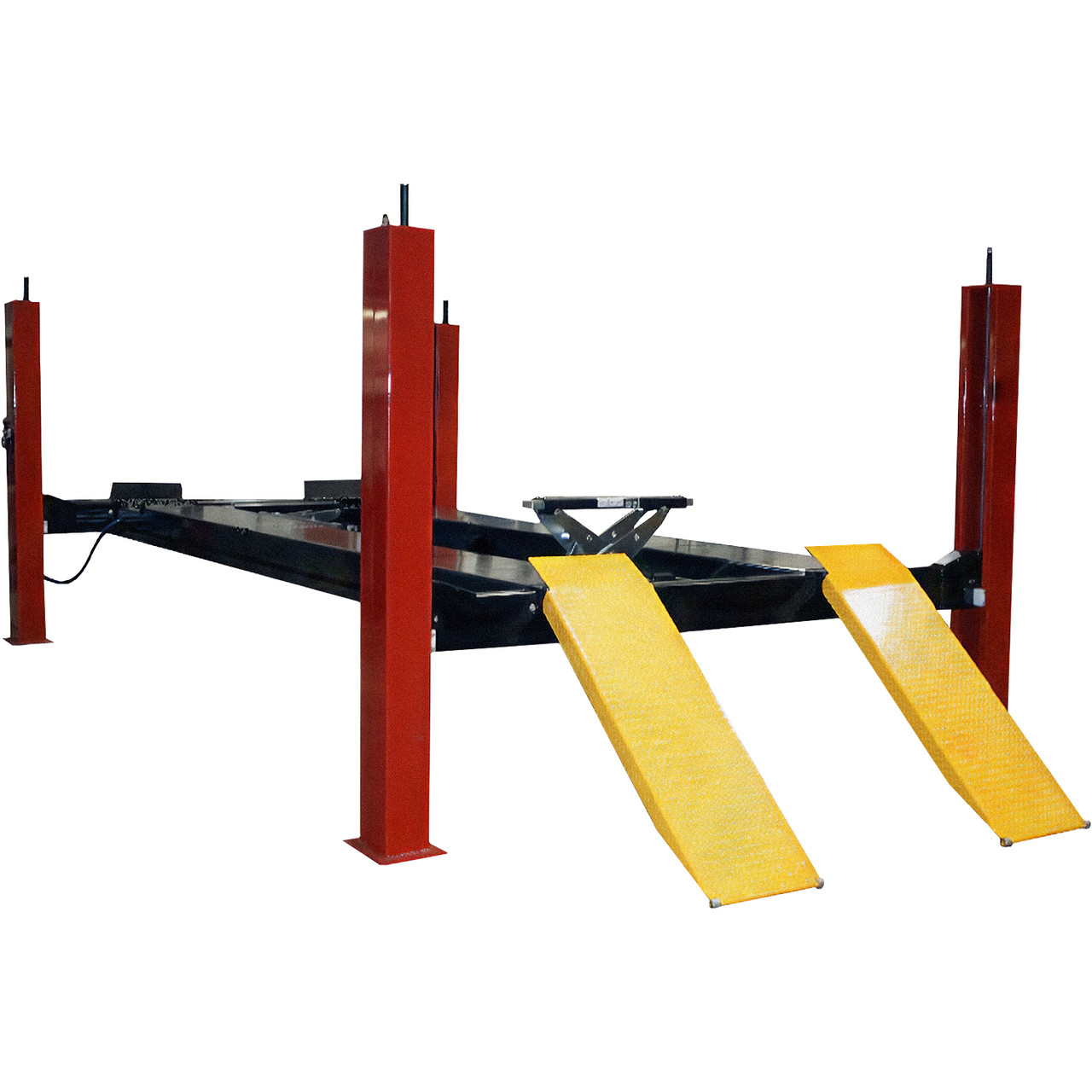

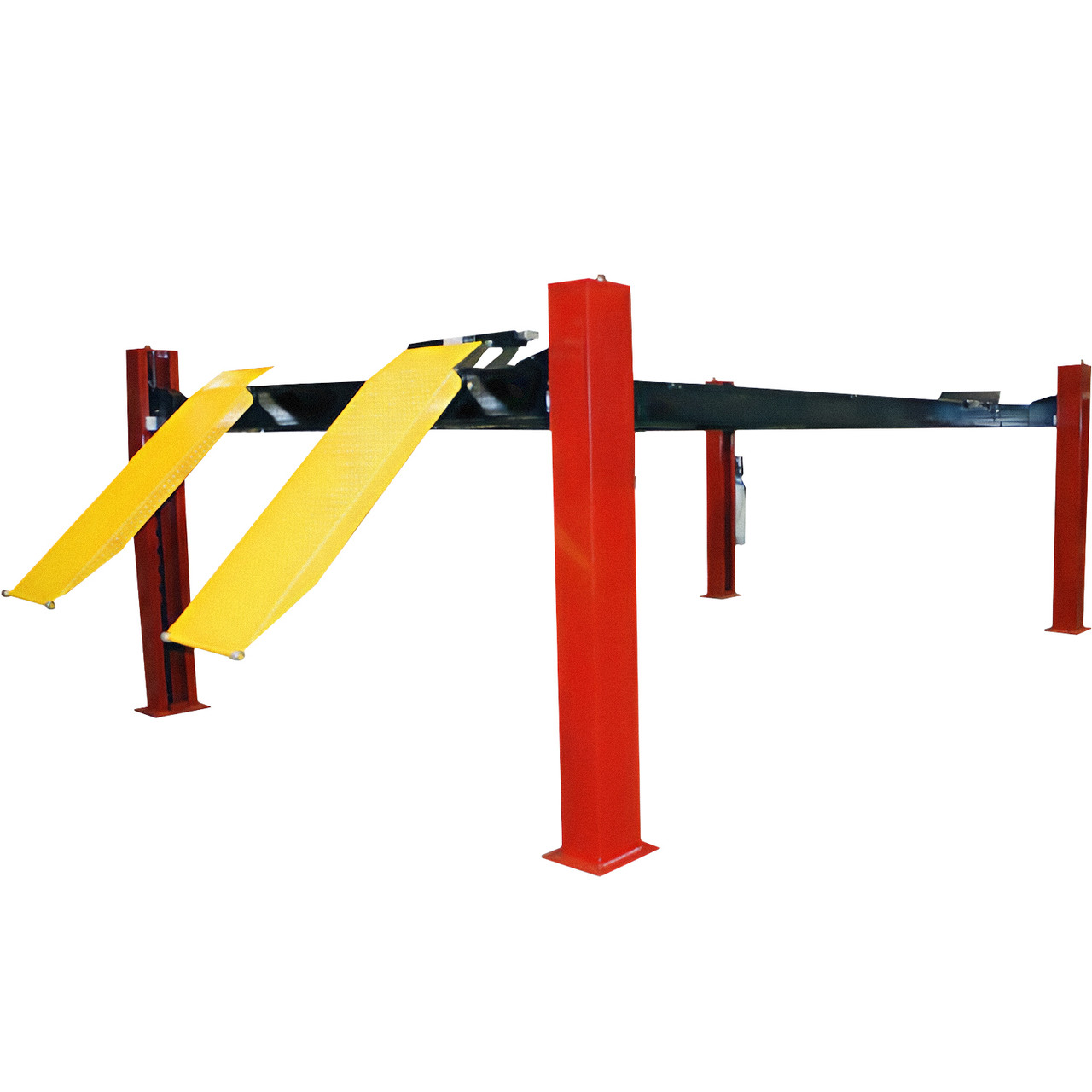

| 4-POST 19K CAPACITY | |
| CAPACITY | 19,000 lbs / 8.6 T |
|
ALI CERTIFICATION |
Yes |
| STYLE | Closed Front |
| A RAISED HEIGHT |
74" (1,880mm) |
| B LOWERED HEIGHT |
8 7/8" (225mm) |
|
C OVERALL LENGTH STANDARD |
274 3/4" (6,969mm) |
|
OVERALL LENGTH EXTENDED |
301 3/4" (7,655mm) |
|
D DECK LENGTH STANDARD |
211" (5,359mm) |
|
DECK LENGTH EXTENDED |
238" (6,045mm) |
|
E WIDTH BETWEEN RUNWAYS |
41" (1,041mm) |
|
F RUNWAY DECK WIDTH |
26" (660mm) |
|
G OVERALL WIDTH FRONT/REAR |
150" (3,810mm) |
|
H MAX COLUMN HEIGHT |
86" (2,184mm) |
|
MIN. 4 WHEEL ALIGNMENT WB |
84" (2,134mm) |
|
MAX. 4 WHEEL ALIGNMENT WB |
164" (4,165mm) |
|
MIN. 2 WHEEL ALIGNMENT WB STANDARD |
177" (4,495mm) |
|
MAX. 2 WHEEL ALIGNMENT WB EXTENDED |
204" (5,181mm) |
| LIFT TIME | 99 Seconds |
|
POWER REQUIREMENTS |
230V, 60Hz, 1PH, 25AMP |
|
INCLUDED JACKING BEAM |
2 X 9,000 lbs / 4.1 T |
| SHIPPING WEIGHTS |
6,300 (2,857kg) |
Specifications
Capacity 19000
Type Alignment
Design Four-Post
Type Closed Front
