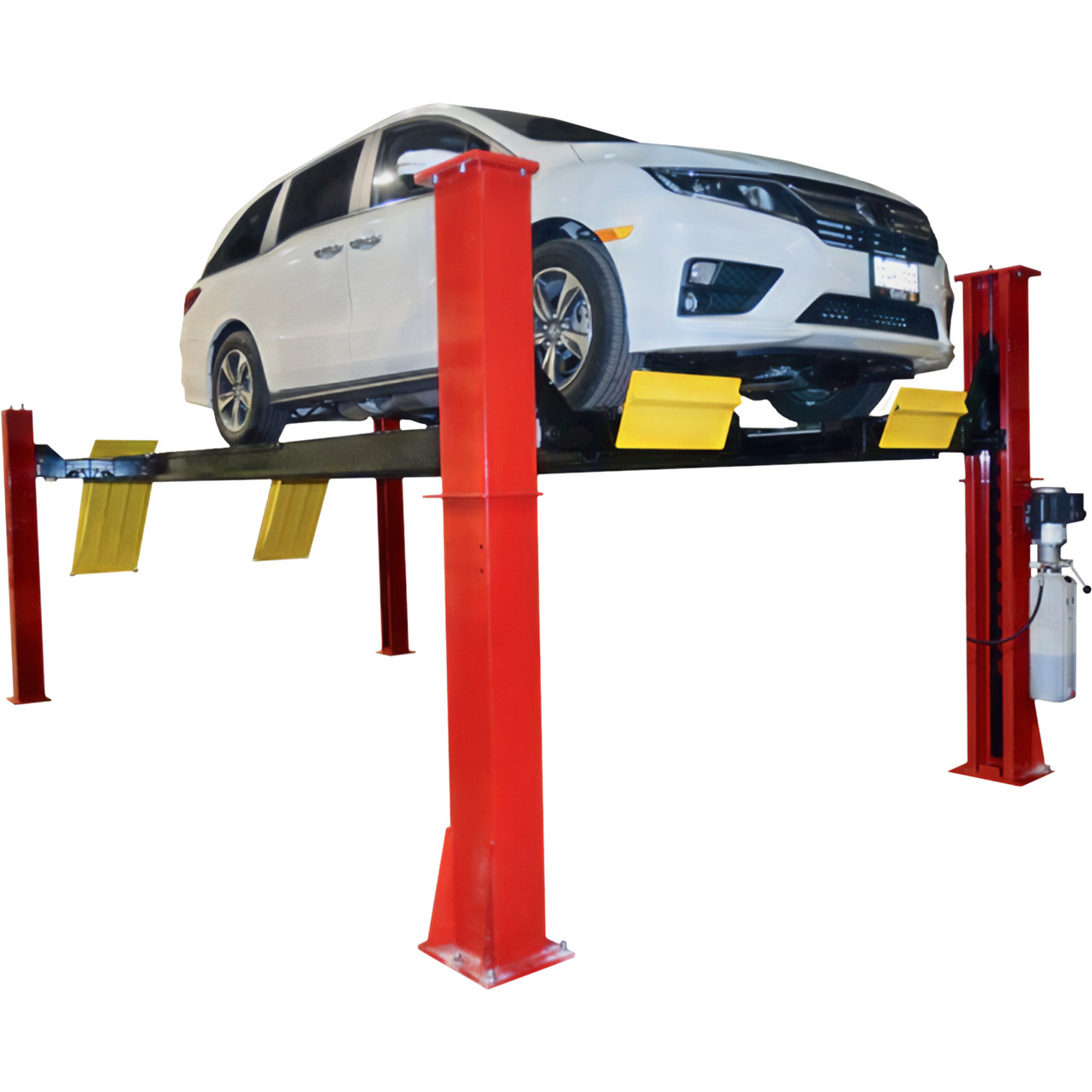

| 4-POST 15K CAPACITY | |
| CAPACITY | 15,000 lbs / 6.8 T |
|
ALI CERTIFICATION |
Yes |
| STYLE | Open Front |
| A RAISED HEIGHT |
75" (1,905mm) |
| B LOWERED HEIGHT |
8 3/8" (213mm) |
|
C OVERALL LENGTH STANDARD |
260 1/2" (6,617mm) |
|
OVERALL LENGTH EXTENDED |
287 1/2" (7,303mm) |
|
D DECK LENGTH STANDARD |
211" (5,359mm) |
|
DECK LENGTH EXTENDED |
238" (6,045mm) |
|
E WIDTH BETWEEN RUNWAYS |
41" (1,041mm) |
|
F RUNWAY DECK WIDTH |
26" (660mm) |
|
G OVERALL WIDTH FRONT/REAR |
143" / 137 1/2" (3,632mm) / (3,493mm) |
|
H MAX COLUMN HEIGHT |
101 1/2" (2,565mm) |
|
MIN. 4 WHEEL ALIGNMENT WB |
84" (2,134mm) |
|
MAX. 4 WHEEL ALIGNMENT WB |
164" (4,165mm) |
|
MIN. 2 WHEEL ALIGNMENT WB STANDARD |
177" (4,495mm) |
|
MAX. 2 WHEEL ALIGNMENT WB EXTENDED |
204" (5,181mm) |
| LIFT TIME | 76 Seconds |
|
POWER REQUIREMENTS |
230V, 60Hz, 1PH, 25AMP |
|
INCLUDED JACKING BEAM |
2 X 7,500 lbs / 3.5 T |
| SHIPPING WEIGHTS |
5,600 (2,540kg) |
Specifications
Capacity 15000
Type Alignment
Design Four-Post
