Lifting Capacity
14,000 lbs (6,350 kg)
A - Overall Width / Front
143.25" (3,638 mm)
A - Overall Width / Rear
130" (3,304 mm)
B - Overall Length
244.5" (6,209 mm)
C - Outside Length
215.5" (5,472 mm)
D - Height of Columns / Front (*)
103.25" (2,623 mm)
D - Height of Columns / Rear(*)
92" (2,338 mm)
E - Min. Runway Height
7.75" (196 mm)
F - Max. Rise
77.5" (1,970 mm)
G - Max Lifting Height
70" (1,778 mm)
H - Width Between Columns / Front
123" (3,124 mm)
H - Width Between Columns / Rear
120" (3,050 mm)
I - Runway Width
20.5" (520 mm)
J - Width Between Runways(**)
42" (1,067 mm)
K - Length of Runways
197.5" (5,017 mm)

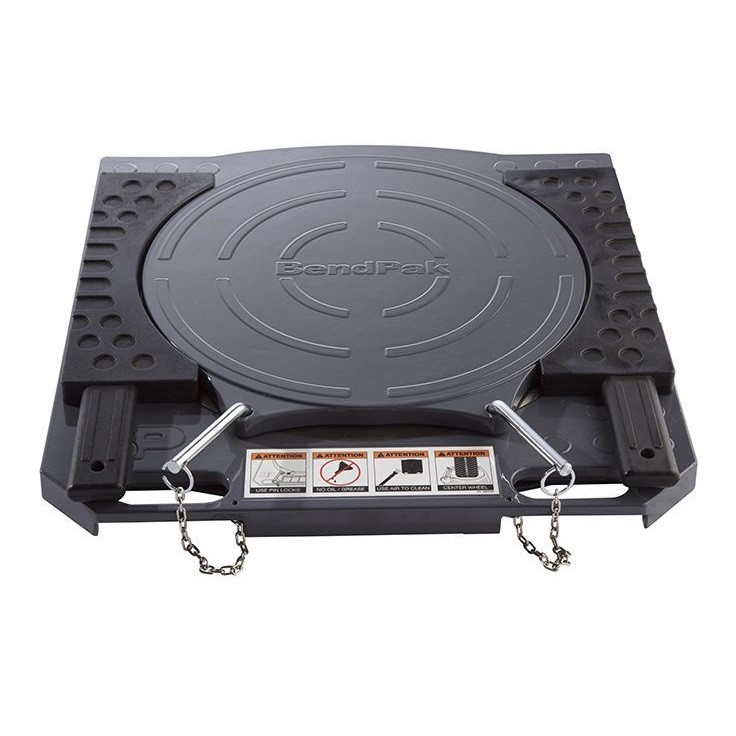

L - Min. 4- Wheel Alignment (***)
89" (2,261 mm
M - Max 4 Wheel Alignment (***)
156" (3,962 mm)
N - Max 2 Wheel Alignment (***)
182" (4,623 mm)
Min. Wheelbase @ Rated Capacity
140" (3,556 mm)
Min. Wheelbase 75% Rated Capacity
120" (3,048 mm)
Min. Wheelbase 50% Rated Capacity
100" (2,540 mm)
Min. Wheelbase 25% Rated Capacity
80" (2,032 mm)
Locking Positions
15
Lock Spacing
Every 4" (102 mm)
Lifting Time
60 Seconds
Standard Motor
220 VAC / 60Hz 1 Ph.
Emission sound pressure at Operator Position < 70 dB(A)
* Safety Ladder Adjustment bolt may add up to 3.75 in. / 95 mm to overall column height.
** This dimension may be limited with the addition of rolling jacks.
*** For CE compliant countries see errata sheet included with control panel.

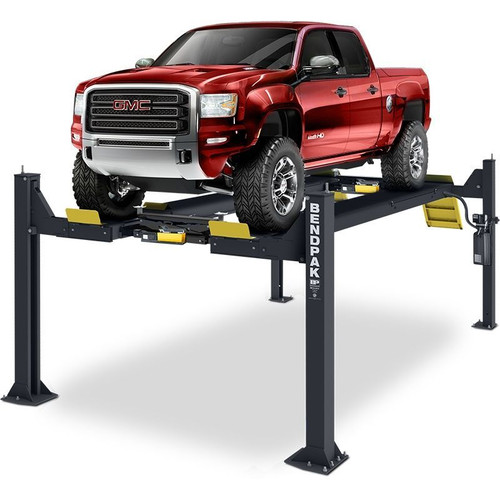

Specifications
Capacity 14000
Design Four-Post
Configuration Open-Front
Type Alignment
