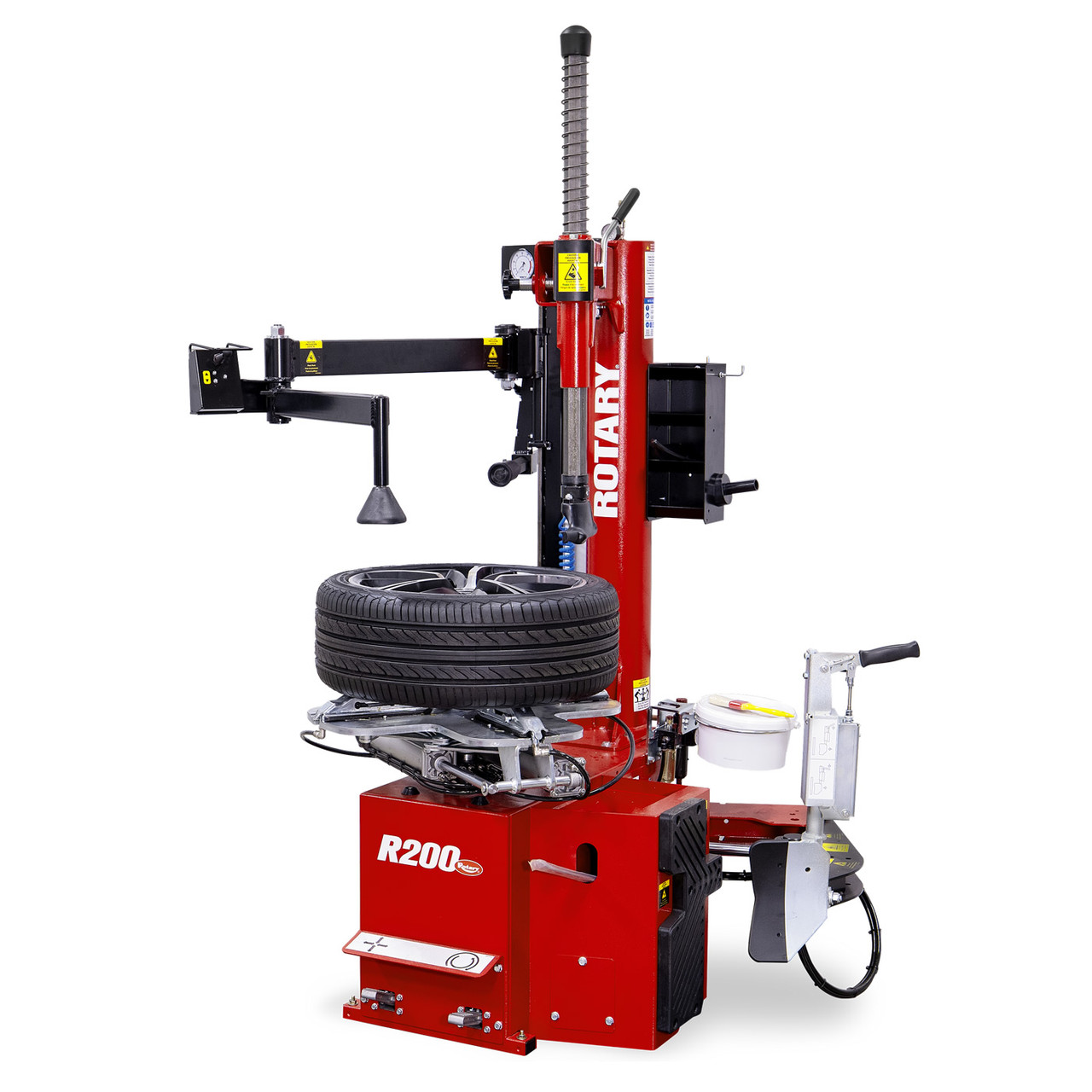

Rotary R200 : Swing Arm Pro - High Volume Tire Changer with Helper Arm (110v)

Rotary Lift - Wheel Service

$8,959.00

Write a Review

SKU:: ROT.CR200R0.202109

Product Description

Swing Arm Pro - High Volume Tire Changer with Helper Arm

Rugged, Extra Large Chassis
Hand Operated Double-acting bead breaker cylinder
Table inflation system
Equipped with 6.9 Gallon air tank in the column & valve tray
Inside clamping 12"-28.5" / Outside clamping 10"-26"• Max. Tire Diameter: 52"
Max. Tire Width: 16"

Scope of Delivery:

tub paste w/ brush
(4) clamp protectors
bead breaker blade protector
tool protection kit, bead lever
plastic mount/demount headSite
Requirements: 110v, 115-145 psi air supply, 115-145 psi air supply

Specifications

Specifications:

Turntable Speed : Variable 0-14 RPM
External Clamping : 10"-26"
Internal Clamping : 12"-28"
Max Torque : 885 ft lbs.
Max Tire Diameter : 52"
Max Tire Width : 16"
Max Bead Breaker Opening : 2"-18"
Bead Breaker Power : 6,745 lbs
Power Supply : 2HP / 110V / 1 Phase / 60hz
