| Product Specifications | |

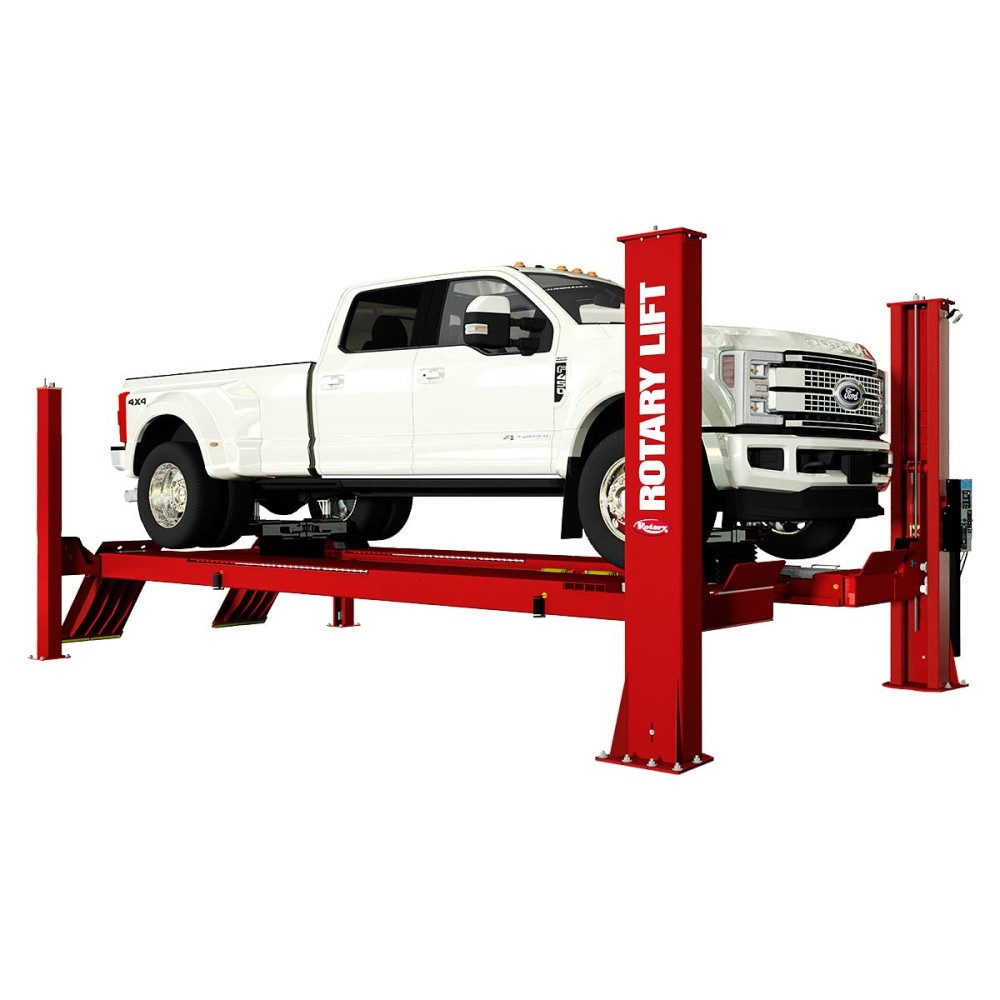

| Specifications | ARO22N100ZPÂ |
| Max. Wheelbase | 194" |
| Max. Two Wheel Alignment | 179" |
| Min/Max 4 Wheel Alignment | 63" - 165" |
| Rise* / Floor to top of runway | 74" |
| Length Overall | 272 3/4" |
| Width Overall | 143 7/8" |
| Height Overall | 107 3/8" |
| Length Between Columns | 119 3/4" |
| Width of Runways | 26" |
| Height of Runways | 8 5/16" |
| Width Between Runways (min./max) | 40" |
| Lift Capacity | 22,000 lbs. |
| Motor | 4 HP / 208 - 230V |
| Voltage Single Phase* | 208V-230V |
| Ramp Length | 40 3/16" |
| Time of Full Rise | 115 seconds |
| Min. Bay Size | 15' x 27' |
| *Rise measures floor to top of runway at full stroke. Lift Colors are Blue and Red | |
Specifications
Capacity 22000
Design Four-Post
Type Open-Front
Type Heavy-Duty
Service Type Alignment
Wheelbase 194''
Colors Red
Colors Blue
Country of Origin USA
