Norco 79324G: 6000 lb. Rolling Bridge Jack

Product Description

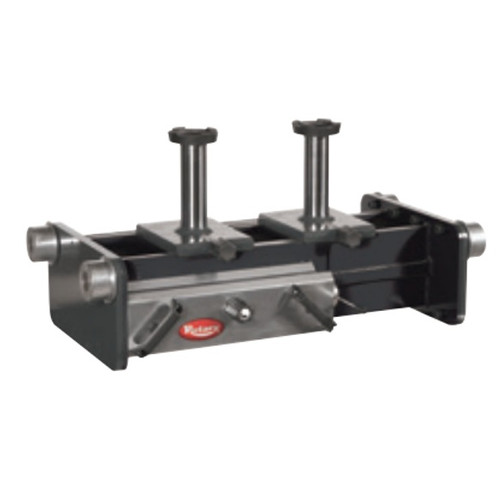

NORCO 79324G: 6,000 lb. Air / Hydraulic Rolling Bridge Jack

SKU: NORCO79324G

Used in quick lube pit applications or in conjunction with above ground lifts. The bridge straddles the lift rails and raises the vehicle's tires off the rails for wheel alignment, brake, tire and suspension work.

• Push button air/hydraulic pump provides safe, quick lifting up to 9.
• The lifting pads safely support the vehicle on the bridgeand the adjustable lift arms span up to 62-1/2".
• Universal mounting brackets adjust to a lift rail opening of 46-1/2.
• Flat-end and hook-end adapter brackets are equipped with spring-loaded roller bearings for smooth maneuverability of bridge on lift rails. These brackets are sold separately.
• Mechanical stop prevents accidental lowering of bridge.
• Lowering is accomplished with one hand on the release lever and the other hand releasing the mechanical stop.
• Equipped with rubber faced saddle for differential lifting.
• Included lift adapters:(2) 3-1/2 Adapters, (2) 5 Adapters, and (2) Padded Saddles w/ Extension Screws

NOTE: To achieve maximum lifting capacity, the lifting surface must be raised at least 3.25 higher than its lowest point.

NOTE: Adapter bracket kits must be ordered separately to adapt the universal mounting brackets to the above ground lift's rails. The majority of applications will require model 79326D flat-end or model 79327D hook-end adapter kits.

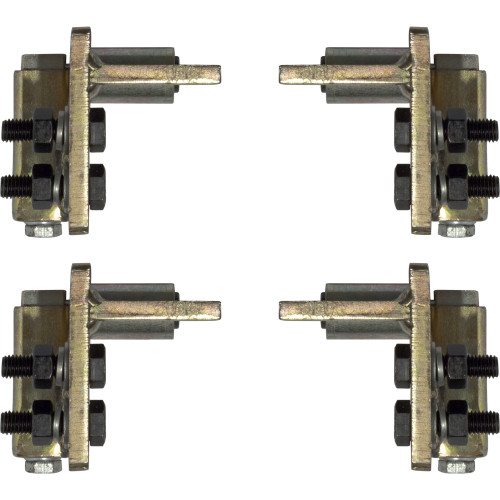

Available mounting adapters:

• 79326D: Flat-End Adapter Bracket Kit
• 79327D: Hook-End Adapter Bracket Kit
