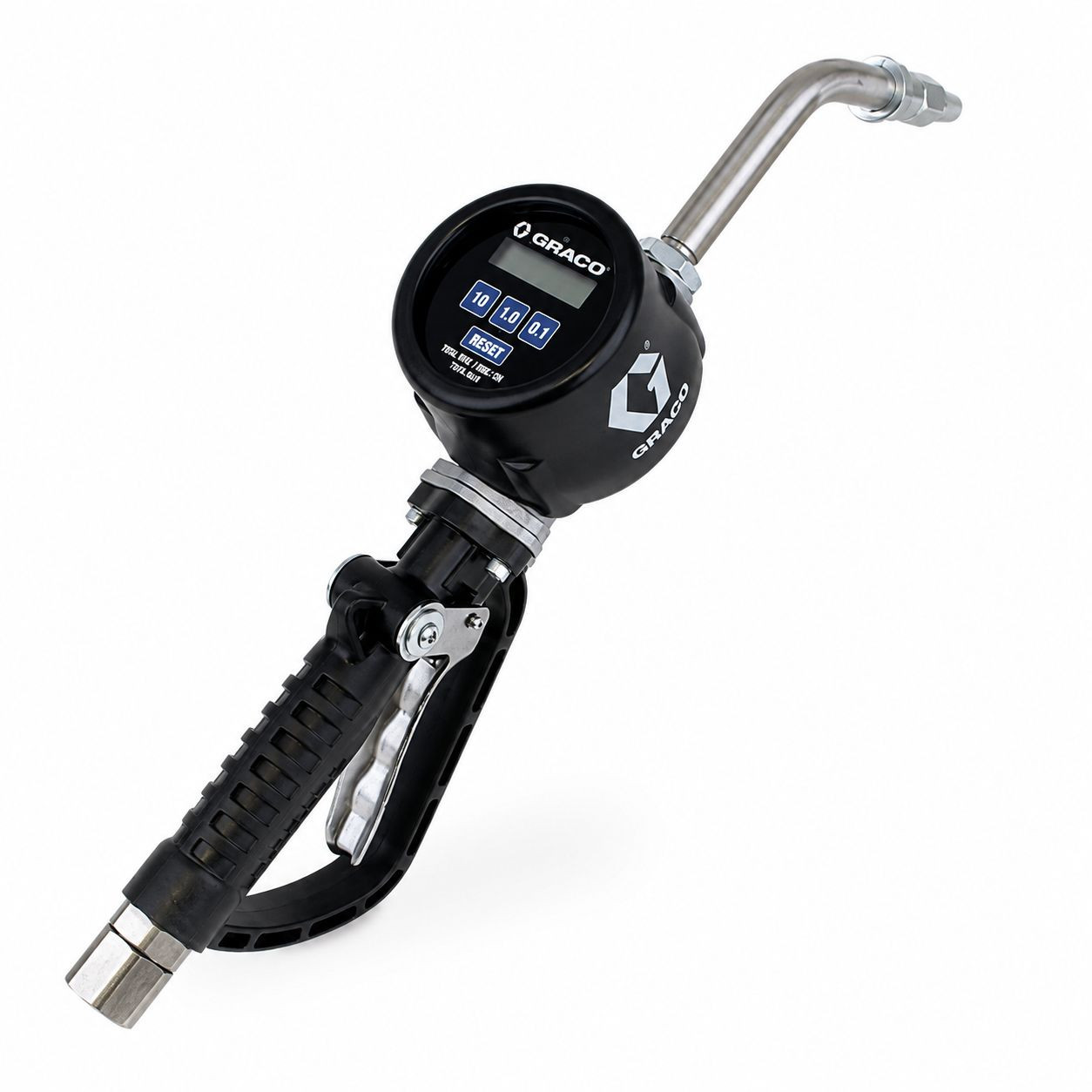

Use Graco’s PM8 and PM20 electronic preset meters to dispense fluids quickly, reliably and accurately to vehicles, trucks, yellow iron machines and more in the most challenging, extreme environments.
| Calibration Type | Factory Calibrated |
|---|---|
| Dispense Type | Preset |
| Display Type | Electronic |
| Extension Type | Rigid |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| Includes | Nozzle, Extension |
| Inlet Size (cm) | 1.27 |
| Inlet Size (in) | 1/2 |
| Inlet Size (mm) | 12.7 |
| IP Rating | 69K |
| Maximum Flow Rate (cc/min) | 30283 |
| Maximum Flow Rate (L/min) | 30.3 |
| Maximum Flow Rate (cc/sec) | 505 |
| Maximum Operating Temperature (°C) | 52 |
| Maximum Operating Temperature (°F) | 125 |
| Maximum Recorded Dispense | 19999 |
| Maximum Storage Temperature (°F) | 185 |
| Maximum Storage Temperature (°C) | 85 |
| Maximum Working Pressure (psi) | 200 |
| Maximum Working Pressure (kPa) | 1380 |
| Maximum Working Pressure (bar) | 13.8 |
| Meter Accuracy (%) | ±0.5 |
| Meter Pressure Loss (psi) | 60 PSI at 6 GPM |
| Meter Pressure Loss (bar) | 4.1 Bar at 6 GPM |
| Overall Height (cm) | 18.3 |
| Overall Height (in) | 7.2 |
| Overall Height (mm) | 183 |
| Overall Length (cm) | 54.4 |
| Overall Length (in) | 21.4 |
| Overall Length (mm) | 544 |
| Overall Width (cm) | 10.4 |
| Overall Width (in) | 4.1 |
| Overall Width (mm) | 103.5 |
| Meter Technology | Oval Gear |
| Metering Gun Weight (lb) | 5.2 |
| Metering Gun Weight (kg) | 2.4 |
| Minimum Flow Rate (GPM) | 0.25 |
| Warranty | 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts |
| Trigger Protection Type | Lock Off Button |
| Trigger Lock | Locking |
| Series | 8 |
| Outlet Size (cm) | 1.905 |
| Outlet Size (mm) | 19.05 |
| Outlet Size (in) | 3/4 |
| Minimum Operating Temperature (°F) | -20 |
| Minimum Operating Temperature (°C) | -29 |
| Valve Type | Metered |
| Maximum Working Pressure (MPa) | 1.4 |
| Maximum Totalizer | 19999 |
| Meter Accuracy | ±0.5 |
Specifications
GPM NR
Inlet Size 1/2 in.
Extension Type Rigid
Series PM
Type Preset
Fluid Antifreeze
