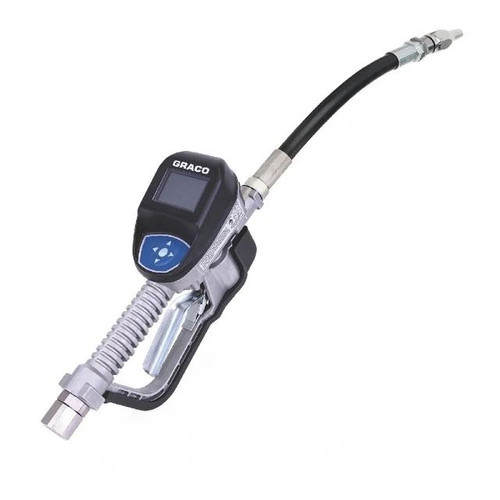

Graco dispense meters designed for our Pulse® fluid management system are durable and easy to use. Everything you need is at your fingertips. Enter PINs and other data using the intuitive display.
| Display Type | LCD |
|---|---|
| Extension Type | Bare |
| Fluid Inlet Thread Gender | Female |
| Maximum Operating Temperature (°C) | 70 |
| Meter Accuracy (%) | ±0.5 |
| Maximum Working Pressure (psi) | 1500 |
| Maximum Working Pressure (MPa) | 10.3 |
| Maximum Working Pressure (kPa) | 10340 |
| Maximum Working Pressure (bar) | 103.4 |
| Maximum Operating Temperature (°F) | 158 |
| Meter Technology | Oval Gear |
| Metering Gun Weight (kg) | 2.4 |
| Metering Gun Weight (lb) | 5.3 |
| Overall Length (ft) | 1 |
| Overall Length (in) | 13 |
| Overall Length (m) | 0.33 |
| Overall Length (mm) | 330 |
| Overall Width (cm) | 9.5 |
| Overall Width (in) | 3.75 |
| Minimum Operating Temperature (°C) | -16 |
| Product Type | Meter |
| Minimum Operating Temperature (°F) | 4 |
| Model | Pulse |
| Overall Length (cm) | 33 |
| Minimum Flow Rate (GPM) | 0.25 |
| Minimum Flow Rate (L/min) | 0.9 |
| Trigger Lock | Locking |
| Warranty | Five Years Structural, 3 Years Electronics, 1 Year Wear Components |
| Overall Width (mm) | 95 |
