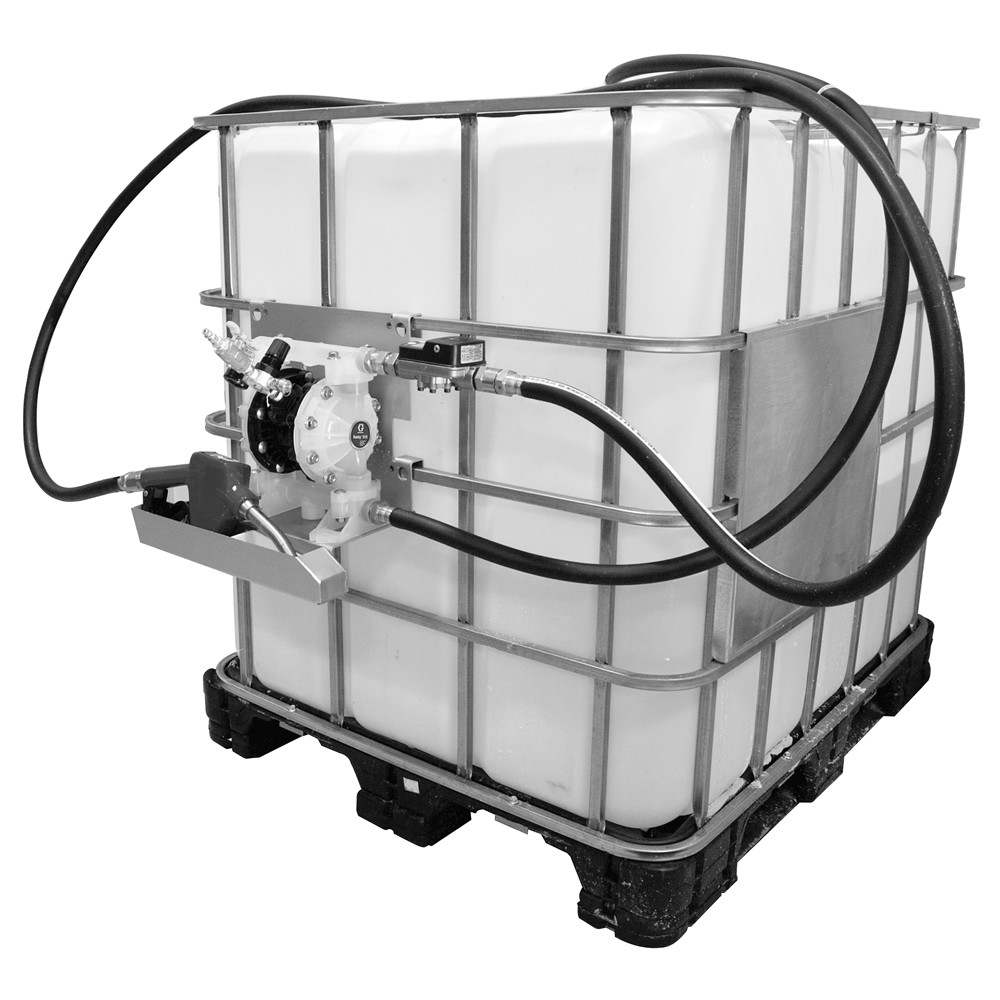

Graco 24F531 : SD DEF Pump Package, 6' Hose, Automatic Nozzle w/ Meter

Product Description

Graco 24F531: SD DEF Pump Package, 6' Hose, Automatic Nozzle w/ Meter

SKU: 24F531

Key Product Features:

• Complete SD Blue DEF dispensing package: Combines the pump, suction hose, meter kit, automatic nozzle and connection components into one professional system for transferring DEF from compatible bulk totes.
• Husky 515 AODD pump: Uses Graco’s air-operated double-diaphragm pump technology to provide reliable fluid transfer with strong suction and lifting performance.
• Up to 15 GPM flow rate: Capable of transferring Diesel Exhaust Fluid at rates up to 15 gallons per minute, or approximately 57 liters per minute, to reduce vehicle and equipment servicing time.
• Low-pressure pneumatic operation: The pump can operate with approximately 30 to 50 psi of compressed air, allowing strong transfer performance without requiring a high-pressure air supply.
• Air-powered transfer system: Does not require a dedicated electrical motor, making it a practical choice for service facilities with an existing compressed-air system.
• Six-foot suction hose: Includes a 6-foot, or 1.83-meter, suction hose for drawing DEF from a compatible intermediate bulk container or tote.
• Automatic dispensing nozzle: Automatically stops DEF delivery when the receiving reservoir reaches the proper fill level, helping reduce overfilling, spills and fluid waste.
• Metered DEF dispensing: The included SD meter kit allows operators to monitor the quantity of DEF transferred for improved fluid tracking and inventory accountability.
• Tote-mounted configuration: Designed for installation on a compatible DEF tote, creating a centralized bulk dispensing point without requiring a separate floor-mounted transfer station.
• 3/4-inch BSPP connections: Uses 3/4-inch BSPP fluid inlet and outlet fittings for integration with compatible DEF hoses, couplers and dispensing components.
• Maximum fluid pressure of 50 psi: Supports controlled commercial DEF transfer at fluid pressures up to approximately 50 psi, or 3.4 bar.
• Closed-system coupler components: The included coupler kit supports cleaner tote connection and helps reduce the opportunity for dirt, debris and incompatible fluids to enter the DEF supply.
• Designed to maintain DEF integrity: Fluid-contact components are selected for Diesel Exhaust Fluid compatibility, helping prevent chemical contamination that could damage Selective Catalytic Reduction systems.
• Strong suction and lift capability: The pneumatic diaphragm design supports efficient fluid movement from totes, drums and tanks, including applications requiring greater suction performance or longer distribution runs.
• Modular air-valve design: Graco’s Husky pump platform is engineered for dependable cycling, reduced pulsation and easier maintenance in demanding commercial fluid-handling environments.
• Productivity-focused performance: High output helps technicians refill vehicle DEF reservoirs quickly, reducing service-bay delays and keeping fleet equipment productive.
• Durable commercial construction: Developed for regular use in dealerships, fleet facilities, truck shops and industrial maintenance departments where dependable fluid dispensing is essential.
• Suitable for small and large facilities: The SD Series can support applications ranging from smaller garages to high-volume dealerships and fleet service operations.
• Ideal for IBC tote dispensing: Provides a practical way to transition from individual DEF jugs and drums to cleaner, more efficient bulk tote storage.
• Reduces manual container handling: Bulk dispensing minimizes repetitive lifting, opening and pouring of smaller DEF containers while helping reduce packaging waste and shop clutter.
• Typical applications: Suitable for automotive dealerships, commercial truck shops, fleet garages, transit maintenance facilities, agricultural operations, construction-equipment service centers and industrial workshops.
• Product specifications:
  • Product type: SD Blue pneumatic DEF tote pump package
  • Compatible fluid: Diesel Exhaust Fluid
  • Pump type: Husky 515 air-operated double-diaphragm pump
  • Maximum flow rate: Up to 15 GPM / 57 LPM
  • Typical operating air pressure: 30–50 psi
  • Maximum fluid pressure: 50 psi / 3.4 bar
  • Suction hose length: 6 feet / 1.83 meters
  • Nozzle: Automatic shut-off DEF nozzle
  • Meter: SD meter kit included
  • Fitting size: 3/4-inch BSPP
  • Mounting configuration: Tote mount
  • Manufacturer part number: 24F531
• Compressed-air requirement: A properly regulated and filtered shop air supply is required for pump operation. Air-system capacity and installation requirements should be confirmed before setup.
• DEF-only equipment: The package should remain dedicated exclusively to Diesel Exhaust Fluid. Diesel fuel, gasoline, oil, coolant, water and other fluids can contaminate the system and damage vehicle emission-control components.
