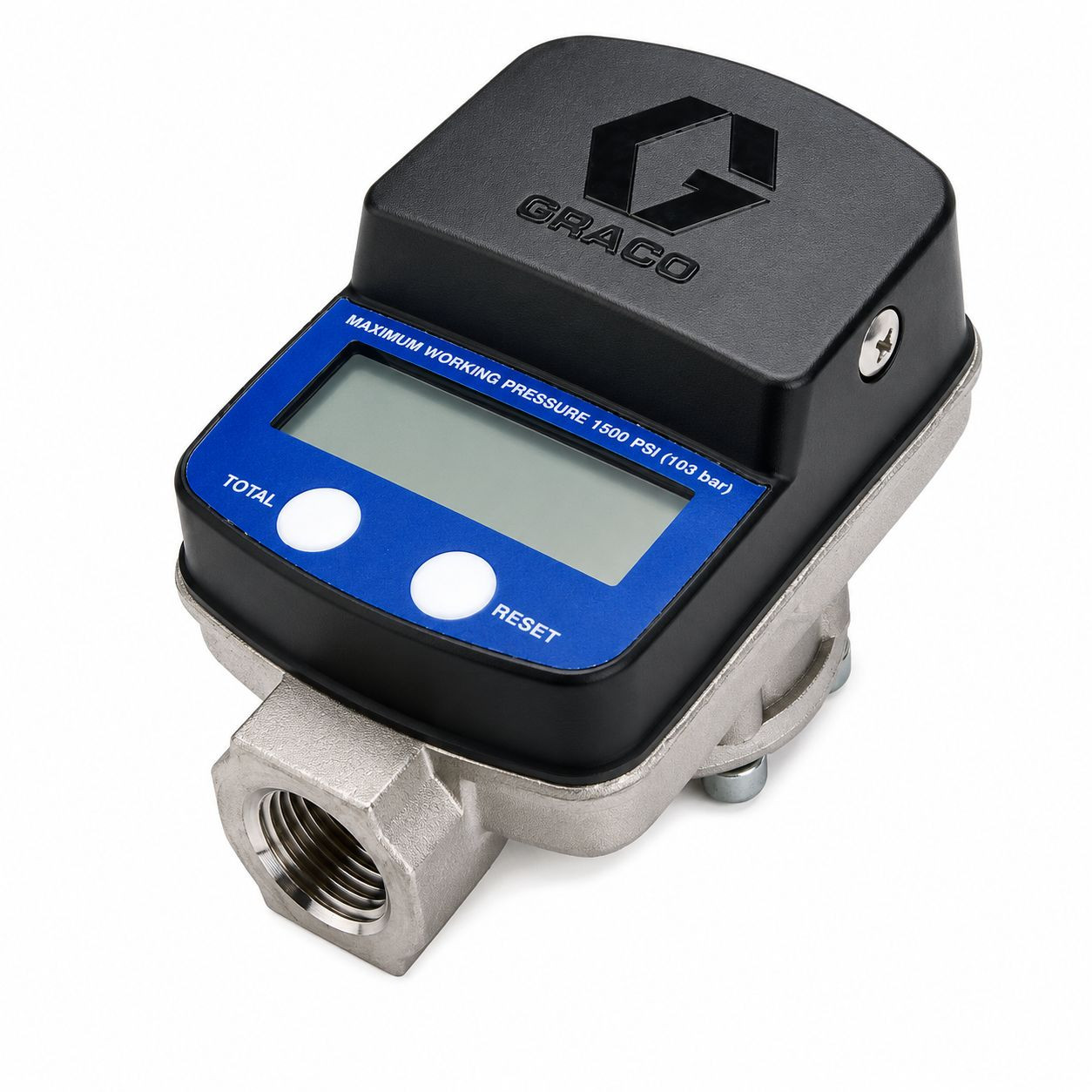

These durable, easy-to-use in-line electronic dispense meters are designed with automotive dealerships, fast lube centers, and service shops in mind.
Â
Typical applications include automotive, fast lube centers, service shops, heavy-duty dealerships, fleet service facilities, in-plant and mining.
| Battery Chemistry | Alkaline |
|---|---|
| Battery Size | AA |
| For Use With | petroleum-based and synthetic oils and antifreeze |
| Inlet Size (cm) | 1.27 |
| Inlet Size (in) | 0.5 |
| Inlet Size (mm) | 12.7 |
| Maximum Flow Rate (L/min) | 57 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Maximum Working Pressure (bar) | 105 |
| Maximum Working Pressure (kPa) | 10500 |
| Maximum Working Pressure (psi) | 1500 |
| Meter Accuracy (%) | ±0.5 |
| Meter Repeatability (%) | ±0.15 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Outlet Size (in) | 0.5 |
| Weight (kg) | 0.82 |
| Maximum Working Pressure (MPa) | 10.5 |
| Model | SDI15 |
| pulse_output | No |
