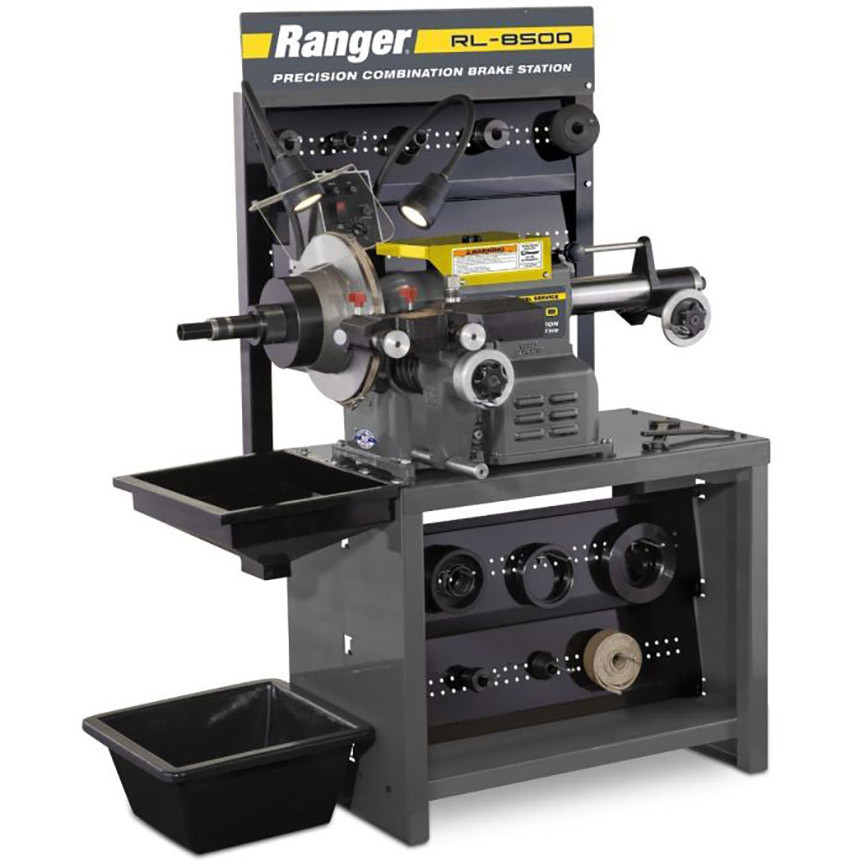

BendPak RANGER RL-8500 : Combination Disc-Drum Brake Lathe w-Bench & Std Tooling

Name: BendPak RANGER RL-8500 : Combination Disc-Drum Brake Lathe w-Bench & Std Tooling
Brand: BendPak
SKU: 5150066
Price: 11395 USD
Availability: InStock

BendPak

$11,395.00

Write a Review

SKU:: 5150066
Type:: Brake Lathe

Product Description

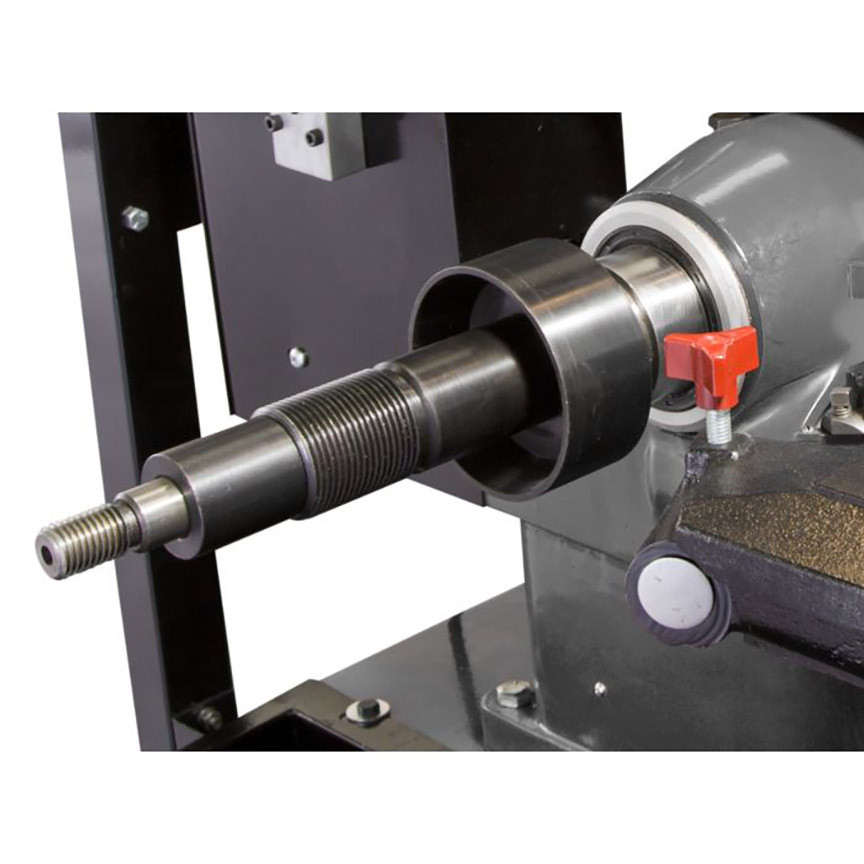

Quick-Change Adapter-Plus system with built-in springs eliminates the need for conventional bell clamps and cones
Works with hubless drums, rotors (center hole sized 2-5/32" – 4") and composite rotors (center hole sized 4" – 6.25")
The RL-8500 is equipped with features that help increase your service capability, like precision twin cutter tools and a quick drum-to-rotor changeover
Infinitely variable spindle and cross feed speed settings allow for quick rough and precision finish cuts
Simple ergonomic controls are designed for minimal operator movement
Legendary control makes unit easy to learn and master
The RL-8500 maintains accuracy year after year thanks to ruggedly constructed components like a hardened, precision ground spindle that resists grooving and makes boots a thing of the past
Massive tapered spindle bearings offer superior weight support during rotation
Exclusive "splash-lube" oil-feed system supplies a constant flow of oil to the bearings, making sure they provide years of trouble-free service
Serpentine belts provide a faster, quieter operation, reducing chatter and vibration
An independent cross feed motor eliminates the need for plastic or bronze shear gear that are expensive and time-consuming to replace
A convenient top storage tray means your popular adapters and tools are kept within short reach
Separate motors on the drum and rotor feed help maximize the main motor's efficiency
Our deluxe standard adapter package includes a Quick-Change hubless adapter system that makes mounting rotors and drums quick and easy

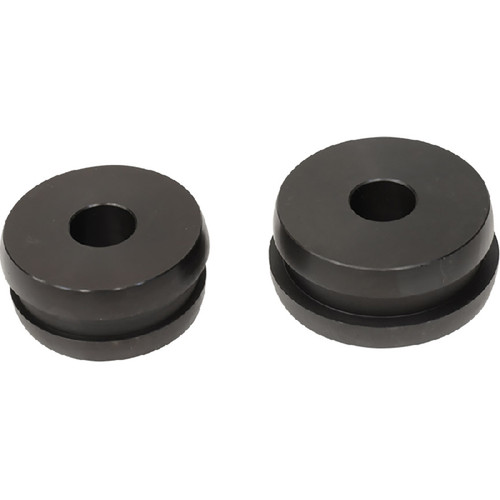

A variety of adapters let you machine all standard and composite rotors for foreign and domestic cars and light trucks

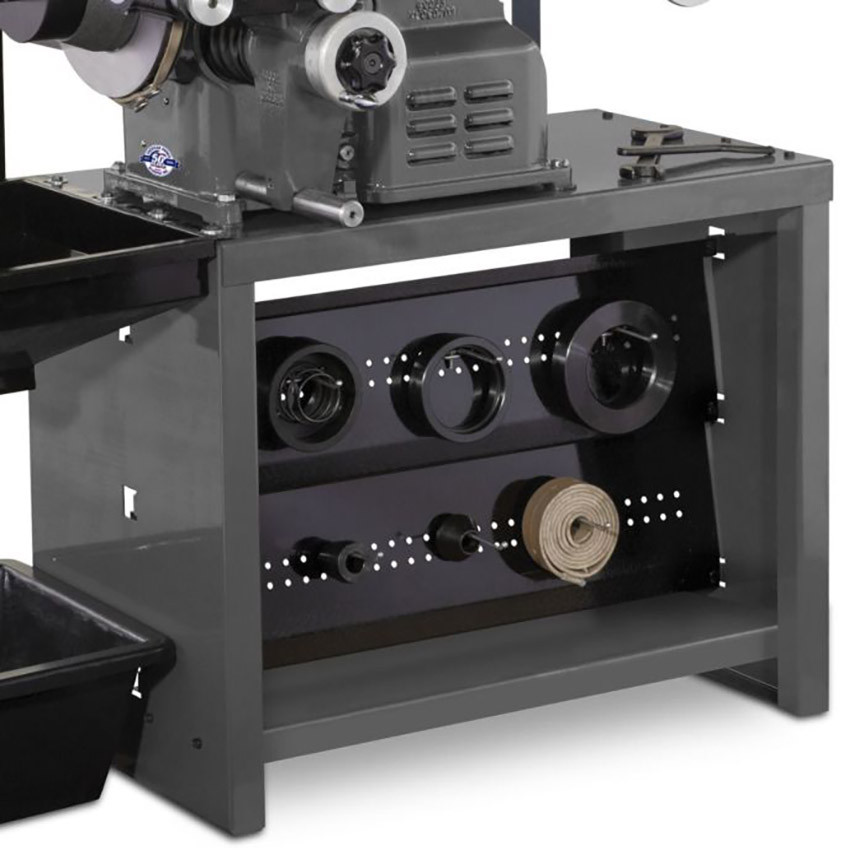

A 450-lb. cast iron body and a solid work bench reduce transient vibrations, ensuring a smooth uninterrupted surface finish with each pass
Easily change arbor speeds in seconds: choose 150 or 200 rpm, depending on the job
Positive rake cutter tip angle provides a one-pass finish virtually every time, allowing you to complete your work faster than inferior multi-pass lathes

Specifications

Motor Drive Unit

115 – 230 VAC, 50-60 hz, 1 Ph, 20 amp

Max Rotor Thickness

2.5” (64 mm)

Max Rotor Diameter

17” (432 mm)

Brake Drum Diameter

6” – 28” (152 mm – 711 mm)

Max Load with Standard 1” Arbor

150 lbs. (68 kg)

Max Load with Optional 1-7/8” Truck Arbor

250 lbs. (113 kg)

Spindle Travel

6-7/8” (175 mm)

Spindle Speed

150 rpm – 200 rpm

Shipping Weight w/ Bench & Tools

678 lbs. (307 kg)

Shipping Dimensions

45'' x 38'' x 29'' (1,143 mm x 965 mm x 736 mm)

Specifications

Type Brake Lathe
